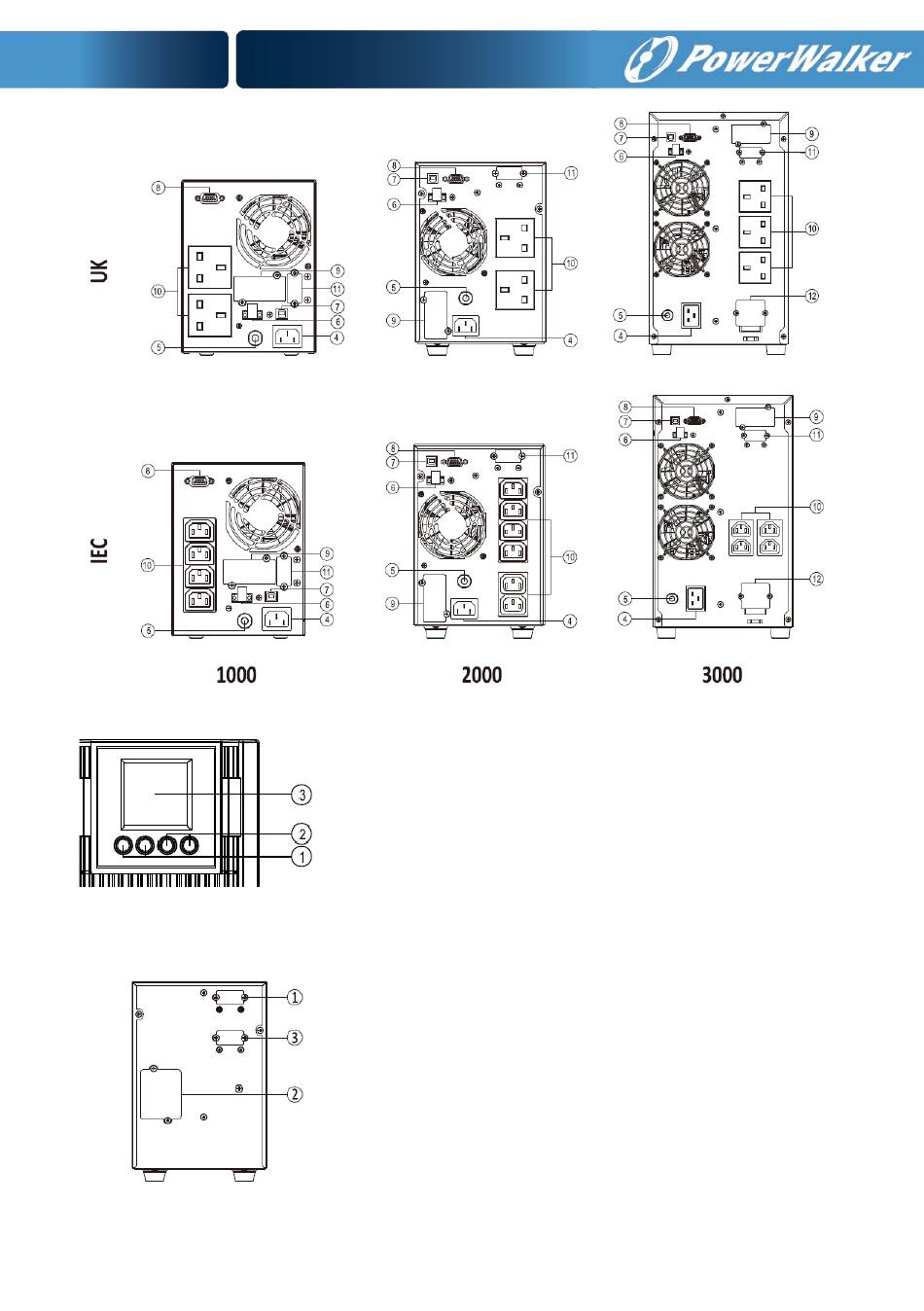

ENGLISH
Battery Pack connection
1.
Power On/Off button
2.
Function buttons
3.
Display
4.
AC Input
5.
Input Circuit Breaker
1.
Input connector
2.
Fuse Board
3.
Output connector
Battery Packs are connected in parallel. Grounding
wire must be fixed to the housing.
13
6.
EPO (Emergency Power
Off) Connector
7.
USB port
8.
Serial Port
9.
Extension slot
10. Output sockets
11. Battery Pack connector
12. Output Terminal Block
