03
Beginning Assembly

3.4 Miscellaneous Box

Locate the Miscellaneous Box. Locate the 14 Swivel Levelers and 13 10 -24 3/8 in. Locking
Button Cap Screws. These will be needed to assemble the Rail and Rail Beam in preparation
for installing the Head of the machine.

3.5 Swivel Levelers

Tools Needed
• ½ in. Wrench
The Dragon A400 Rail Support Legs are mounted to the floor of the shipping crate
using the Floor Brackets. When assembling the machine, the Floor Brackets should be
left in place. The Installer will use the Swivel Levelers to true the machine then bolt it
to the floor using the Floor Brackets.
Remove six of the Swivel Levelers from their packaging. Thread the jam nut to the bottom of
the Leveler near the adjustment hex just above the swiveling foot. Enlisting help to lift the Rear
Tail Section off the floor, thread a Swivel
Leveler into the threaded hole at the bottom
of each leg on the Rear Tail Section Rail
Supports. Leave about an inch of thread
between the leg and the adjustment hex.
Using a ½ in. socket and ratchet or ½ in.
wrench, remove the Rail Support from the
crate that was nearest the Rear Tail Section.
Install a Swivel Leveler into the threaded
hole in the bottom of each leg. Leave about
an inch of thread between the leg and the
adjustment hex.
18
Hardware Needed
• Swivel Levelers
Assembly Manual

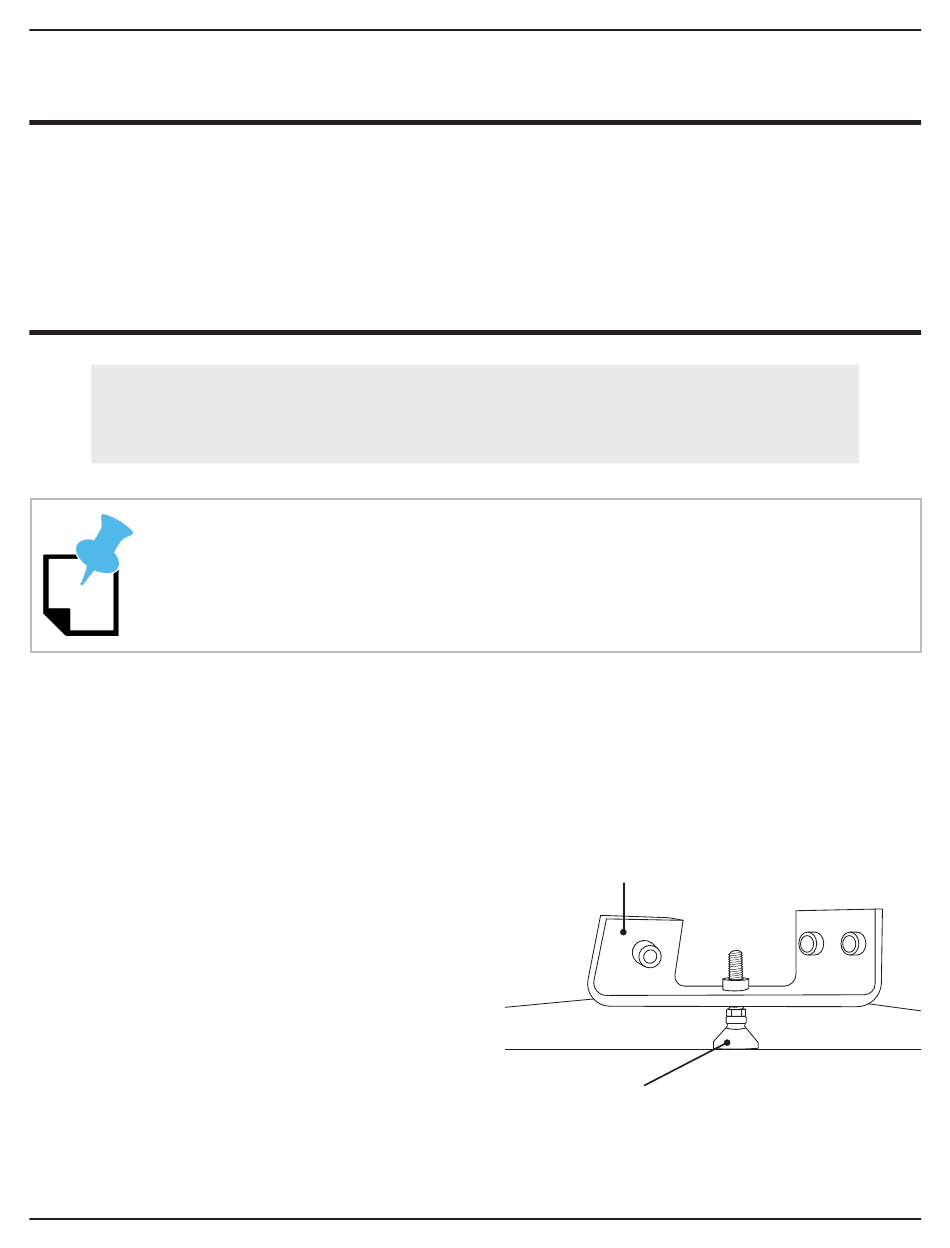

Leg Bracket
Swivel
Leveler
