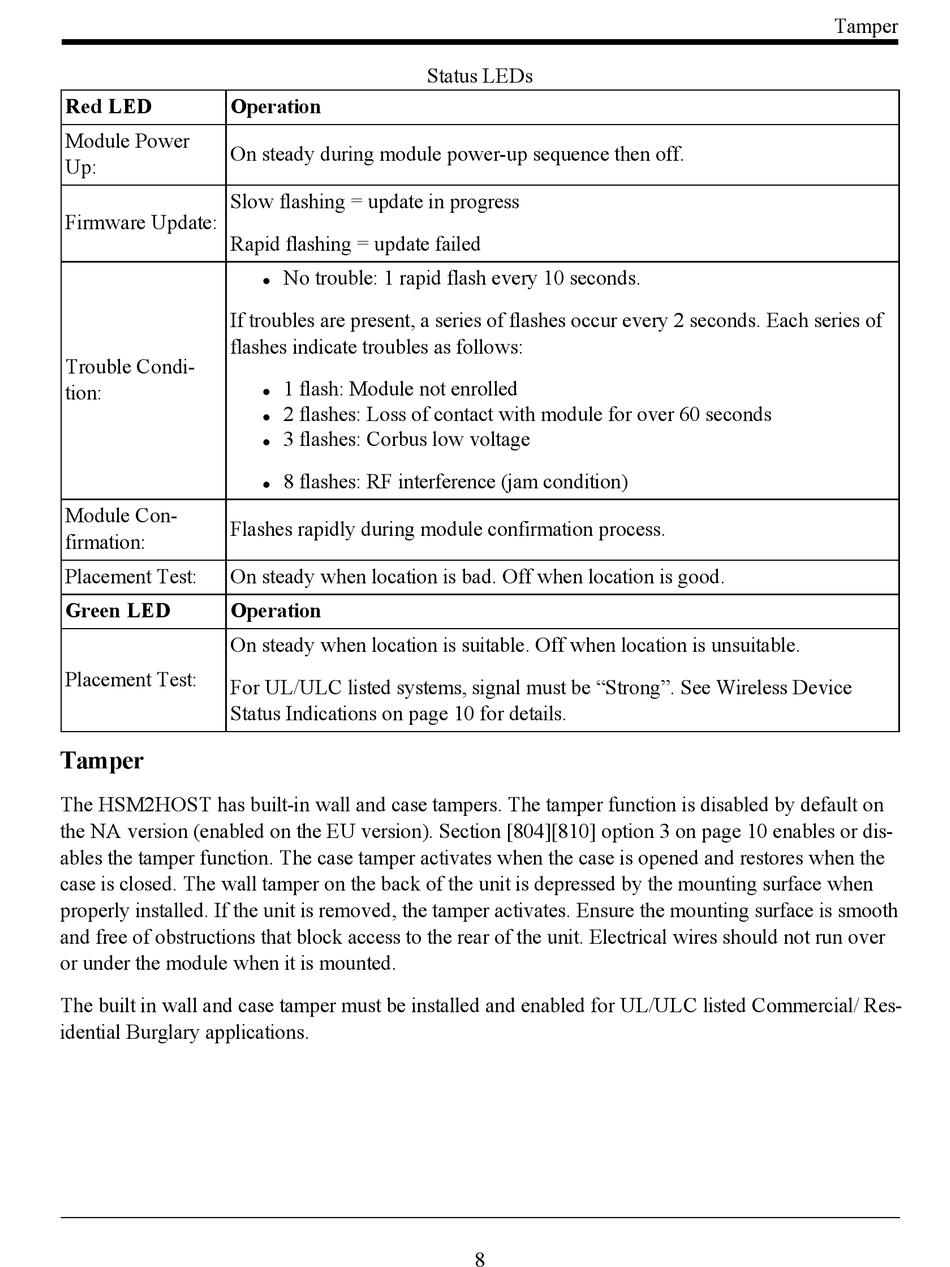

Tamper - Johnson Controls Tyco HSM2HOST Installation Manual

Red LED Operation
Module Power
On steady during module power-up sequence then off.
Up:
Slow flashing = update in progress
Firmware Update:
Rapid flashing = update failed
If troubles are present, a series of flashes occur every 2 seconds. Each series of
flashes indicate troubles as follows:
Trouble Condi-
tion:
Module Con-
Flashes rapidly during module confirmation process.
firmation:
Placement Test: On steady when location is bad. Off when location is good.
Green LED Operation
On steady when location is suitable. Off when location is unsuitable.
Placement Test:
For UL/ULC listed systems, signal must be "Strong". See Wireless Device
Status Indications on page 10 for details.

Tamper

The HSM2HOST has built-in wall and case tampers. The tamper function is disabled by default on
the NA version (enabled on the EU version). Section [804][810] option 3 on page 10 enables or dis-
ables the tamper function. The case tamper activates when the case is opened and restores when the
case is closed. The wall tamper on the back of the unit is depressed by the mounting surface when
properly installed. If the unit is removed, the tamper activates. Ensure the mounting surface is smooth
and free of obstructions that block access to the rear of the unit. Electrical wires should not run over
or under the module when it is mounted.
The built in wall and case tamper must be installed and enabled for UL/ULC listed Commercial/ Res-
idential Burglary applications.
Status LEDs
No trouble: 1 rapid flash every 10 seconds.
l
1 flash: Module not enrolled
l
2 flashes: Loss of contact with module for over 60 seconds
l
3 flashes: Corbus low voltage
l
8 flashes: RF interference (jam condition)
l
8
