Johnson Controls DBS-TP10A Installation Manual

Installation Manual for Drain Adaptor
Model
This drain adaptor is for the drain pipe connection in order to enable use of the outdoor unit bottom base as
a drain pan.
Install it as follows.
IMPORTANT NOTICE:
● Read and understand this manual before using this drain adaptor.
● Perform the test run after installation to check for abnormalities.
● Forward this information to the building owner and request that they maintain all the equipment manuals.
● Signal words are used to identify levels of hazard seriousness.
Defi nitions for identifying hazard levels are provided below with their respective signal words.

1. Applicable Outdoor Unit

Applicable Outdoor Unit
Top Flow Type
NOTE:
The applicable outdoor unit may be different depending on the product series. Be sure to confi rm with
the product catalog before installation.

2. Before Installation

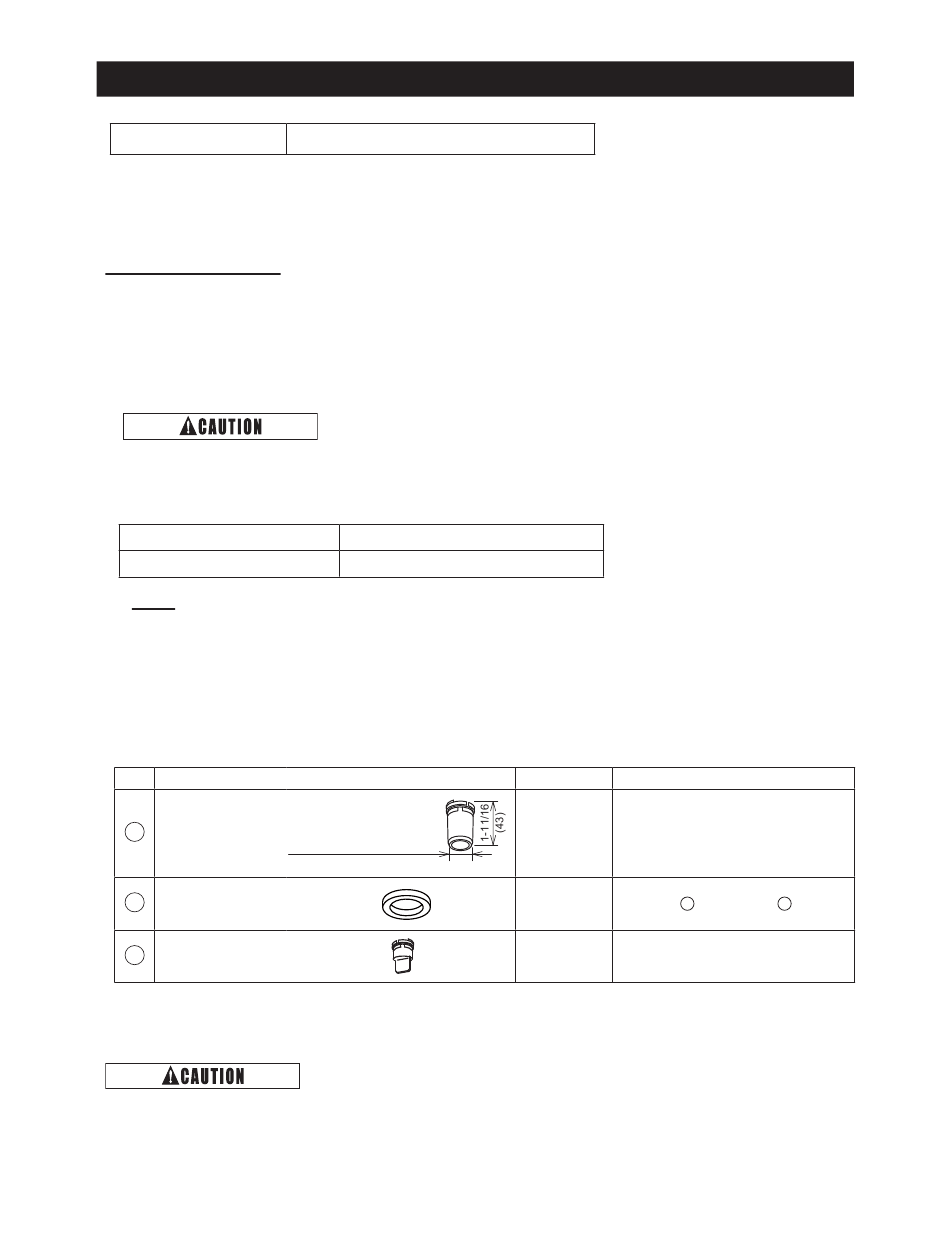

Check that all the following accessories are packed with the unit before installation.
No.
Drain Adaptor
1
(VP20 Equivalent)
2
Rubber Cap
3 Drain Cap

3. Installation Work

Place the outdoor unit on a fl at foundation or block and secure it at least 3-15/16 inch (100mm) higher than
the ground. For smooth drainage, install the outdoor unit with a slight incline on the drainage side (rear
side).
DBS-TP10A
: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
Capacity
72,000 to 120,000 Btu/h
Accessory
Outer Diameter φ31/32 (φ25)
(Inner Diameter φ25/32 (φ20))
Qty.
2 Connecting for Drain Piping
4 Fixing for
2 Plug for Drain Hole
1
Unit: inch (mm)
Remarks
Adaptor and Cap
1 3
