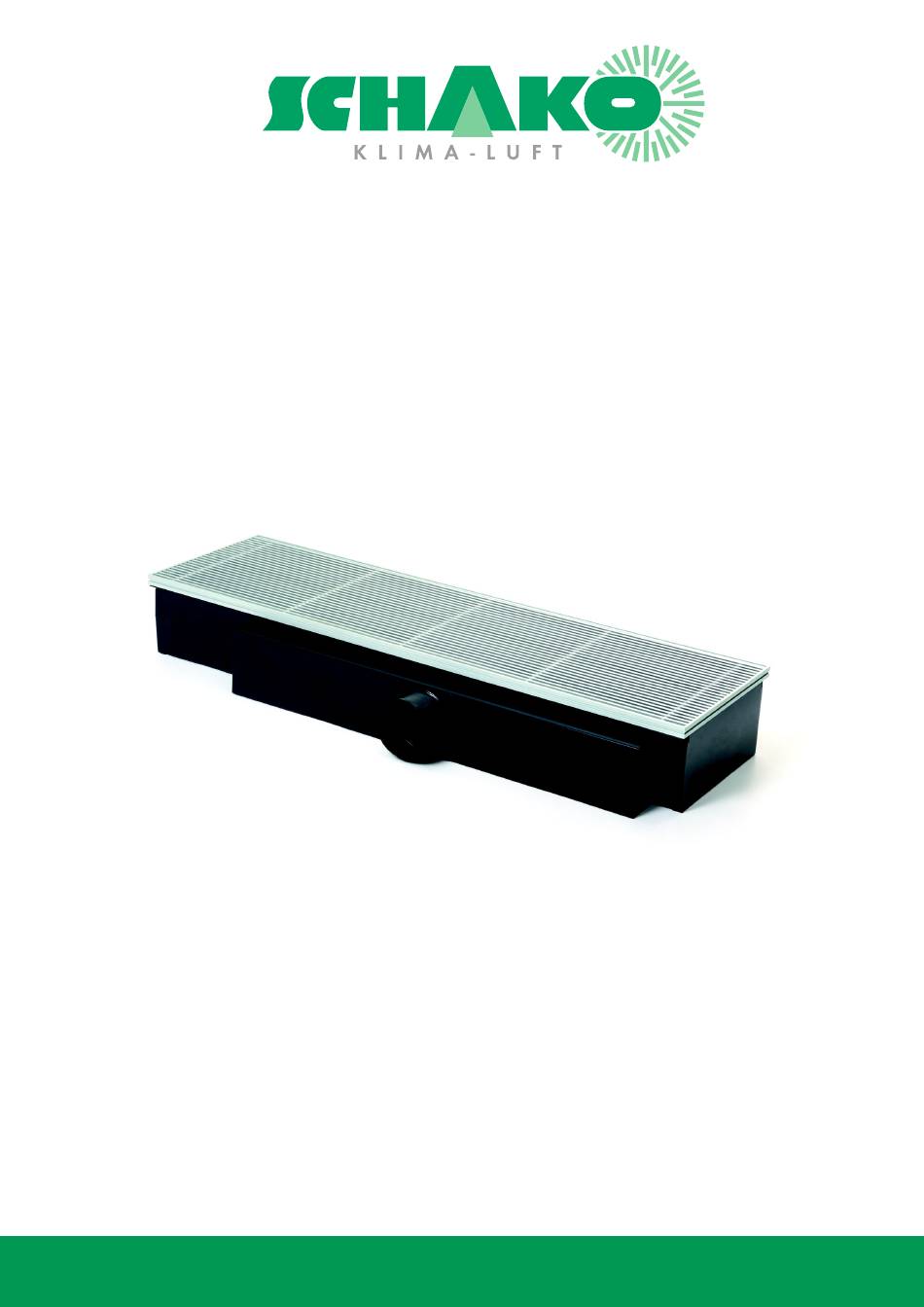

- Page 1 Installation, Mounting and Maintenance DISA-B DISA-B Ferdinand Schad KG Steigstraße 25-27 D-78600 Kolbingen Telephone +49 (0) 74 63 - 980 - 0 Fax +49 (0) 74 63 - 980 - 200 info@schako.de www.schako.de...
-
Page 2: Table Of Contents
Installation, Mounting and Maintenance DISA-B Contents Safety instructions ..........................3 General information ................................... 3 Warranty ............................3 Recycling ............................3 General information ..........................4 Identification of the delivered model ............................4 Function ....................................4 Installation and commissioning ........................ 5 Operating conditions .................................. 5 Material reception .................................. -
Page 3: Safety Instructions
- Do not change any control or safety elements without prior approval by the manufacturer or the local sales office. SCHAKO shall not give any warranty for damage resulting from: - Improper use caused by ignoring the instructions given in this manual - Non-observance of the operating conditions of the device. -
Page 4: General Information
Identification of the delivered model ondary air from the room (2), which is cooled or heated via the The ceiling induction diffuser type DISA-B is available in four dif- register (4). ferent nozzle configurations: B, C, D and E. The series is availa-... -
Page 5: Installation And Commissioning
The unit shall only be held in position or moved by holding on to the housing. The weight must not rest on the water connections. SCHAKO cannot be held liable for damage to the Model / Modelo / Modell unit caused by improper handling or handling not DISA-B-HT-PA-B-1000-1150-M-WS1-AS1-123 mentioned here, loading or unloading. -
Page 6: Installation
Installation, Mounting and Maintenance DISA-B Installation The floor induction diffuser type Maintenance DISA-B is partic- ularly suitable for horizontal installation in false floors. The de- vices must not be installed in places with extreme moisture (e.g. laundries or swimming pools), aggressive media, with high dust formation, outdoors or in places subject to explosion hazards. -
Page 7: Connecting The Air Ducts
- Mounting temperature controls on walls toward the out- In order to achieve a uniform cooling capacity, the doors should be avoided. floor induction diffusers type Maintenance DISA-B should be connected to the cold water distribution system in parallel. Prior to drilling, make sure that... -
Page 8: Checks
Installation, Mounting and Maintenance DISA-B Checks Connection covers Prior to commissioning, the following items must be checked or - Remove the screws unscrewing them with an Allen guaranteed: wrench - Hydraulic connections were tightened properly and exhib- - Remove the covers of the hydraulic connections it no leaks. -
Page 9: Air Ducts And Plenum Box
- Please do not use any scouring agents for cleaning since they may impair or damage the materials of theMainte- nance DISA-B (galvanised steel, aluminium and copper) and the surface coatings (paints and anodised surfaces). - If there are larger differences in distance between the ribs, they must be "aligned". -
Page 10: Checking The Primary Volumetric Flow
Installation, Mounting and Maintenance DISA-B Checking the primary volumetric flow The supplied primary volumetric flow can be simply checked by checking the static pressure with a Pa meter and the measuring tube available from us as accessory. The pressure transducer is in the area of the hydraulic connec- tions. -
Page 11: Troubleshooting
Installation, Mounting and Maintenance DISA-B Nozzle configuration D Nozzle configuration E (Pa.) (Pa.) 0 20 40 60 80 100 Vzu (m 0 20 40 60 80 100 Vzu (m /h] = supply air volume Δ P [Pa] = pressure loss...
