5.3

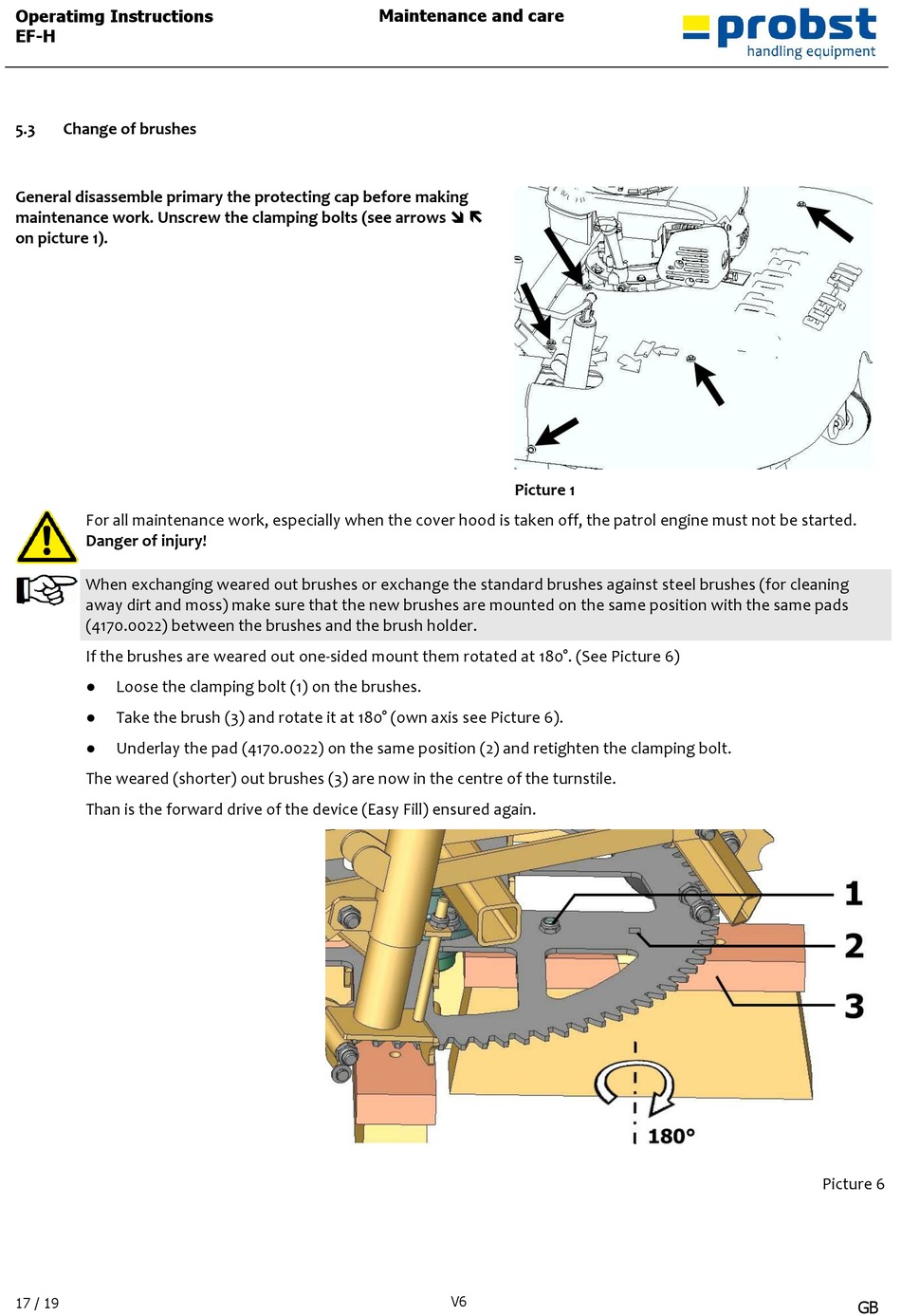

Change of brushes

General disassemble primary the protecting cap before making
maintenance work. Unscrew the clamping bolts (see arrows  
on picture 1).
For all maintenance work, especially when the cover hood is taken off, the patrol engine must not be started.
Danger of injury!
When exchanging weared out brushes or exchange the standard brushes against steel brushes (for cleaning
away dirt and moss) make sure that the new brushes are mounted on the same position with the same pads
(4170.0022) between the brushes and the brush holder.
If the brushes are weared out one-sided mount them rotated at 180°. (See Picture 6)
●
Loose the clamping bolt (1) on the brushes.
●
Take the brush (3) and rotate it at 180° (own axis see Picture 6).
●
Underlay the pad (4170.0022) on the same position (2) and retighten the clamping bolt.
The weared (shorter) out brushes (3) are now in the centre of the turnstile.
Than is the forward drive of the device (Easy Fill) ensured again.
Pos: 28 / 07 Wartung und Pfle ge/ 04 Prüfungspflicht/ Ü_ Prüf ungspflicht @ 0\m od119_2. doc @ 7 095 @
17 / 19
Maintenance and care
Picture 1
V6
Picture 6
