Filmcity MB-7 Assembly Manual

Professional matte box

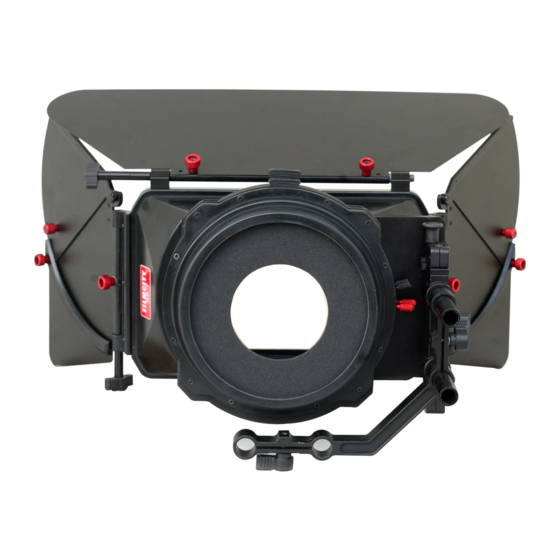

MB-7 Professional Matte Box

(FC-MB-7)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

MB-77 Matte Box

French & Side Flags

Donut Rings

Swing Away

2x Filters Holder

2x Filters Frame

Adpater

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the MB-7 and is the answer not in the manual?

Page 1 MB-7 Professional Matte Box (FC-MB-7) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 MB-7 Matte Box Setup  Insert the Side flags in to the Matte Box Hinge and tighten the screws. Using the same approach, insert the French flag into the (big) slot and secure with the screws.  Remove both knobs from Swing Away Adapter and attach it with Matte Box.
Page 3 YOUR FILMCITY MB-7 MATTE BOX FULLY DRESSED UP AND READY TO GO (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.

Fc-mb-7
