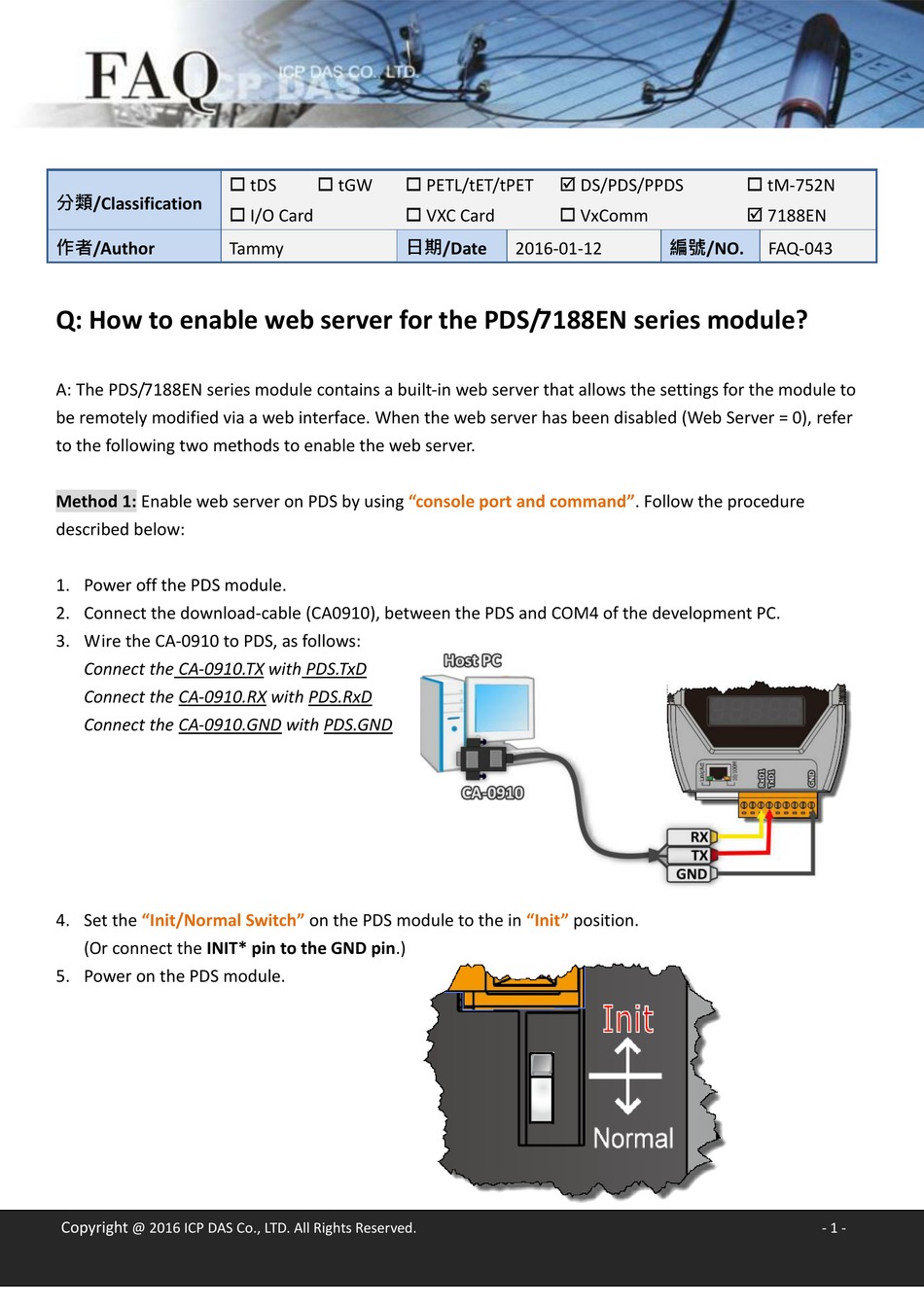

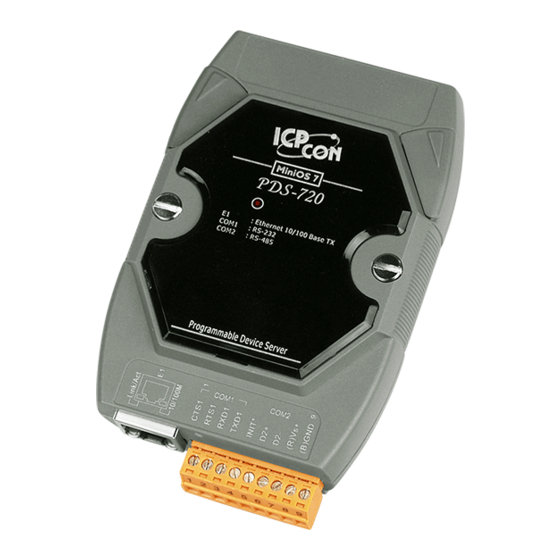

Q: How to enable web server for the PDS/7188EN series module?
A: The PDS/7188EN series module contains a built-in web server that allows the settings for the module to
be remotely modified via a web interface. When the web server has been disabled (Web Server = 0), refer
to the following two methods to enable the web server.
Method 1: Enable web server on PDS by using
described below:
1. Power off the PDS module.
2. Connect the download-cable (CA0910), between the PDS and COM4 of the development PC.
3. Wire the CA-0910 to PDS, as follows:
Connect the CA-0910.TX with PDS.TxD
Connect the CA-0910.RX with PDS.RxD
Connect the CA-0910.GND with PDS.GND
4. Set the
"Init/Normal Switch"
(Or connect the INIT* pin to the GND pin.)
5. Power on the PDS module.
Copyright
@ 2016 ICP DAS Co., LTD. All Rights Reserved.
tGW
PETL/tET/tPET
VXC Card
日期/Date
"console port and
on the PDS module to the in
DS/PDS/PPDS
VxComm
編號/NO.
2016-01-12
command". Follow the procedure
"Init"
position.
tM-752N
7188EN
FAQ-043
- 1 -
