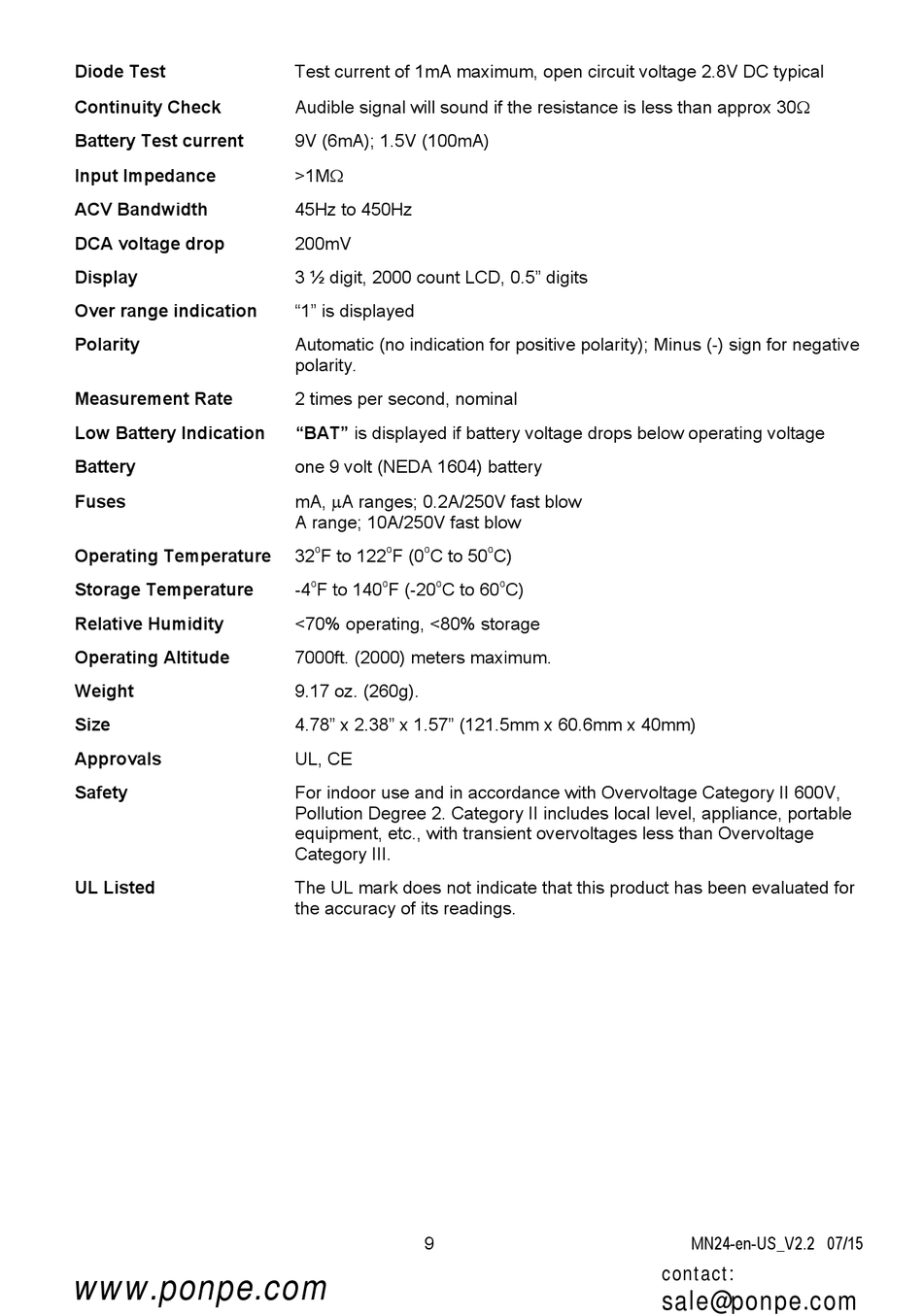

Extech Instruments MiniTec Series User Manual page 9

Diode Test
Continuity Check
Battery Test current
Input Impedance
ACV Bandwidth
DCA voltage drop
Display
Over range indication
Polarity
Measurement Rate
Low Battery Indication
Battery
Fuses
Operating Temperature
Storage Temperature
Relative Humidity
Operating Altitude
Weight
Size
Approvals
Safety
UL Listed
www.ponpe.com
Test current of 1mA maximum, open circuit voltage 2.8V DC typical
Audible signal will sound if the resistance is less than approx 30
9V (6mA); 1.5V (100mA)
>1M
45Hz to 450Hz
200mV
3 ½ digit, 2000 count LCD, 0.5" digits
"1" is displayed
Automatic (no indication for positive polarity); Minus (-) sign for negative
polarity.
2 times per second, nominal
"BAT" is displayed if battery voltage drops below operating voltage
one 9 volt (NEDA 1604) battery
mA, A ranges; 0.2A/250V fast blow
A range; 10A/250V fast blow
o o o
32 F to 122 F (0 C to 50
o o o
-4 F to 140 F (-20 C to 60
<70% operating, <80% storage
7000ft. (2000) meters maximum.
9.17 oz. (260g).
4.78" x 2.38" x 1.57" (121.5mm x 60.6mm x 40mm)
UL, CE
For indoor use and in accordance with Overvoltage Category II 600V,
Pollution Degree 2. Category II includes local level, appliance, portable
equipment, etc., with transient overvoltages less than Overvoltage
Category III.
The UL mark does not indicate that this product has been evaluated for
the accuracy of its readings.
9
o
C)
o
C)
MN24-en-US_V2.2 07/15
