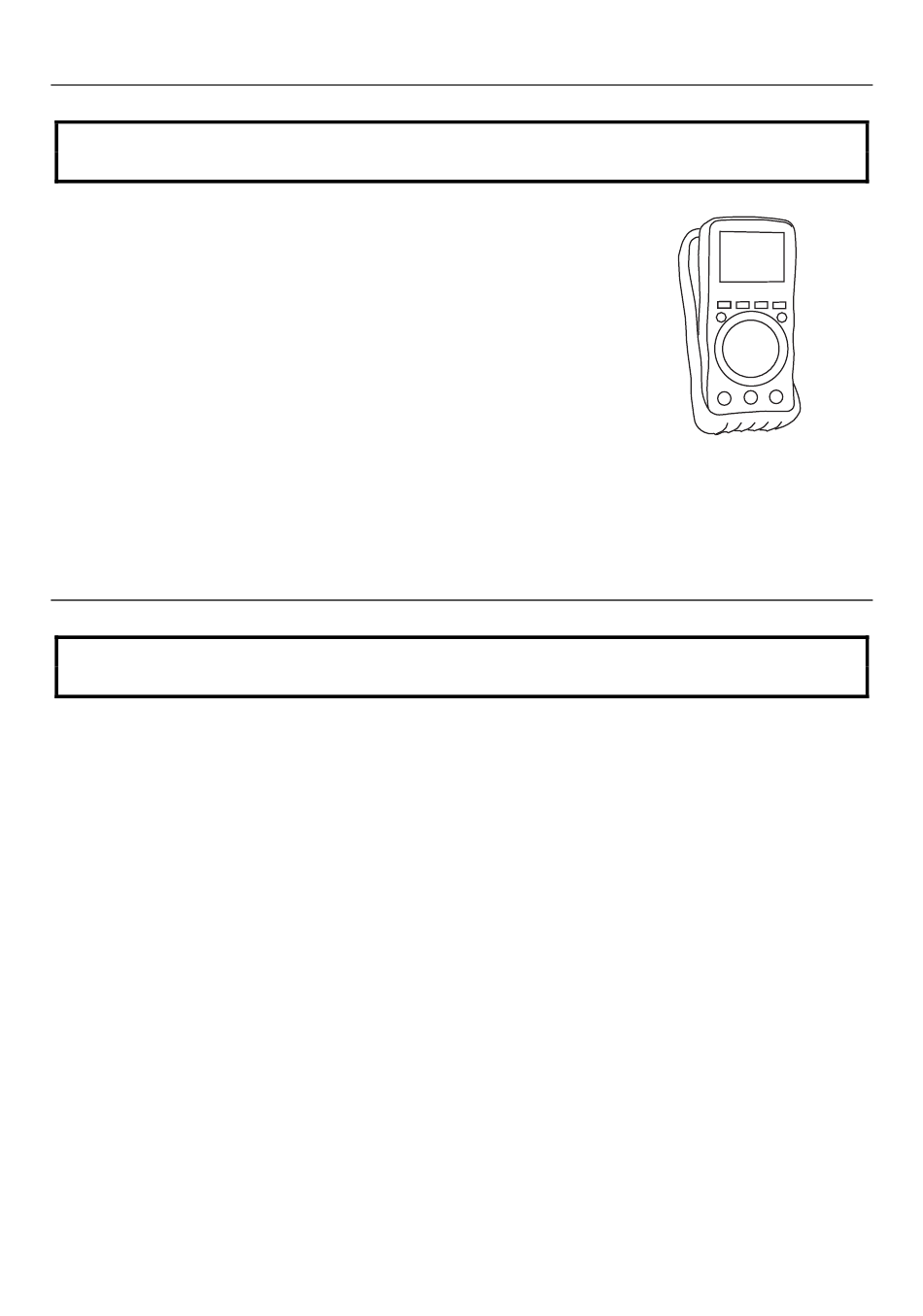

Battery Replacement

WARNING: To avoid electrical shock, disconnect the test leads from any
source of voltage before removing the rear cover.
1. Disconnect the test leads from the meter.
2. Remove the rubber holster (if in place)
3. Open the battery door by removing the screw with a
Phillips head screwdriver
4. Insert the new battery into the battery holder, ensuring
correct polarity
5. Replace the battery door and secure with the screw

Fuse Replacement

WARNING: To avoid electric shock, disconnect the test leads from any
source of voltage before removing rear cover.
1. Disconnect the test leads from any circuit being measured.
2. Remove the rubber holster (if in place)
3. Open the fuse cover by removing the screw with a Phillips head
screwdriver.
4. Remove the old fuse and Install the new fuse by gently pushing it into the
holder.
5. Always use a fuse of the proper size and value (0.2A/250V fast blow, or
10A/250V fast blow).
6. Replace the fuse cover and secure with the screw
