IV.ASSEMBLY/FOLDING/DEBUG
CAUTION!
1. Make sure that the locating pins have been inserted into
the positioning holes when the wheelchair has been fully
folded open, and then it can be used.
2. Make sure that the anti-tippers are fully pulled out in order
to prevent the wheelchair back from tipping over, which may
result inpersonal injury.
3. Batteries must be fully inserted.
figure 9
figure 8

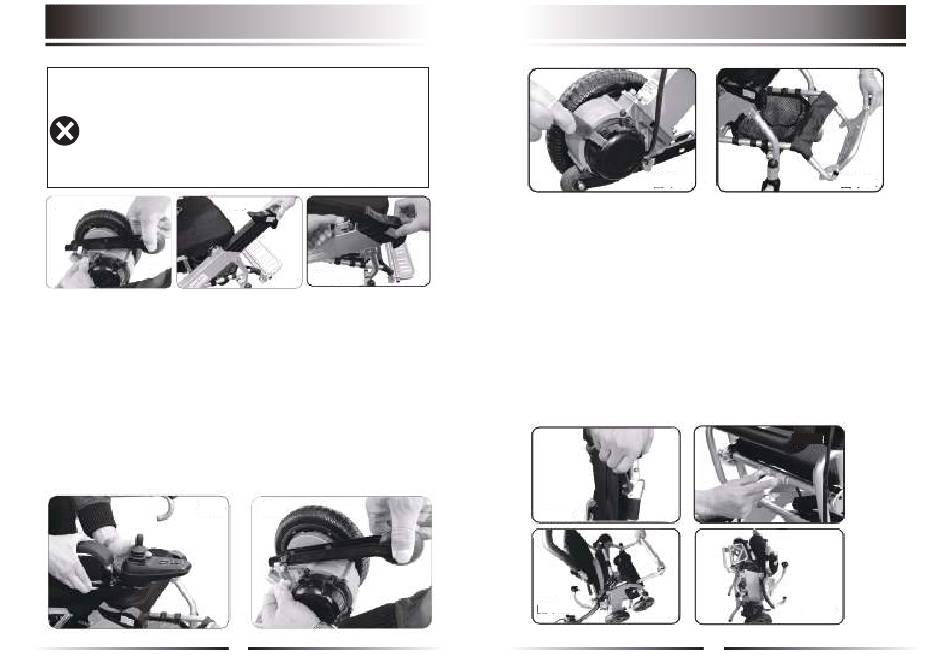

5.2 Folding
The wheelchair is foldable in order to reduce its bulk for transportation
and storage.
1. Turn off the power.
2. Switch the motor lock levers to drive mode to make sure that the
wheelchair has not been in manual mode(figure 11).
3. Turn the footrest upward(figure 12)
4. Press the buttons on both sides of seatback by your forefingers
to fold down the backrest (figure 13)
5. Pinch inward two thumb-levers of the right and left locating pins at the
back of the backrest (figure 14).
6. Pull up the footrest frame(figure 15) so that the chair frame will be fully
folded(figure 16). Turn back the armrest.(figure 17).
figure 6
figure 10
figure 7
9
IV.ASSEMBLY/FOLDING/DEBUG
figure 11
For ease of use, the wheelchair is equipped with two motor lock levers,
when you press down the motor lock lever to "manual", the wheelchair
will be in manual mode, and can be pushed by hand. When the motor
lock lever is pressed upward to "electric", the wheelchair will be on
electric mode, and can't be moved by hand(figure 11).
5.3 Debugging
5.3.1 When the motor lock lever is downward to manual mode, do not
move the chair by hands; when the motor lock lever is upward to
electric mode,do not move the chair by hands.
5.3.2 Press the joystick power,and the battery indicate light will be on.
5.3.3 Rotate the joystick lever toward front to the end, observe the
rotation of wheelchair wheels, and then rotate other direction to
observe if the wheels run.
5.3.4 Release the joystick lever, it will be come back to the middle
position, then you observe the wheels should be stopped.
figure 13
figure 15
figure 12
figure 14
figure 16
