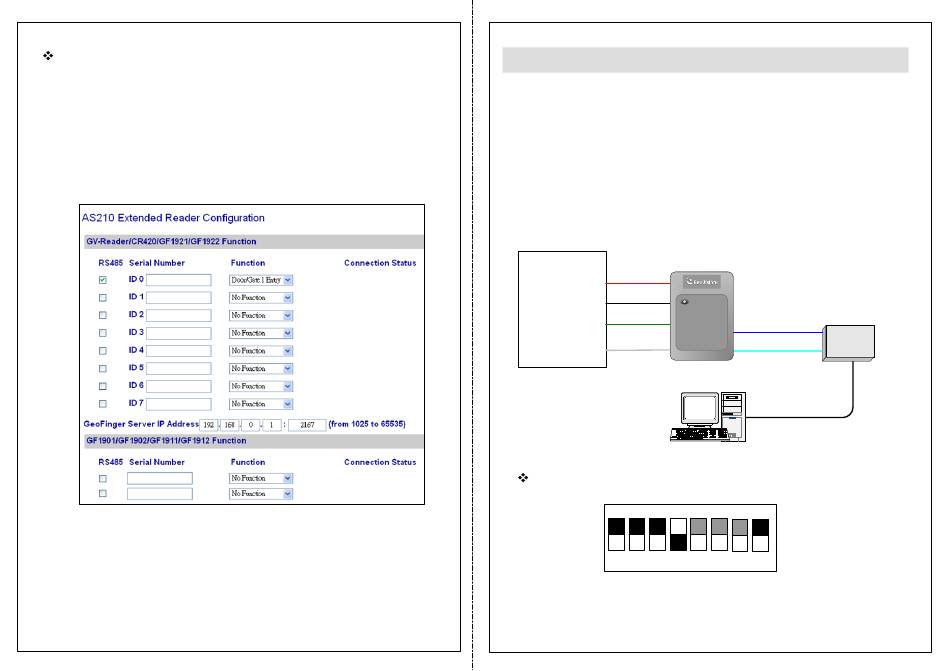

GeoVision GV-Reader 1251 Installation Manual page 3

Defining Readers on GV-AS Controller Web Interface
After configuring the switch settings, you need to define the readers' ID
number and specify which door each reader controls on the Web interface
of the GV-AS Controller.
1. Type the GV-AS Controller's IP address in the Web browser.
2. Type the username and password to login.
3. In the left menu, click Extended Reader. This page appears.
4. Select the RS485 checkbox in front of the ID number.
The ID number must match the ID you configured using SW5 – SW7.
5. Leave the serial number field blank.
6. Select a door/gate for the reader under Function. Click Submit.
Connecting to GV-System and Third-Party Access Controllers
GV-Reader is also compatible with third-party access controllers. With its
compatibility, you can also add a GV-System to this connection to empower
your management.
After connecting the GV-Reader to the access controller through the Wiegand
interface, connect the GV-Reader to the GV-System via GV-COM, GV-Hub or
GV-NET/IO Card V3.1.
Note: The GV-Reader is not compatible with the GV-NET Card and the GV-
NET/IO Card of versions earlier than V3.
(Red)
(Black)
Access Controller
(third-party)
GV-Reader
(Green)
(power supply: 7.5~12 V)
(White)
GV-Reader
GV-System
Switch Setting
ON
1 2 3 4
SW4 must be turned OFF.
GV-COM / GV-Hub /
GV-NET/IO Card V3.1
(Blue) +
(Light blue) -
USB
ECE
5 6 7 8
