3.6 Viewing stored data

To view the stored data on the Micro Plus, press 'NEXT' on main menu to select "dat". Press
'YES' and the display will show the test number. Press 'NEXT' to select the required test number.
Press 'YES' to view the stored result in the selected test number. After viewing the test results, the
display will show "Prn", select 'YES' to print via IRDA printer (optional accessory) or 'NEXT' to
view next test result. At the end of all stored test results there is a "CLr" option that can be used
to clear the saved data.

3.7 Printing on IRDA printer (optional accessory)

In order to print the test results on IRDA printer, switch on the printer and give print command from
the Micro plus. Ensure that the infrared port on the micro plus and printer are aligned with each
other.

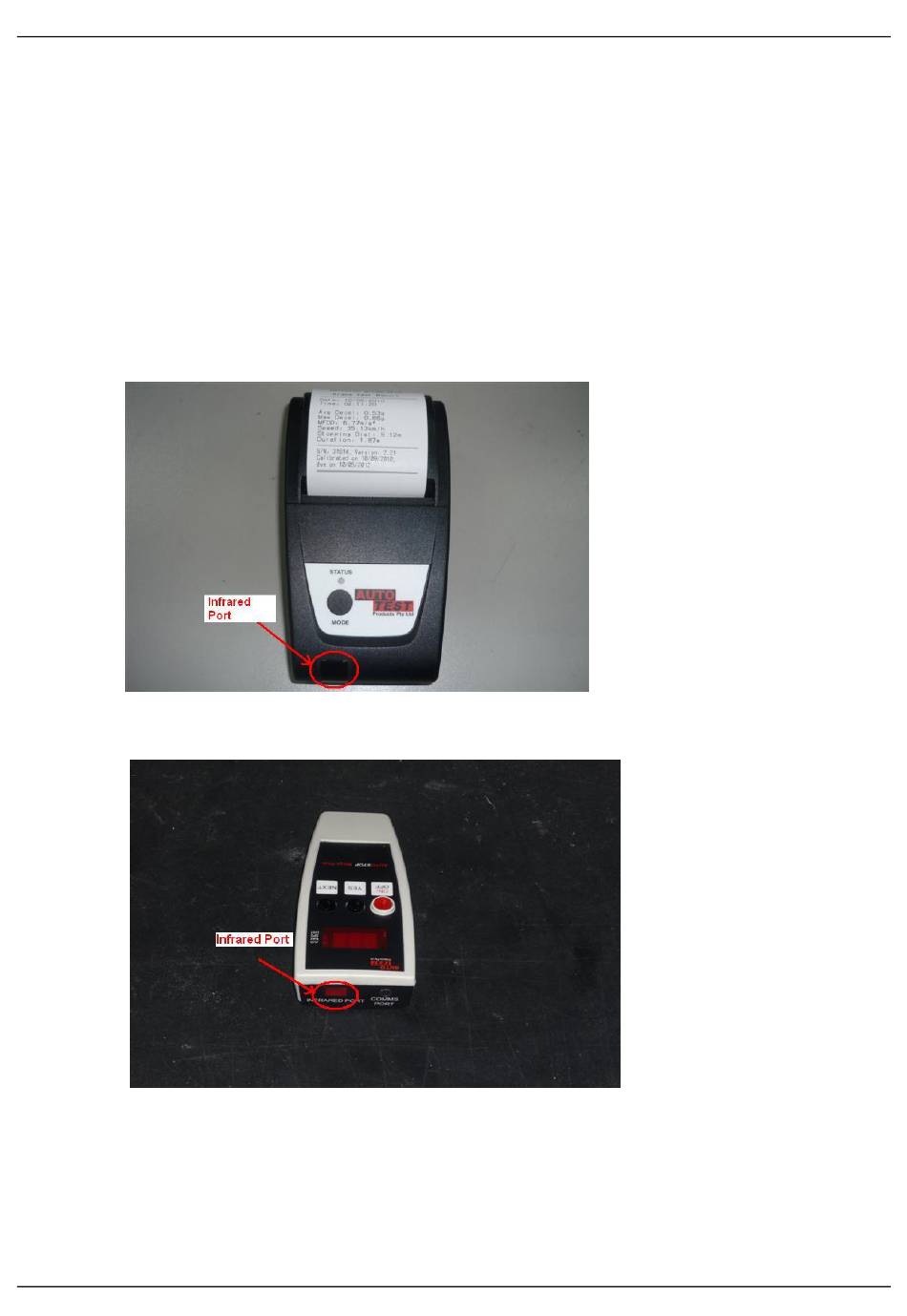

Infrared port on printer
Infrared port on Micro Plus
