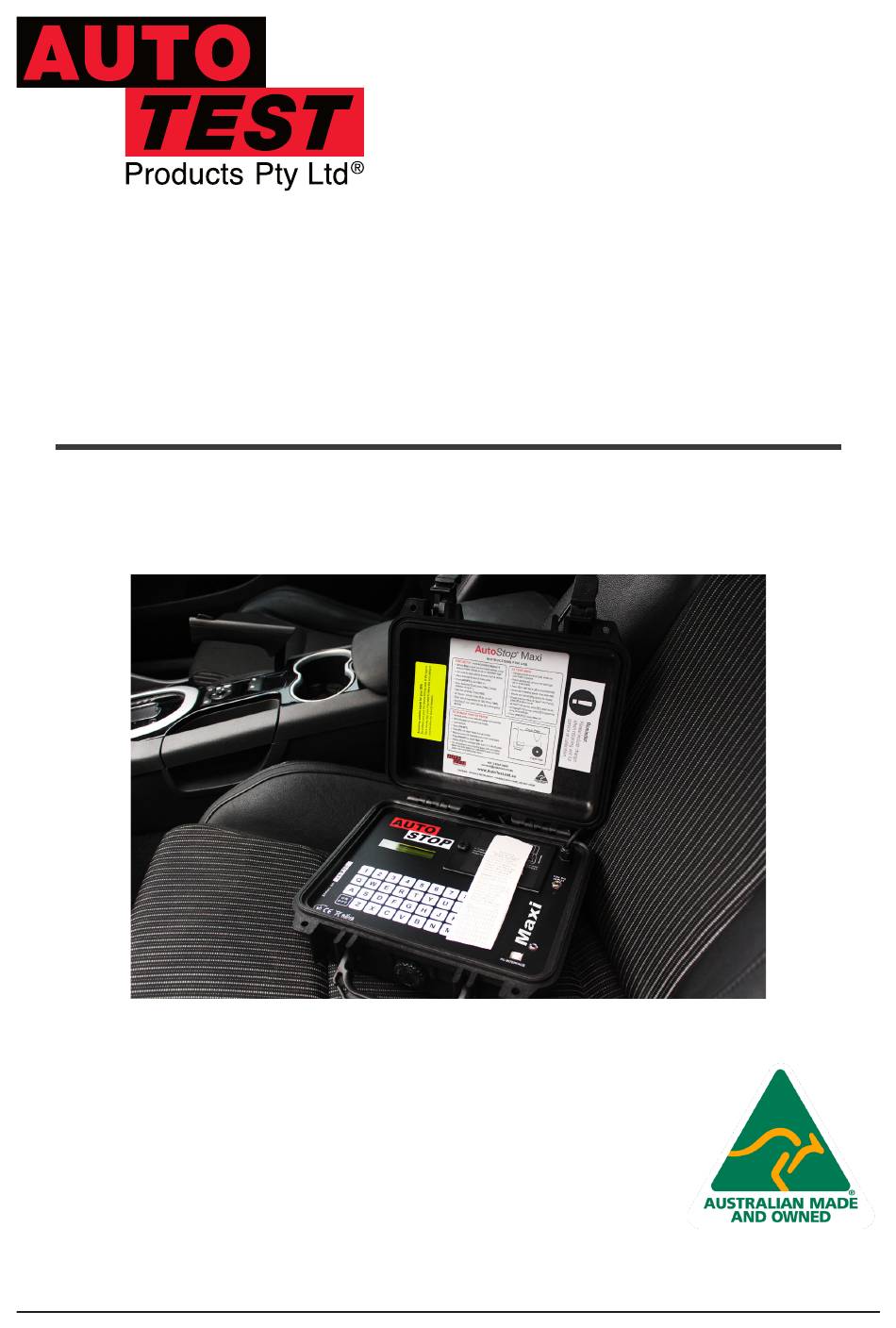

- Page 1 User Manual Version : 11 (SEP 2024) AutoStop Maxi-GPS In Vehicle Brake Tester Licence ID number: 10242...
- Page 2 DECLARATION OF CONFORMITY We, AutoTest Products Pty Ltd, declare under our sole responsibility that the product is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can get it from sales@autotest.net.au. ©...
- Page 3 5.2.3 Downloading Results Via Bluetooth..................15 5.2.4 Procedure For Opening A Previously Saved Log-File...............20 6. CHECKING SENSORS AND OTHER FUNCTIONS ..............20 7. CALIBRATION PROCEDURE ....................21 7.1 Return Of AutoStop Maxi-GPS For Calibration ................21 8. TROUBLESHOOTING ......................22 9. SPECIFICATIONS .......................23 10. CHANGING PAPER ......................24 11.
- Page 4 Congratulations on your choice of an AutoTest Brake Meter. Please take the time to read this User’s Manual before using the AutoStop Maxi-GPS Brake Meter in the field. Incorrect or inappropriate use of this instrument may void the warranty. Retain the packing materials for future shipping and transport of the unit for periodic calibration.
- Page 5 WATER-RESISTANCE Your device is not water-resistant. Keep it dry. CONNECTING TO OTHER DEVICES When connecting to any other device, read its user's guide for detailed safety instructions. Do not connect incompatible products. AutoStop Maxi-GPS User Manual version 11 Page 3...
- Page 6 Brake Meter is used more frequently, the battery should be recharged daily. The AutoStop Maxi-GPS is fitted with a low voltage cut-out switch in the circuitry to protect the battery from excessive discharge. If the battery is allowed to discharge to zero (0) volts, and left standing for a long period of time, severe sulfation would occur, raising the internal resistance of the battery to abnormally high levels.
- Page 7 Therefore, the area used for the test should be as flat as possible. The head wind should be less than 10kph. 4.3 Set-Up in Vehicle AutoStop Maxi-GPS must be secure during the entire duration of the test. Misalignment or movement can cause lower (worse) deceleration readings. This could mean test failure if the brake performance is close to the required limits.
- Page 8 “-“ key, then press the listed character to obtain the special character. Press “-“ and HOLD, Press “-“ and HOLD, Displayed Character Displayed Character then Press: then Press: “ & ‘ AutoStop Maxi-GPS User Manual version 11 Page 6...
- Page 9 Start, Abort? S / A recorded or printed. “E” is also used when testing parasitic braking devices such as retarders. Note: An emergency test is similar to a pendulum type brake test. AutoStop Maxi-GPS User Manual version 11 Page 7...
- Page 10 01.g. If the vehicle is in motion, you may gently accelerate to the required speed and follow the same instruction as above. AutoStop Maxi-GPS User Manual version 11 Page 8...
- Page 11 Repeat the test by press- Svrc/Emrg? S/E if “Y” is ing “Y”, stop testing and Repeat? Y/N Press “Y” or “N” pressed, Ready> if “N” is return to Ready mode by pressed pressing “N” AutoStop Maxi-GPS User Manual version 11 Page 9...
- Page 12 Note: Data Logger memory usage in percentage 5.2 Downloading Data The AutoStop Maxi-GPS is provided with a serial port and bluetooth connectivity. An interfacecable and download software are required to download test results from the Brake Meter. These are provided with the unit. The uploaded data, formatted as a text file, can be imported into spreadsheet programs such as Excel and Lotus for future detailed examination, or printed.
- Page 13 Note that if you install the software on a different computer, or under a different login name, you will need to re-enter the license code(s). Be sure to save any purchased codes. AutoTest Products cannot be held responsible for lost license codes. AutoStop Maxi-GPS User Manual version 11 Page 11...
- Page 14 COM Port number in Device Manager-Ports (COM & LPT). In the following example, the COM port number is “COM6”. To download the results, open AutoStop Maxi/Heavy datalogger software and click on “Download test(s) from meter” button. AutoStop Maxi-GPS User Manual version 11 Page 12...
- Page 15 Brake Meter and have entered the License Code in the ‘Add License’ section of this program - see section 5.2.1 for more information). In step 3, enter any comments for the test and press Next. These comments will be saved in the output file. AutoStop Maxi-GPS User Manual version 11 Page 13...
- Page 16 After the data is downloaded and displayed on the screen, click the ‘More Data’ button to see the full test data, or select Print from the toolbar to print the test and chart data to your printer. AutoStop Maxi-GPS User Manual version 11 Page 14...
- Page 17 5.2.3 Downloading results via Bluetooth Before connecting AutoStop Maxi-GPS to PC using the Bluetooth interface, make sure the PC supports the Bluetooth connectivity. Once the Data Logger software is installed, run the software on the PC and switch ON the brake meter by pressing the ON/OFF key.
- Page 18 If you have Windows 11, then needs to set their device discovery to advanced instead of default to be able to see the Maxi in the view more devices of the Bluetooth settings. AutoStop Maxi-GPS User Manual version 11 Page 16...
- Page 19 Related Settings of Bluetooth Settings. The above-mentioned screenshots may not be the same on every computer. For information regarding Bluetooth device pairing on your PC, please refer to the instruction manual of your Bluetooth managing application. AutoStop Maxi-GPS User Manual version 11 Page 17...
- Page 20 Enter the serial number of the meter and press Next. (Note that you must own a license for the Brake Meter and have entered the License Code in the ‘Add License’ section of this program - see section 5.2.1 for more information). AutoStop Maxi-GPS User Manual version 11 Page 18...
- Page 21 After the data is downloaded and displayed on the screen, click the ‘More Data’ button to see the full test data, or select Print from the toolbar to print the test and chart data to your printer. AutoStop Maxi-GPS User Manual version 11 Page 19...
- Page 22 Contrast may be changed by pressing “U” to go up or “D” to go down. Pressing “E” will exit this function. Printing… Test Printer “N” The built-in printer will printout a demo page. This function could be used to diagnose the printer. AutoStop Maxi-GPS User Manual version 11 Page 20...
- Page 23 The LCD screen will show: “Calibration due! Contact your vendor for recalibration.” Return Brake Meter to AutoTest Products (See Section 7.1). 7.1 Return of AutoStop Maxi-GPS for Calibration To return for recalibration, pack your device securely and include all the details such as: •...
- Page 24 Authorised AutoTest Service Centre in order to ensure the Brake Tester retains its calibration. Refer to Section 12 regarding warranty. For instructions on returning products for calibration or servicing, see Section 7.1. AutoStop Maxi-GPS User Manual version 11 Page 22...
- Page 25 Paper and ribbons are available from AutoTest Products as a kit, containing 2 rolls of paper and one ribbon. The replacement of any other components must be carried out by AutoTest Products. AutoStop Maxi-GPS User Manual version 11 Page 23...
- Page 26 5. Wind up any slack in the paper roll, replace the printer cover plate fitted with the new paper roll and press the hold-down buttons home. Note: The buttons must be correctly aligned before they will click home. 6. Press “Off” when complete. AutoStop Maxi-GPS User Manual version 11 Page 24...
- Page 27 1. Modified, abused, neglected, accidentally damaged or excessively worn products, or products that have become damaged or defective as a result of improper use. 2. Repairs attempted or made by other than our regional repair centre or authorised warranty service centre. AutoStop Maxi-GPS User Manual version 11 Page 25...
- Page 28 The battery must never be allowed to fully discharge as it will void the warranty. Set-Up & Testing 1. Secure AutoStop Maxi-GPS in vehicle and attach pedal sensor to brake pedal. This will vary from vehicle to vehicle; a mounting bracket or straps may be used.
- Page 29 5. Enter Examiner ID and press “Yes”. 6. Press “P” to feed paper through printer. 7. Press any key to halt paper feed 8. Replace paper roll assembly and printer cover. 9. Press “OFF”. AutoStop Maxi-GPS User Manual version 11 Page 27...
- Page 30 ® denotes a trademark owned by AutoTest Products Pty Ltd ABN 47 005 712 005. AUTOTEST Products Pty Ltd 69 Parsons St Kensington VIC 3031 Australia Phone: (+61 3) 8840 3000 Service: (+61 3) 8840 3016 service@autotest.net.au Sales:(+61 3) 8840 3017 sales@autotest.net.au www.autotest.net.au AutoStop Maxi-GPS User Manual version 11 Page 28...
