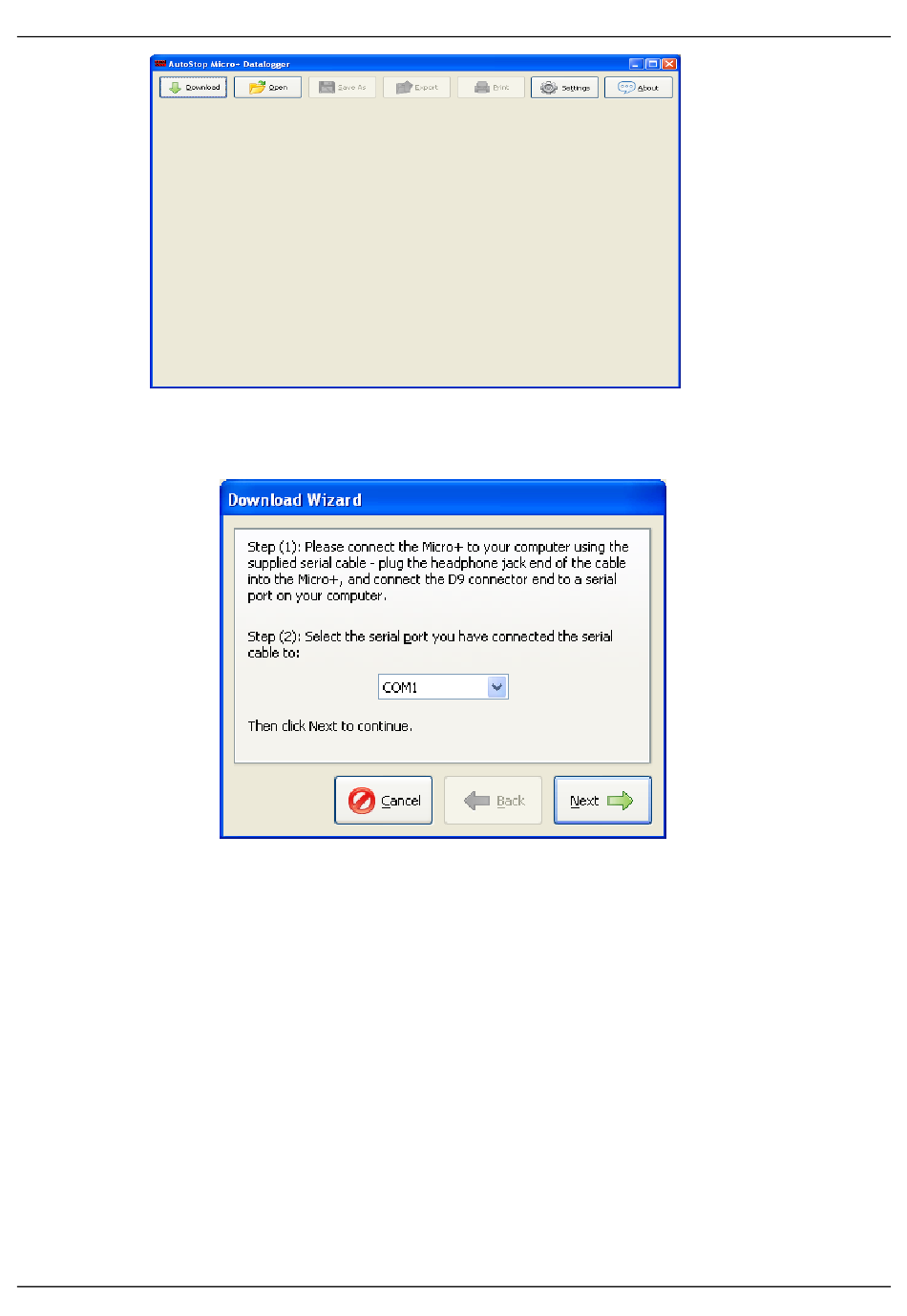

Step 2: A smaller window will appear, select the serial port you have connected the serial cable to.
CLICK NEXT TO CONTINUE.
Step 3: If your Micro Plus is currently switched on – switch it off now.
Step 4: Switch on the Micro Plus. The software will automatically commence download when a
connection is detected. The Micro Plus display will show "dL.." for downloading.
The next screen should read: Download Completed.
NOTE: If you remain on the same screen after step 4, try switching the Micro Plus off and then on
again and/or go back to step 2 and ensure that you have selected the correct serial port.

4.3 Using the Data logger

The Data logger will display all the saved tests and you can view the result s of the particular test
and view corresponding graph for each test.
