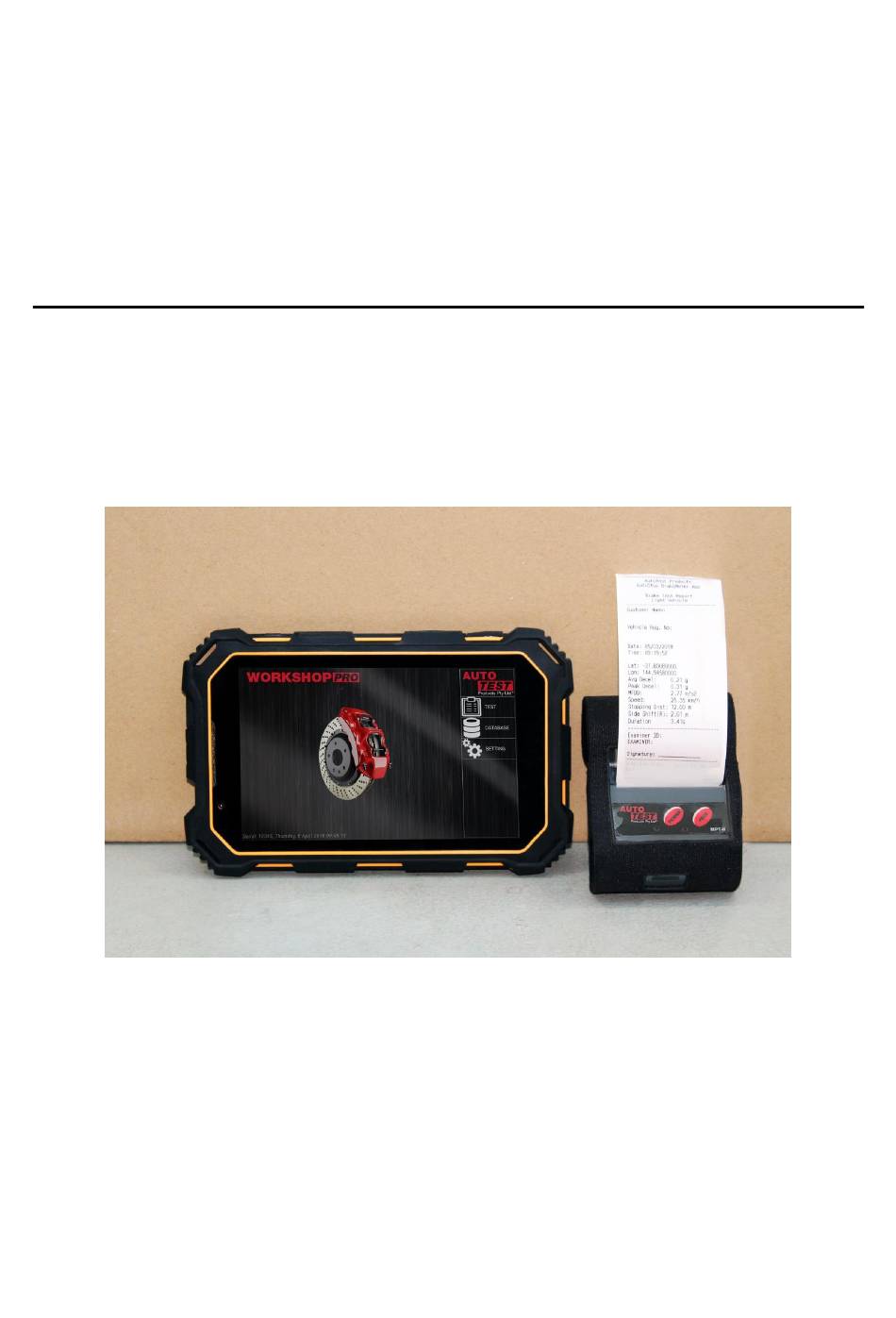

- Page 1 User Manual Version 1.05 Test AUTO Workshop Pro...
- Page 2 N17561 DECLARATION OF CONFORMITY We, Auto Test Products Pty Ltd. declare under our sole responsibility that the product Workshop Pro is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity is available from http://www.autotest.net.au ©...
-
Page 3: Table Of Contents
3. WARRANTY ................................. 3 3.1 AUTHORISED SERVICE AGENTS .......................... 4 4. UNPACKING AND FIRST TIME USE .......................... 5 4.1 Activating your Workshop Pro ........................... 5 5. OPERATION ................................12 5.1 Test Conditions & Test Area ........................... 12 5.2 Set-up in Vehicle ..............................12 5.3 Running a test ................................. -
Page 4: Preface
Do not connect incompatible products. RISK OF DAMAGE TO EYES Wear safety goggles when operating near vehicle battery as Battery acid, fumes, oil and dust particles might cause damage to the eyes. AutoTest Workshop Pro User Manual Page 2... -
Page 5: Warranty
AutoTest Products or any Authorised Service Centre is not responsible for incidental or consequential damages resulting from the breach of any express or implied warranty, including damage to property and, to the extent permitted by law, damages for personal injury. AutoTest Workshop Pro User Manual Page 3... -
Page 6: Authorised Service Agents
144 Overlook Ave, Staten Island, NEW YORK, 10304. PH: (+171) 8980 3651 full list Authorised Service Centres found here: http://www.autotest.net.au/distributors/ Alternatively, you can contact the AutoTest Service Department by Phone: (+61 3) 88403016 AutoTest Workshop Pro User Manual Page 4... -
Page 7: Unpacking And First Time Use
Congratulations on your choice of an AutoTest Workshop Pro. Please take the time to read this User’s Manual before using the AutoTest Workshop Pro in the field. Incorrect or inappropriate use of this instrument may void the warranty. Retain the packing materials for future shipping and transport of the unit. - Page 8 Wi-Fi or provide it with a Sim card. Once you have agreed/disagreed hit the return button ( ) in the tablet navigation bar located on the edge of the screen. Figure 4 AutoTest Workshop Pro User Manual Page 6...
- Page 9 Step 4. At this point, the tablet will require either a Wi-Fi connection or a GPS signal. If you have already connected the Workshop Pro to Wi-Fi then you can wait; otherwise you need to connect to the Wi-Fi or take the tablet outside (under the sky) for it to acquire a GPS signal (this can take up to 10 minutes).
- Page 10 ONLY PROCEED FROM HERE AFTER ACQUIRING A LICENSE TOKEN FROM YOUR LOCAL DISTRIBUTOR. Step 8. Find your License file and make sure it’s saved somewhere on your computer. Step 9. Plug your tablet into your computer with the supplied USB cable. AutoTest Workshop Pro User Manual Page 8...
- Page 11 Step 10. Navigate to the Workshop Pro unit (HR935 / HR853) from your ‘My Computer’ or equivalent Step 11. Select a location to store the token on the workshop pro device Step 12. Open the settings panel of your app Step 13.
- Page 12 ‘Hide SD card’ Step 17. Now when you select the menu button in the top left (2) you should be able to see the ‘Internal storage / HR853’ option, choose whichever applies AutoTest Workshop Pro User Manual Page 10...
- Page 13 Step 18. Navigate to the folder / location where you previously saved your license token and select it AutoTest Workshop Pro User Manual Page 11...
-
Page 14: Operation
5. Operation Before you begin testing you should calibrate your Workshop Pro, The reason for this is to maintain creditability in tests. Provided you have an active license you will be able to calibrate at any time by going into the Settings menu and selecting the Calibration option. -
Page 15: Reviewing A Test
Average / Peak deceleration you need to touch the test screen where the report says ‘Average Deceleration’ Figure 10 or ‘Peak Deceleration’ (Figure 10) select corresponding measurement unit (Figure 11). Figure 11 AutoTest Workshop Pro User Manual Page 13... -
Page 16: Printing A Test
5.5 Printing a test In order to print a test report you need to pair the Workshop Pro with the supplied Thermal Bluetooth Printer, if you haven’t done this yet just continue through the following print procedure and the app will redirect you to the Bluetooth Pairing screen when appropriate (Figure 14). - Page 17 USB-A to Micro-USB cable. (Note: if this is the first time then your computer may be installing drivers to communicate with the Workshop Pro). Once the Workshop Pro is connected you need to open the Workshop Pro (HR935) (Figure 15) in windows explorer by finding the device in the ‘My Computer’ folder.
-
Page 18: Database
(press and hold) the screen corresponding View Info to the test you’re after. This will bring up the test option prompt (Figure 18) where you can choose the option you desire. Figure 18 AutoTest Workshop Pro User Manual Page 16... -
Page 19: Settings
Figure 19 7.1 Activation The “Activation” option will allow you to activate the license for your workshop pro. If the device has yet to be active the button message will read “Brake meter is not activated, requires reactivation”. For instructions refer to section 4.1... -
Page 20: Calibration
Calibration is not required during daily use. Periodic calibration should be done every 6 months. If the Workshop Pro is not active the calibration button will not work. To activate the unit you will need to follow the process outlined in section 4.1... -
Page 21: Bluetooth
7.3 Bluetooth The Bluetooth page (Figure 20) will manage which devices are currently connected to the Workshop Pro. When using the unit with a Bluetooth printer you will have to navigate to this page in order to pair the two devices. -
Page 22: Check For Updates
The “Check for Updates” entry in the settings page allows you to toggle whether or not the Workshop Pro will prompt you for any available software updates. We strongly recommend you leave this enabled as it will help you keep the Workshop Pro up to date with the most recent features and fixes. -
Page 23: Return Of Workshop Pro
9. Maintenance and Troubleshooting Maintaining the Workshop Pro only requires you to charge it as the battery declines. Under no circumstance should you attempt to open the unit. If you are in need of troubleshooting and none of the information in this manual is able... - Page 24 NOTES: AutoTest Workshop Pro User Manual Page 22...
