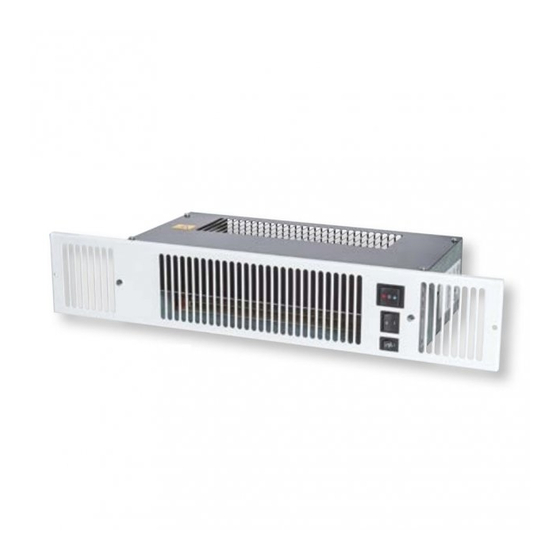

- Page 1 KICKSPACE 500E ECO ® & 600E ECO INSTALLATION & OPERATING MANUAL PLEASE LEAVE THIS MANUAL WITH THE END USER COMPLETE HEATING SOLUTIONS...
-
Page 2: Table Of Contents
500E ECO & 600E ECO models must be earthed. ® WARNING: DO NOT cover the unit or obstruct the grille as this could give risk of fire. For MYSON KICKSPACE 500E ECO & 600E Children of less than 3 years should be kept away ®... -
Page 3: Installation
5. Screw fixing kit (with grille). must only be removed with the electrical supply switched off ® l This MYSON KICKSPACE fan convector is designed for immediately prior to fitting of the grille. installation in the cavity beneath kitchen cupboards in the l Align the grille and secure it to the unit with two screws vacant floor space, or other similar locations. -
Page 4: Controls
KICKSPACE ® 500E ECO & 600E ECO 5.0 Controls Setting the date and time This unit is controlled by the switches on the front of the unit (see Fig. 3) and a wireless programmable thermostat. keys to choose from the following parameters. The wireless programmable thermostat includes many features A function is selected when the icon is surrounded by ®... - Page 5 KICKSPACE ® 500E ECO & 600E ECO 5.0 Controls (continued...) Operating Modes (continued...) Function Description Adjustment Night Set-back Setting The display will show the ambient temperature. Press (OK), set temperature will begin to blink. Provides room temperature controls for when the room is not occupied.
- Page 6 KICKSPACE ® 500E ECO & 600E ECO 5.0 Controls (continued...) Programme Mode A quantity of 9 built-in (P1-P9) and 4 user defined (U1-U4) timed Built-in Programme Selection programme options are available to choose from. Each day is 1. Select P by pressing until ‘ProG’...
-
Page 7: Appendix
Manually pair the thermostat to the receiver Press (OK) to begin pairing Myson Smart Start (Adaptive Start) Thermostat will learn to achieve temperature by time requested Window open detection, product will switch off if a large temperature drop is detected (usually caused by an open... -
Page 8: Kickspace ® 500E Eco & 600E Eco
KICKSPACE ® 500E ECO & 600E ECO 6.0 Appendix (continued...) ® KICKSPACE 600E ECO ® KICKSPACE 500E ECO View on arrow View on arrow Mains cable entry Mains cable entry Top view Top view Mains cable entry Mains cable entry FRONT GRILLE FRONT GRILLE Dimensions (mm) -
Page 9: 6.0 Appendix (Continued
KICKSPACE ® 500E ECO & 600E ECO 6.0 Appendix (continued...) Weekly programme and OFF symbol Radio transmission indicator Keypad lock activated Exemption programme Programme schedule and time indicator Programme number Current day Low battery indicator If ON => Room temp, displayed 10. -
Page 10: 6.0 Appendix (Continued
KICKSPACE ® 500E ECO & 600E ECO 6.0 Appendix (continued...) Fig. 5 Fitting instructions Fig. 6... -
Page 11: Eco Directive Characteristics
KICKSPACE ® 500E ECO & 600E ECO 7.0 Eco Directive Characteristics Model identifier(s): KICKSPACE ® 500E ECO KICKSPACE 600E ECO ® Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only Nominal heat output P nom 2.03... - Page 12 Product code and serial number location Product Serial Number: COMPLETE HEATING SOLUTIONS...
