Model K17-231 — 16.8 K-factor
Upright and Pendent Sprinklers
Standard Response, Standard Coverage
General
Description

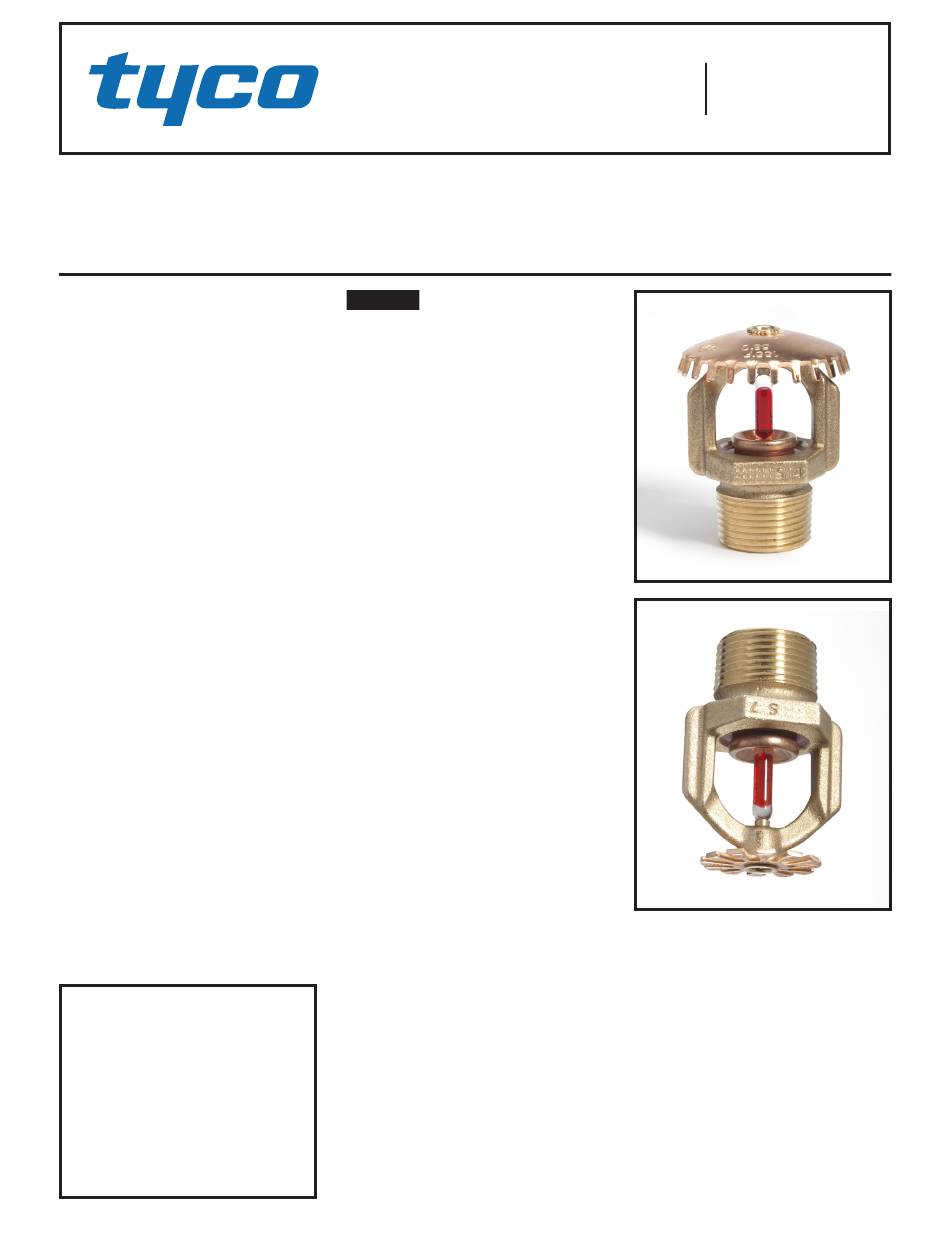

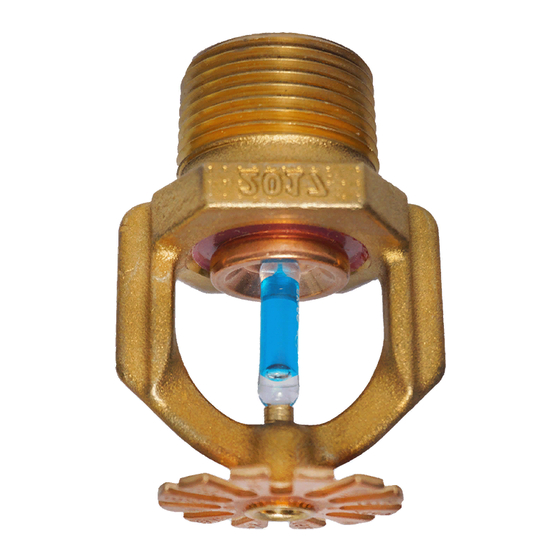

The TYCO 16.8 K-factor, Model
K17-231, Standard Response, Standard
Coverage, Upright and Pendent Sprin-
klers (Ref. Figure 1) are automatic sprin-
klers of the frangible bulb type. They
are "standard response spray sprin-
klers" which produce a hemispherical
water distribution pattern below the
deflector.
The 16.8 K-factor, K17-231 Sprinklers
were subjected to full scale, high-piled
storage, fire tests to qualify their use
in lieu of 8.0 or 11.2 K-Factor standard
spray sprinklers for the protection of
high-piled storage.
Higher flow rates can be achieved at
much lower pressures with the 16.8 K-
factor, K17-231 Sprinklers — making
their use highly advantageous in high
density applications, such as the pro-
tection of high-piled storage.
Applications for the 16.8 K-factor, Mod-
el K17-231 Pendent and Upright Sprin-
klers are expanding beyond the cur-
rent listings/approvals. For information
regarding research fire tests which may
be acceptable to an authority having ju-
risdiction, please contact the Technical
Services Department.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling
Installation of sprinkler systems and
components. Improper handling and
installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 4
NOTICE
The 16.8 K-factor, Model K17-231 Up-
right and Pendent Sprinklers described
herein must be installed and maintained
in compliance with this document and
with the applicable standards of the Na-
tional Fire Protection Association, in ad-
dition to the standards of any authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Model/Sprinkler
Identification
Number (SIN)
TY7151 -Upright, 16.8K
TY7251 -Pendent, 16.8K
TY7151 is a redesignation for C7151,
G1888, and S8040.
TY7251 is a redesignation for C7251,
G1889, and S8041.
Technical
Data
Approvals
UL and C-UL Listed. FM and NYC Ap-
proved. (Specific details for laboratory
listings and approvals given in Table A.
The approvals apply to the service con-
ditions indicated in the Design Criteria
section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
and
3/4 inch NPT
Discharge Coefficient
K = 16.8 GPM/psi
(241,9 LPM/bar )
1/2
FEBRUARY 2012
Technical Services
Temperature Ratings
Refer to Table A
Finish
Natural Brass.
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly. . . . . . . . .Beryllium
1/2 Bulb (5 mm) . . . . . . . . . . . . . . . .Glass
Compression Screw. . . . . . . . . Brass
Deflector. . . . . . . . . . . . . . . . . . Brass
800-381-9312
+1-401-781-8220
www.tyco-fire.com
Nickel w/TEFLON
TFP332
