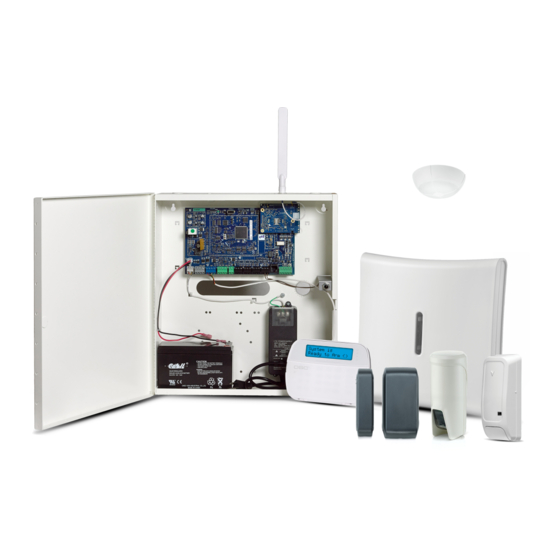

HS3032 / HS3128 / HS3248 USER MANUAL
WARNING: This manual contains information on limitations regarding product use and function and information
on the limitations as to liability of the manufacturer. The entire manual should be carefully read.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Pro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco Power Pro Series

  • Page 1 intrusion PowerSeries Pro HS3032 / HS3128 / HS3248 USER MANUAL WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read.
  • Page 3: Table Of Contents

    1.0 Quick Reference 2.0 Understanding Your Keypad 2.1 Keypad models 3.0 Securing the Premises 3.1 Setting the Alarm System 3.1.1 Alarm System Arming/Setting Methods 3.1.2 Setting the System (Infinite Exit Delay) 3.1.3 Away Setting the System with the Keypad 3.1.3.1 Setting the system in Away mode 3.1.3.2 Canceling the setting sequence 3.1.4 Setting the system in Stay mode 3.1.5 Canceling the setting sequence...
  • Page 4 5.1.3 Intrusion (Burglary) Alarm - Continuous Siren 5.1.4 Alarm Cancel Window 5.1.5 Viewing Alarms in Memory 5.1.5.1 Alarm Messages 5.2 Resetting Smoke Detectors 6.0 Wireless Keys 6.1 Using 2-way Wireless Keys 6.1.1 PG4929/PG8929/PG9929 6.1.2 PG4939/PG8939/PG9939 6.2 Using Proximity Tags 7.0 Managing Users 7.1 Access Code Types 7.1.1 Opening the Access Codes menu 7.1.2 Adding, Changing and Deleting Access Codes...
  • Page 5 14.1 Smoke Detectors 14.2 Fire Escape Planning 14.3 Carbon Monoxide Detectors 15.0 UK Compliance Statement 16.0 EULA 17.0 Installer Warning...
  • Page 6: Quick Reference

    Chapter 1.0 Quick Reference The PowerSeries Pro Alarm System uses shortcut keys to access options or features on all models of keypads. When using an LCD keypad, the PowerSeries Pro alarm system additionally uses a menu based navigation system. Use the scroll keys to view the list of options contained within the current menu.
  • Page 7 Chapter Action Press Change Brightness [*][6] [Master Code] + [1][2] + Change Contrast [*][6] [Master Code] + [1][3] + Buzzer Volume [*][6] + [Master Code] + [1][4] + Add/Delete User [*][5] + [Master Code] + [Access Code] + 1 Reset Smoke Detectors OR [*][7][2] View Troubles [*][2] + [Access Code†] +...
  • Page 8: Understanding Your Keypad

    Chapter 2.0 Understanding Your Keypad The PowerSeries Pro Alarm System supports a variety of wireless and hardwired keypads. 2.1 Keypad models This publication covers the following keypad models: Model Description HS2LCDPRO Alphanumeric LCD keypad with Proximity Tag support HS2LCDRFPRO8 Alphanumeric LCD keypad with wireless receiver and Proximity tag support HS2LCDWFPRO8 Wireless Alphanumeric LCD keypad with Proximity Tag support HS2LCDWFVPRO8...
  • Page 9: Securing The Premises

    Chapter 3.0 Securing the Premises The PowerSeries Pro provides multiple setting modes as described below: Away Mode Use this mode when there is nobody on the premises. Away mode activates all perimeter and interior sensors in the alarm system. Stay Mode Use this mode when someone is on the premises.
  • Page 10: Canceling The Setting Sequence

    Chapter Choose one of the following options: • To quickly set the system, press [*][0]. • To set the system using the Away key, press and hold the Away key for 2 seconds. If it is necessary, enter an access code, or present a proximity tag to the keypad reader. If the system bypasses a zone, a warning appears on the keypad.
  • Page 11: Canceling The Setting Sequence

    Chapter • The Ready indicator remains lit. • The Armed indicator remains on. • The keypad stops sounding. 3.1.5 Canceling the setting sequence To cancel the setting sequence, complete the following step: • Enter your access code, or present a proximity tag to the keypad reader. 3.1.5.1 Silent Exit Delay If you arm the system using the Stay key or the No Arming method [*] [9]: •...
  • Page 12: Setting The System Using The No-Entry Setting Feature

    Chapter 3.3.1 Setting the system using the No-entry setting feature To set the system using the No-entry setting feature, complete the following steps: Ensure that the Ready indicator is on, and that the system is ready for setting. Press [*] [9]. If it is necessary, enter an access code, or present a proximity tag to the keypad reader. If the system bypasses a zone, a warning message appears on the keypad.
  • Page 13: Canceling The Setting Sequence

    Chapter For European installations (EN50131 certified), the Armed indicator turns on only after the Exit Note: Delay. When the exit delay timer expires, the system is set and the following actions occur: • The Ready indicator remains lit. • The Armed indicator remains on. •...
  • Page 14: Bypassing Zones

    Chapter 3.9 Bypassing Zones If a zone is not operating properly, contact the installer immediately. Warning: Bypassing zones intentionally unprotects specified zones the next time your system is set. Depending on the type of keypad, bypassed zones will be identified differently. Using an HS2LCD series keypad, bypassed zones are indicated on the LCD screen as shown in the following table.
  • Page 15: Additional Bypass Features

    Chapter Bypassed zones: Must be configured before setting the system. Can be configured using a keypad. Allow for access to protected areas when the system is set. Allow you to set the system if a zone is temporarily out of service. Reduce the level of security.
  • Page 16: Recalling The Last Bypassed Zones

    Chapter 3.9.1.3 Recalling the last bypassed zones To recall the last bypassed zones, complete the following steps: On the keypad, press [*] [1]. If it is necessary, enter an access code, or present a proximity tag to the keypad reader. Optional: Choose one of the following options: •...
  • Page 17: Setting Troubles And Exit Faults

    Chapter • Use the [<] [>] keys to scroll to Bypass Options and press [*], and scroll to Bypass Group and press [*]. To exit Bypassing mode, press [*]. 3.11 Setting Troubles and Exit Faults The PowerSeries Pro notifies you of troubles when you are attempting to set the system or exit the premises.
  • Page 18: Unsetting The System With A 2-Way Wireless Key

    Chapter • Enter your access code, or present a proximity tag to the keypad reader. 3.12.3 Unsetting the system with a 2-way Wireless Key When you enter the premises, the keypad sounds. To avoid an alarm condition, you must unset the Note: system within a specific number of seconds.
  • Page 19: The Powerseries Pro Security System

    Chapter 4.0 The PowerSeries Pro Security System The PowerSeries Pro has been designed to provide the greatest possible flexibility and convenience. Read this manual carefully and have the installer provide instructions on how to operate the system and which features have been implemented. All users of this system should be equally instructed in its use. Fill out the "System Information"...
  • Page 20: Performing A Keypad And Siren Test

    Chapter 4.5 Performing a Keypad and Siren test LCD Display Press [*][6] and enter the [Master Code] to access User Functions. Press (*) for <> User Functions Press [04] or use the scroll keys to navigate to System Test and press [*]. Press (*) for <>...
  • Page 21: Emergency Keys

    Chapter 5.0 Emergency Keys EMERGENCY USE ONLY! IMPORTANT: Pressing both the emergency keys generates a Fire, Medical, or Panic Alarm, and alerts the monitoring station. To generate a medical alarm, press both medical alarm keys simultaneously for 2 seconds. keypad beeps to indicate the alarm input has been accepted and sent to the monitoring station. Fire Alarm Medical Alarm Panic Alarm...
  • Page 22: Carbon Monoxide Alarm - 4 Beeps, Long Pause, 4 Beeps

    Chapter 5.1.2 Carbon Monoxide Alarm - 4 beeps, long pause, 4 beeps Carefully review your Carbon Monoxide Alarm Installation/User Guide to determine the Warning: necessary actions required to ensure your safety and ensure that the equipment is operating correctly. Incorporate the steps outlined in the guide into your evacuation plan. Activation of your CO alarm indicates the presence of carbon monoxide (CO), which can be fatal.
  • Page 23: Resetting Smoke Detectors

    Chapter Hold-up Not Verified A single hold-up sensor was activated. Fire Alarm Fire alarm has been triggered. Central station has been notified. CO Alarm CO alarm has been triggered. Central station has been notified. 5.2 Resetting Smoke Detectors After an alarm condition, reset smoke detectors to exit the alarm condition. Verify with your alarm company if this function is required on your system.
  • Page 24: Wireless Keys

    Chapter 6.0 Wireless Keys In addition to the keypad, the PowerSeries Pro system can be controlled using a variety of devices: 2-Way Wireless Keys Proximity Tags 6.1 Using 2-way Wireless Keys Wireless keys allow users in close proximity of their premises the ability to readily set/unset their system, and to call for help.
  • Page 25: Managing Users

    Chapter 7.0 Managing Users The maximum number of access codes are as follows: 72 for HS3032 1000 for HS3128 1000 for HS3248 Each user access code can be: Uniquely labeled. Assigned a proximity tag. In order to operate, proximity tags must be enrolled in the system. Assigned to only operate specific partitions.
  • Page 26: Opening The Access Codes Menu

    Chapter 7.1.1 Opening the Access Codes menu LCD Display Press [*][5] Press (*) for <> Access Codes • OR • press [*] and use the scroll keys to navigate to Access Codes and press [*] to select. Enter Master or Supervisor code. Enter User # Press (*) for <>...
  • Page 27: Naming A User

    Chapter If the tag is enrolled with another user the following message is Duplicate Tag displayed. Not Enrolled LCD Display To Delete a Proximity Tag From the desired user press or scroll to Prox Tag and press [*]. Press (*) for <> Prox Tag If a Prox Tag is enrolled for this user you will be asked if you would * To Delete Tag...
  • Page 28: Configuring Additional User Options

    Chapter 7.2 Configuring Additional User Options Users can also be assigned the following feature options: [1] Supervisor Code For more information see "Access Code Types". [2] Duress Code For more information see "Access Code Types". [3] Zone Bypass Grants the user the ability to bypass zones. [7] Bell Squawk Use to generate a bell squawk when setting/unsetting the system.
  • Page 29: User Functions [*] [6]

    Chapter 8.0 User Functions [*] [6] The PowerSeries Pro allows for a variety of user configurable functions as listed below: Event Buffer Auto Set Time Late To Open Contrast Control User's Walk Test Time and Date System Service/DLS Late To Open Time Buzzer Control Auto Set/Unset Voice Chime User Call-Up...
  • Page 30: Setting The Auto Set Time

    Chapter 8.4 Setting the Auto Set Time The system can be configured to auto set at a specific time on each day of the week. If a specific time is not configured for a day of the week the system will not set automatically on that day. This feature must be configured by installer.
  • Page 31: Changing The Brightness Of The Lcd Keypad

    Chapter When finished press [*] to return to the Ready state. Late to Open is Disabled To set the Late to Open time LCD Display From the User Function menu use the shortcut key [1][0] or press [<] Press (*) for <> [>] to scroll to Late to Open Time.
  • Page 32: Setting The Voice Chime Volume

    Chapter 8.12 Setting the Voice Chime volume This feature is only available when using an HS2LCDWFVPRO wireless keypad. To change Voice Chime volume LCD Display From the User Function menu use the shortcut key [1][6] or press [<] Press (*) for <> [>] to scroll to Voice Chime and press [*].
  • Page 33 Chapter Trigger each detector (zone) in sequence. A squawk occurs at the keypad, all LEDs on the keypad will flash and the violation will be recorded in the Event Buffer. Restore zones. Press [*][6][Master Code][8] to end the Walk Test. The system will notify the central station that the walk test has been terminated.
  • Page 34: Troubleshooting

    Chapter 9.0 Troubleshooting Occasionally, you may have a problem with your Alarm Controller or telephone line. If this happens, your Alarm Controller will identify the problem and displays an error message. Refer to the provided list when you see an error message on the display. If additional help is required, contact your distributor for service.
  • Page 35 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 Battery Trouble The system has Low Battery detected a battery No Battery trouble condition. Call for service. Low Battery Module 1-4 High-current O/P No Battery Module 1-4 High-current O/P Low Battery...
  • Page 36 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 Bus Voltage A module has detected HSM2HOST a low voltage on its Keypad Keypad 1- Corbus red terminal. Zone Expander Zone expander 1-30 1A Power Power Supply Module 1-4...
  • Page 37 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 Device Faults The system has Zone Zone label detected an issue with or 001-248 one or more Keypad Keypad 1- connected devices. Call for service. Siren Siren 1-16 Repeater...
  • Page 38 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 RF Delinquency The system has Zones Zone label detected wireless or 001-248 signal interference that is causing improper Keypad Keypad 1- system operation. Call for service. Siren Siren 1-16 Repeater...
  • Page 39 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 Module Tampers The system has HSM2HOST detected a tamper Keypad Keypad 1- condition with one or more modules on the Zone Expander Zone system. Call for Expander service.
  • Page 40 Chapter Trouble Notification Trouble Trouble Description Trouble Types Level 1 Condition Level 2 Level 3 AUX Trouble The system has Zone Zone detected a trouble on Power Power the AUX terminal. Supply Supply 1-8 High-current O/P Module 1-4 System Area 8 I/O Module Module 1- Bus Repeater...
  • Page 41: Managing Partitions

    Chapter 10.0 Managing Partitions A partition is a limited area of the premises which operates independently from the other areas. Partitioning a system can be beneficial if the property has outbuildings that need to be secured independently of a main area or if the home has a separate apartment. Each partition can have its own keypad, or a keypad can have access to all partitions.
  • Page 42: Fire And Co Zone Types

    Chapter Partition auto arm pre-alert Partition is not ready to be set Keypads can also be configured as global keypads, controlling all partitions. Global keypads must be configured by your installer. 10.2 Fire and CO Zone Types If a Fire zone generates an alarm only the partition the fire zone is assigned to will go into alarm. Other partitions retain their current state.
  • Page 43: Turning The Chime On/Off

    Chapter 11.0 Turning the Chime ON/OFF Turning the chime on audibly notifies you when an entry/exit sensor is activated. To turn the Chime ON or OFF LCD Display Press the Chime key or [*][4] to toggle the Chime function On Door Chime or Off for the current partition.
  • Page 44: Burglary Verification

    Chapter To configure a Command Output to Follow a Schedule LCD Display Press [*][7] then use the scroll keys to navigate to Follow Schedule Output Control <> and press [*], followed by your access code. Scroll to View then • OR Press (*) to •...
  • Page 45: Reference Sheets

    Chapter 12.0 Reference Sheets Fill out the following information for future reference and store this guide in a safe place. 12.1 System Information [F] FIRE [M] MEDICAL [P] PANIC The Exit Delay Time is _______ seconds. The Entry Delay Time is _______ seconds. 12.2 Service Contact Information Central Station Information Account #: _____________________ Telephone #: _____________________...
  • Page 46 Chapter Code Access Code Code Access Code Code Access Code Code Access Code Copy this page as needed to record additional access codes. Note:...
  • Page 47: Sensor/Zone Information

    Chapter 12.3.1 Sensor/Zone Information Sensor Protected Area Sensor Type Sensor Protected Area Sensor Type Copy this page as needed to record additional zone information. Note:...
  • Page 48: Safety Instructions

    Chapter 13.0 Safety Instructions This equipment is stationary-fixed and must be installed by Service Persons only (Service Person is defined as a person having the appropriate technical training and experience necessary to be aware of hazards to which that person may be exposed in performing a task and of measures to minimize the risks to that person or other persons).
  • Page 49 Chapter • HS2LCDWFVPRO8 • HS2TCHPRO • HS2TCHPROBLK...
  • Page 50: Locating Detectors And Escape Plan

    Chapter 14.0 Locating Detectors and Escape Plan The following information is for general guidance only and it is recommended that local fire codes and regulations be consulted when locating and installing smoke and CO alarms. 14.1 Smoke Detectors Research has shown that all hostile fires generate smoke to a greater or lesser extent. Experiments with typical fires in homes indicate that detectable quantities of smoke precede detectable levels of heat in most cases.
  • Page 51 Chapter Figure 3a Figure 4 14.2 Fire Escape Planning There is often very little time between the detection of a fire and the time it becomes deadly. It is very important that an emergency escape plan be developed and rehearsed. •...
  • Page 52 Chapter 14.3 Carbon Monoxide Detectors Carbon monoxide is colorless, odorless, tasteless, and very toxic, it also moves freely in the air. CO detectors can measure the concentration and sound a loud alarm before a potentially harmful level is reached. The human body is most vulnerable to the effects of CO gas during sleeping hours; therefore, CO detectors should be located in or as near as possible to sleeping areas of the home.
  • Page 53 Chapter 15.0 UK Compliance Statement In the UK this product is suitable for use in systems installed to conform to PD 6662:2017 at Grade 3 and environmental class II with the following notification options: A, B, C, D, E. Where HS3032, HS3128, and HS3248 are used with a single path signaling method (such as the Integrated Digital Dialer), please note the following limitation: Important Your attention is drawn to the fact that failure or compromise of single path signaling cannot be passed to the police.
  • Page 54 This End-User License Agreement (“EULA”) is a legal agreement between You (the company, individual or entity who acquired the Software and any related Hardware) and Digital Security Controls, a division of Tyco Safety Products Canada Ltd. (“DSC”), the manufacturer of the integrated security systems and the developer of the software and any related products or components (“HARDWARE”) which You acquired.
  • Page 55 Chapter 7. LIMITED WARRANTY (a) NO WARRANTY - DSC PROVIDES THE SOFTWARE “AS IS” WITHOUT WARRANTY. DSC DOES NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE. (b) CHANGES IN OPERATING ENVIRONMENT - DSC shall not be responsible for problems caused by changes in the operating characteristics of the HARDWARE, or for problems in the interaction of the SOFTWARE PRODUCT with non-DSC- SOFTWARE or HARDWARE PRODUCTS.
  • Page 56 Chapter 17.0 Installer Warning Warning Please Read Carefully Note To Installers: This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system. System Failures This system has been carefully designed to be as effective as possible.
  • Page 57 Chapter Passive infrared motion detectors operate by sensing changes in temperature. However their effectiveness can be reduced when the ambient temperature rises near or above body temperature or if there are intentional or unintentional sources of heat in or near the detection area.
  • Page 58 The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco Security Products will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
