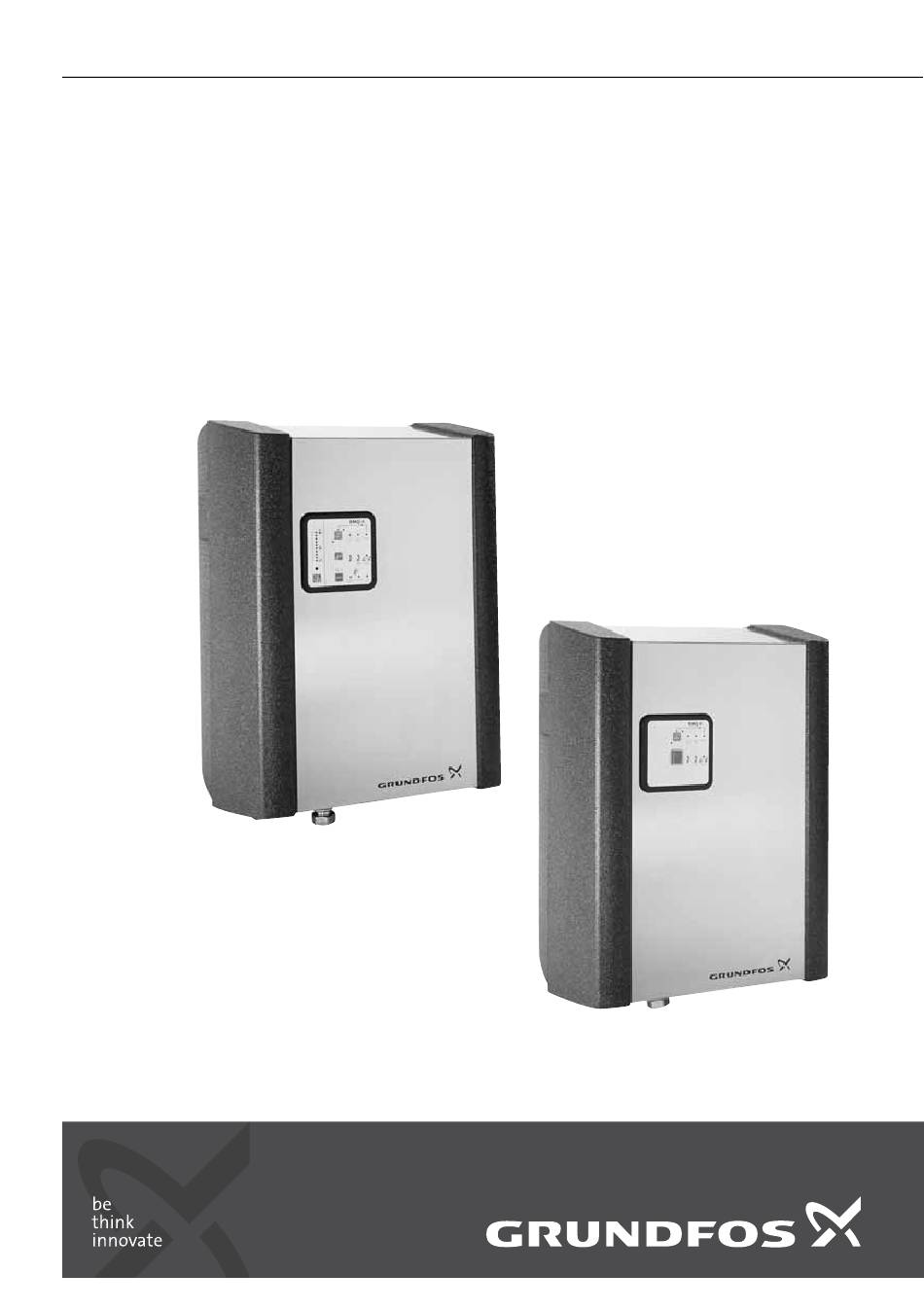

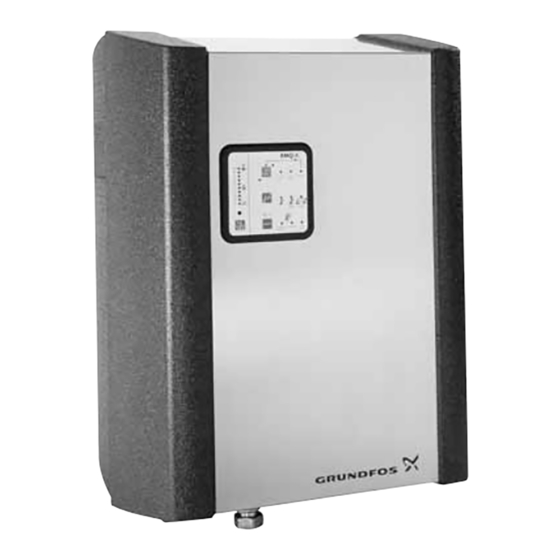

- Page 1 GRUNDFOS INSTRUCTIONS RMQ A, RMQ B Installation and operating instructions...
-
Page 2: Table Of Contents
English (GB) Installation and operating instructions Original installation and operating instructions This appliance can be CONTENTS used by children aged Page from 8 years and above General information and persons with 1.1 Hazard statements 1.2 Notes reduced physical, Safety instructions sensory or mental Intended use capabilities or lack of... -
Page 3: General Information
1. General information 2. Safety instructions Installation 1.1 Hazard statements CAUTION The symbols and hazard statements below may appear in Grundfos installation and operating Crushing of feet instructions, safety instructions and service instructions. Minor or moderate DANGER personal injury Indicates a hazardous situation which, if... -
Page 4: Intended Use
3. Intended use Startup The product is suitable for pumping clean, thin, non- CAUTION aggressive, non-toxic and non-explosive liquids without solid particles or fibres. Biological hazard Examples of liquids: Minor or moderate • potable water • rainwater. personal injury - Only use potable water 4. -
Page 5: Type Key
7. Technical data The RMQ components are shown in fig. 1. 7.1 Operating conditions Flow, Q max. RMQ -35 4.0 m RMQ -45 4.5 m Head, H max. RMQ -35 35 m RMQ -45 45 m Liquid temperature 5-35 °C Maximum inlet pressure, 6 bar mains-water connection... -
Page 6: Installation
8. Installation 8.2 Mounting • Remove the wall bracket by pulling it downwards until it disengages from the cabinet. Observe local regulations concerning • Fasten the wall bracket in the horizontal position limits for manual lifting or handling. using the rawlplugs and screws supplied. •... -
Page 7: Connection Of Mains-Water Pipe
3. Before fitting a bend, if required, check that the 8.4 Connection of mains-water pipe DN 70 pipe has a vertical fall of minimum 50 cm. The built-in float valve is designed for a maximum Connect the overflow to the sewage system via a pressure of 6.0 bar. -
Page 8: Connection Of Inlet Hose (Rainwater Collecting Tank)
8.5 Connection of inlet hose (rainwater 8.7 Float switch installation (only RMQ B) collecting tank) Make sure that the float switch does not The inlet hose must be minimum 1" (25 mm internal touch any obstacles in the collecting tank, diameter). -
Page 9: Level Sensor Installation (Only Rmq A)
Recommendation: Connect the collecting tank to Recommendation: Connect the collecting tank to the RMQ B unit with a pipe, such as DN 100. The the RMQ A unit with a pipe, such as DN 100. The cable and the inlet hose can be run through this pipe. sensor cable and the inlet hose can be run through this pipe. -
Page 10: Startup
9. Startup 5. Switch on the power supply. – The pump starts and the indicator light "Only" CAUTION on the operating panel is on (mains-water operation). If the indicator light is off, set the Biological hazard unit to "Only" by pressing the button. See Minor or moderate personal injury section 10. -
Page 11: Setting The Collecting Tank Height (Only Rmq A)
9.2 Setting the collecting tank height (only Significance of the display reading during the setting process. RMQ A) The height is the distance from the bottom of the Display reading tank to the overflow. Setting the collecting tank height on the operating Height [m] Permanently on Flashing... -
Page 12: Operating Panel
10. Operating panel Fig. 15 Operating panel, RMQ B Fig. 16 Operating panel, RMQ A... - Page 13 Pos. Part Description The indicator light shows that the pump is ready for operation. Press [On/Off] to start or stop the operation of the pump. The button can also be used for manual resetting of the alarm indication "Alarm". • Press the button once to reset the alarm indication. •...
-
Page 14: Fault Finding
11. Fault finding DANGER CAUTION Electric shock Biological hazard Death or serious personal injury Minor or moderate personal injury - Before starting work on the unit, make - Only use potable water or rainwater. sure that the RMQ unit is set to "Only". Then disconnect the power supply. -
Page 15: Disposal
1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste. - Page 16 Appendix Suction lift/suction hose Suction hose...
- Page 17 Declaration of conformity GB: EU declaration of conformity DE: EU-Konformitätserklärung We, Grundfos, declare under our sole responsibility that the product Wir, Grundfos, erklären in alleiniger Verantwortung, dass das Produkt RMQ, to which the declaration below relates, is in conformity with the RMQ, auf das sich diese Erklärung bezieht, mit den folgenden...
- Page 18 Argentina China Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500 Centro 10F The Hub, No. 33 Suhong Road Unit 1, Ground floor Industrial Garin Minhang District Siu Wai Industrial Centre 1619 Garín Pcia.
- Page 19 Malaysia Serbia Turkey GRUNDFOS Pumps Sdn. Bhd. Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. 7 Jalan Peguam U1/25 Omladinskih brigada 90b Sti. Glenmarie Industrial Park 11070 Novi Beograd Gebze Organize Sanayi Bölgesi 40150 Shah Alam Phone: +381 11 2258 740...
- Page 20 99714576 0819 ECM: 1267634 www.grundfos.com...
