Mean Well TDR-240-24 Installation Manual

Mean Well TDR-240-24 Installation Manual

Advertisement

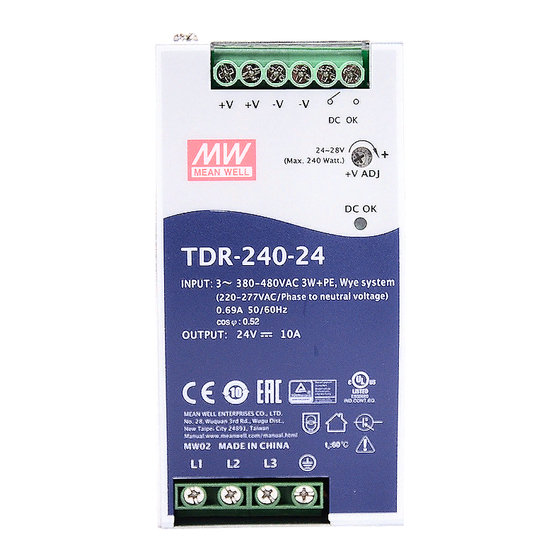

 Type:
TDR DIN rail with Three Phase or High Input Range(Series:TDR-240)
Models
TDR-240-24
3W+PE, Wye system (220-277 Vac /
TDR-240-48
Note.1:
Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to
control cabinets.
Note.2: Over voltage Category(OVC) III, according to EN61558-1, , EN61558-2-16, UL61010-1, UL61010-2-201.
Over voltage Category(OVC) II, according to EN62368-1, EN60664-1. Altitude 2000m.
Note.3: RATED INPUT VOLTAGE shall be fluctuated up to +10% and -10%.
Note.4: Others

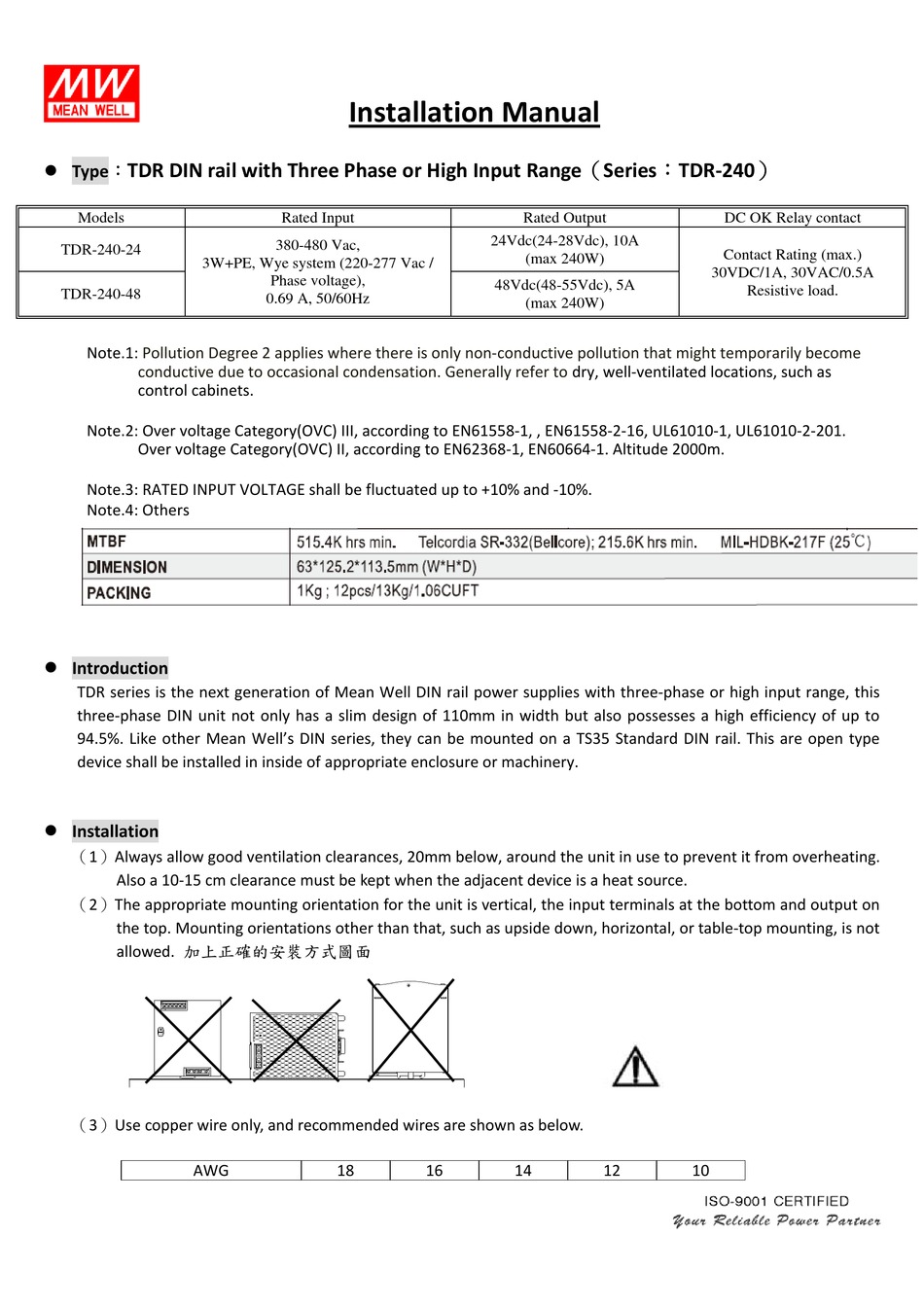

 Introduction
TDR series is the next generation of Mean Well DIN rail power supplies with three-phase or high input range, this
three-phase DIN unit not only has a slim design of 110mm in width but also possesses a high efficiency of up to
94.5%. Like other Mean Well's DIN series, they can be mounted on a TS35 Standard DIN rail. This are open type
device shall be installed in inside of appropriate enclosure or machinery.
 Installation
(1)Always allow good ventilation clearances, 20mm below, around the unit in use to prevent it from overheating.
Also a 10-15 cm clearance must be kept when the adjacent device is a heat source.
(2)The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed. 加上正確的安裝方式圖面
(3)Use copper wire only, and recommended wires are shown as below.
AWG
Installation Manual
Rated Input
380-480 Vac,
Phase voltage),
0.69 A, 50/60Hz
18
16
Rated Output
24Vdc(24-28Vdc), 10A
(max 240W)
48Vdc(48-55Vdc), 5A
(max 240W)
dry, well-ventilated locations, such as
14
12
DC OK Relay contact
Contact Rating (max.)
30VDC/1A, 30VAC/0.5A
Resistive load.
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDR-240-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mean Well TDR-240-24

  • Page 1 DIN unit not only has a slim design of 110mm in width but also possesses a high efficiency of up to 94.5%. Like other Mean Well’s DIN series, they can be mounted on a TS35 Standard DIN rail. This are open type device shall be installed in inside of appropriate enclosure or machinery.
  • Page 2 Installation Manual Rated Current of 6-10A 13-16A 16-25A 25-32A Equipment (Amp) Cross-section of 0.75 1.00 Lead(mm Note: Current each wire carries should be de-rated to 80% of the current suggested above when using 5 or more wires connected to the unit. Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are securely fixed to prevent poor contact.
  • Page 3 Installation Manual (10)For other information about the products, please refer to www.meanwell.com for details. (11) If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. (12) The safety of any system incorporating the equipment is the responsibility of the assembler of the system...
  • Page 4 Installation Manual  Warning / Caution !! “CAUTION:FOR USE IN A CONTROLLED ENVIRONMENT. REFER TO MANUAL FOR ENVIRONMENTAL CONDITION” (1)Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do not remove the case of the power supply by yourself! (2)Risk of electric arcs and electric shock (danger to life).
  • Page 5 Nettoyez le bornier et les boîtiers avec un chiffon doux, sec et non pelucheux. N'utilisez pas de liquides ou de produits de nettoyage. Manufacturer: MEAN WELL ENTERPRISES Co., LTD. No.28, Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, Taiwan Tel: +886-2-2299-6100 Web: www.meanwell.com...

This manual is also suitable for:

Tdr-240-48
