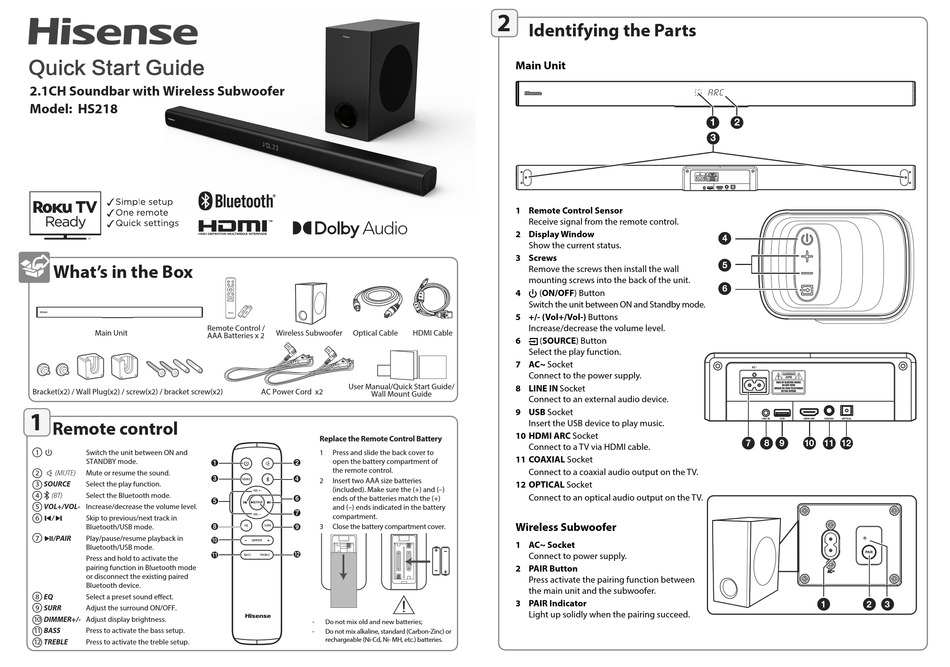

Quick Start Guide

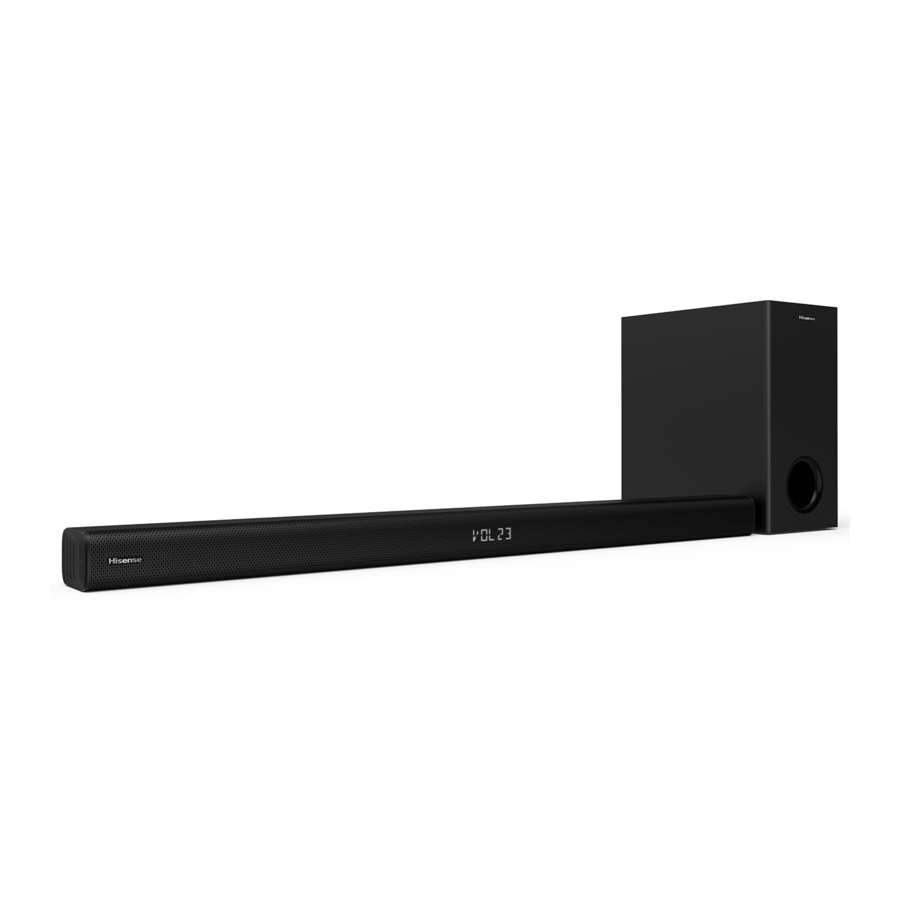

2.1CH Soundbar with Wireless Subwoofer
Model: HS218
What's in the Box
Remote Control /
Main Unit
AAA Batteries x 2
Bracket(x2) / Wall Plug(x2) / screw(x2) / bracket screw(x2)
1
Remote control
1 Switch the unit between ON and
STANDBY mode.
2 (MUTE) Mute or resume the sound.
3 SOURCE Select the play function.
4 (BT) Select the Bluetooth mode.
5 VOL+/VOL- Increase/decrease the volume level.
6 / Skip to previous/next track in
Bluetooth/USB mode.
/PAIR
7 Play/pause/resume playback in
Bluetooth/USB mode.
Press and hold to activate the
pairing function in Bluetooth mode
or disconnect the existing paired
Bluetooth device.
8 EQ Select a preset sound e ect.
9 SURR Adjust the surround ON/OFF.
10 DIMMER+/- Adjust display brightness.
11 BASS Press to activate the bass setup.
12 TREBLE Press to activate the treble setup.
Wireless Subwoofer Optical Cable
User Manual/Quick Start Guide/
AC Power Cord x2
Wall Mount Guide

Replace the Remote Control Battery

1 Press and slide the back cover to
open the battery compartment of
the remote control.
2 Insert two AAA size batteries
(included). Make sure the (+) and (–)
ends of the batteries match the (+)
and (–) ends indicated in the battery

compartment.


3 Close the battery compartment cover.



- Do not mix old and new batteries;
- Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
2

Identifying the Parts

Main Unit
1 Remote Control Sensor
Receive signal from the remote control.
2 Display Window
Show the current status.
3 Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
4 (ON/OFF) Button
Switch the unit between ON and Standby mode.
5 +/- (Vol+/Vol-) Buttons
Increase/decrease the volume level.
HDMI Cable
6 (SOURCE) Button
Select the play function.
7 AC~ Socket
Connect to the power supply.
8 LINE IN Socket
Connect to an external audio device.
9 USB Socket
Insert the USB device to play music.
10 HDMI ARC Socket
Connect to a TV via HDMI cable.
11 COAXIAL Socket
Connect to a coaxial audio output on the TV.
12 OPTICAL Socket
Connect to an optical audio output on the TV.
Wireless Subwoofer
1 AC~ Socket
Connect to power supply.
2 PAIR Button
Press activate the pairing function between
the main unit and the subwoofer.
3 PAIR Indicator
Light up solidly when the pairing succeed.
Identifying the Parts
ARC
1 2
3
4
5
6
7 8 9 10 11 12
1
6
2 3
