Hisense HS218 Quick Start Manual

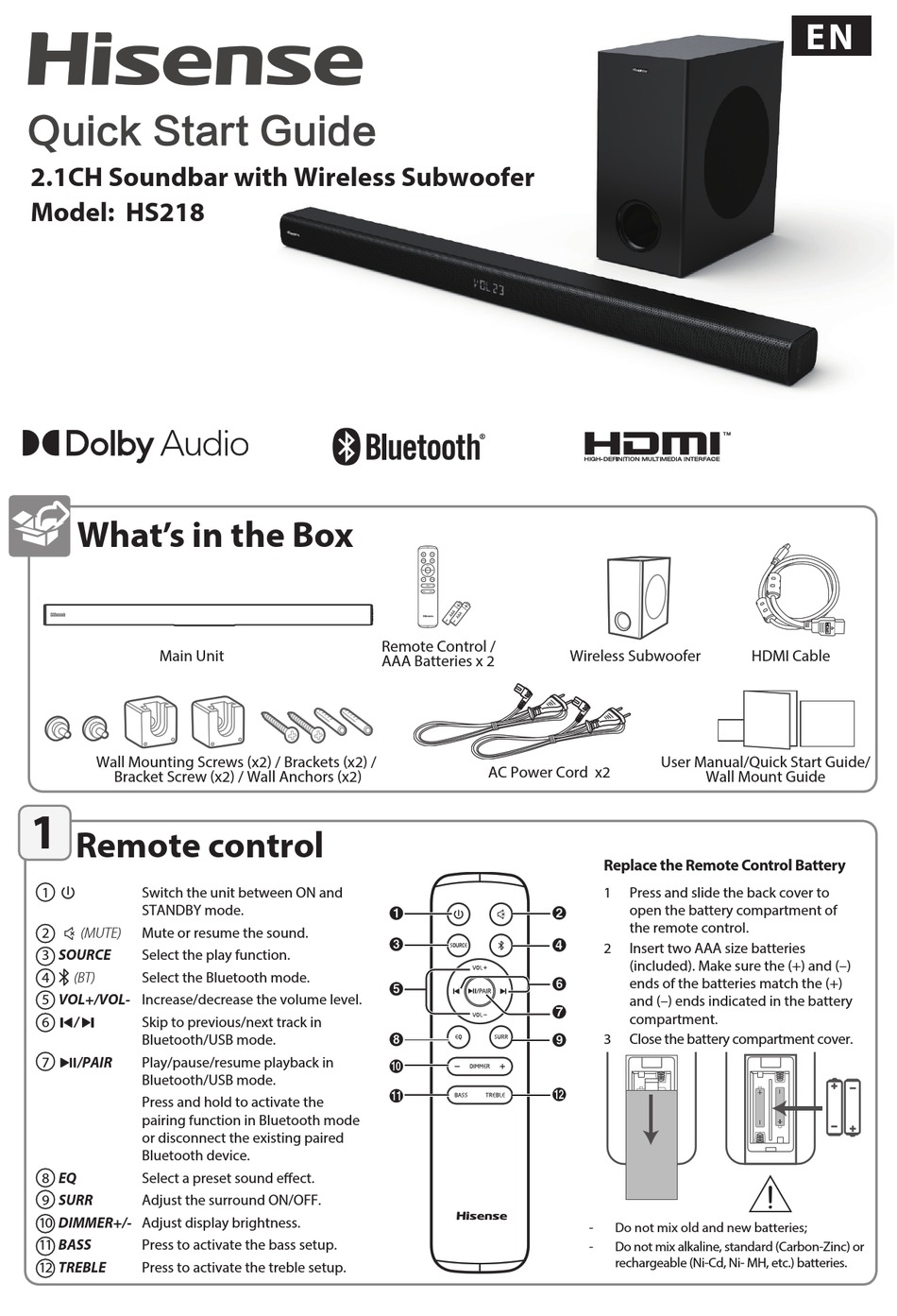

Quick Start Guide

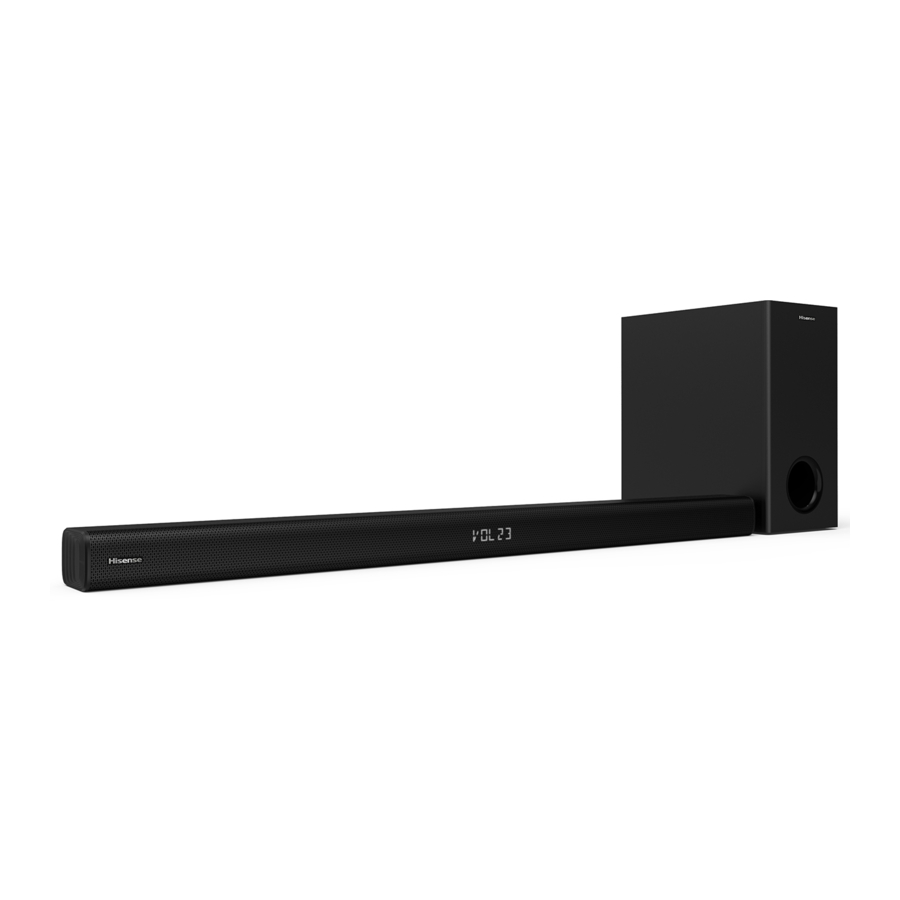

2.1CH Soundbar with Wireless Subwoofer
Model: HS218
What's in the Box
Main Unit
Wall Mounting Screws (x2) / Brackets (x2) /
Bracket Screw (x2) / Wall Anchors (x2)
1
Remote control
1 Switch the unit between ON and
STANDBY mode.
2 (MUTE) Mute or resume the sound.
3 SOURCE
Select the play function.
4 Select the Bluetooth mode.
(BT)
5 VOL+/VOL- Increase/decrease the volume level.
/
6 Skip to previous/next track in
Bluetooth/USB mode.
/PAIR
7 Play/pause/resume playback in
Bluetooth/USB mode.
Press and hold to activate the
pairing function in Bluetooth mode
or disconnect the existing paired
Bluetooth device.
8 EQ Select a preset sound e ect.
9 SURR Adjust the surround ON/OFF.
10 DIMMER+/- Adjust display brightness.
11 BASS Press to activate the bass setup.
12 TREBLE
Press to activate the treble setup.
Remote Control /
AAA Batteries x 2
AC Power Cord x2
Wireless Subwoofer
User Manual/Quick Start Guide/
Wall Mount Guide
Replace the Remote Control Battery
1 Press and slide the back cover to
open the battery compartment of
the remote control.
2 Insert two AAA size batteries
(included). Make sure the (+) and (–)
ends of the batteries match the (+)
and (–) ends indicated in the battery
compartment.
3 Close the battery compartment cover.
- Do not mix old and new batteries;
- Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
EN
HDMI Cable
