vacon • 3
1.2

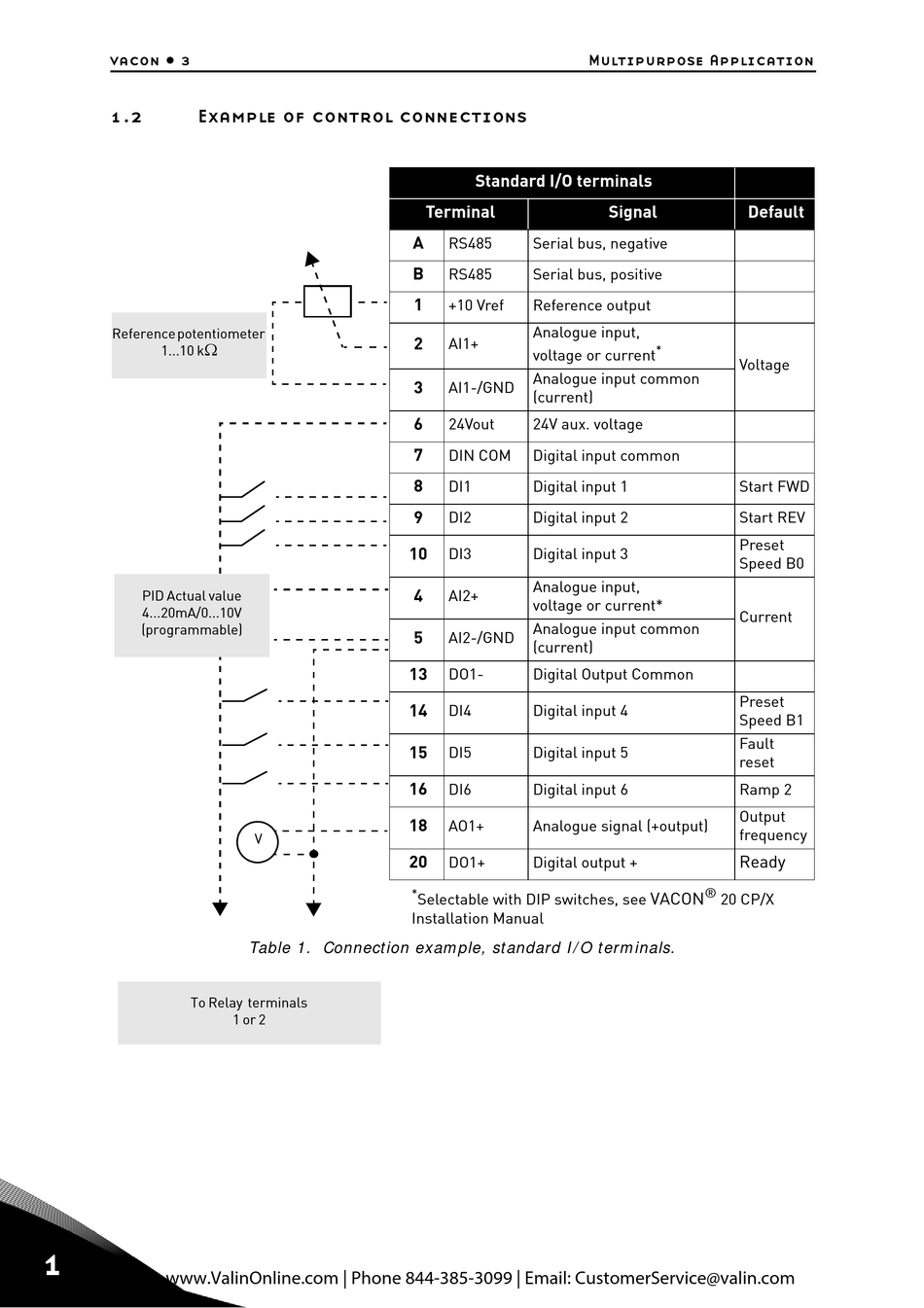

Example of control connections
Reference potentiometer
1...10 k
PID Actual value
4...20mA/0...10V
(programmable)
To Relay terminals
1
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
V
Table 1. Connection example, standard I/O terminals.
1 or 2
Standard I/O terminals
Terminal
A
RS485
Serial bus, negative
B
RS485
Serial bus, positive
1
+10 Vref
Reference output
Analogue input,
2
AI1+
voltage or current
Analogue input common
3
AI1-/GND
(current)
6
24Vout
24V aux. voltage
7
DIN COM
Digital input common
8
DI1
Digital input 1
9
DI2
Digital input 2
10
DI3
Digital input 3
Analogue input,
4
AI2+
voltage or current*
Analogue input common
5
AI2-/GND
(current)
13
DO1-
Digital Output Common
14
DI4
Digital input 4
15
DI5
Digital input 5
16
DI6
Digital input 6
18
AO1+
Analogue signal (+output)
20
DO1+
Digital output +
*
Selectable with DIP switches, see
Installation Manual
Multipurpose Application
Signal
Default
*
Voltage
Start FWD
Start REV
Preset
Speed B0
Current
Preset
Speed B1
Fault
reset
Ramp 2
Output
frequency
Ready
®
VACON
20 CP/X
