H3C T300M-XS Installation, Quick Start

H3C T300M-X-S Outdoor Enclosure Installation Quick Start-AP101
H3C T300M-X-S室外机壳 快速安装指南-AP101

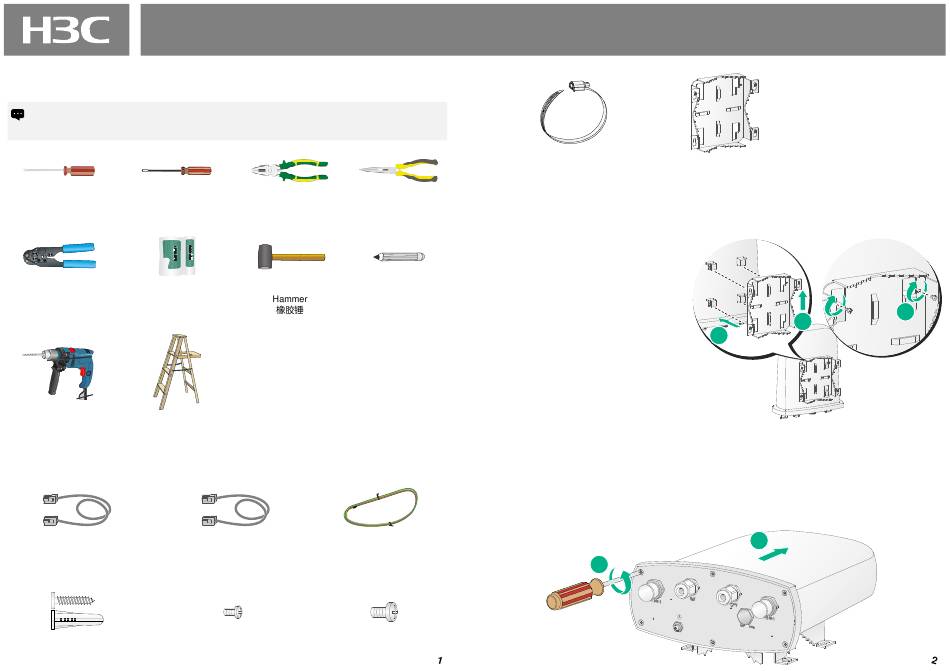

Tool list工具参考
The installation tools are not provided with the enclosure. Prepare them yourself.
设备不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Phillips screwdriver Flat-head screwdriver
十字螺丝刀 一字螺丝刀
Wire crimper Network cable tester
压线钳 测线仪
Hammer drill Ladder
冲击钻 梯子
Introduction to installation accessories安装附件介绍
RJ-45 straight-through
Ethernet cable × 4 Ethernet cable (user supplied)
RJ-45直通以太网线缆 × 4 RJ-45直通以太网线缆（用户自备）
Screw anchor and screw
壁挂螺钉和膨胀管
Wire-stripping pliers Needle-nose pliers
剥线钳
RJ-45 straight-through Grounding cable
(user supplied)
接地线（用户自备）
M3 × 6 screw × 2 M4 × 8 screw × 4
M3×6螺钉 × 2 M4×8螺钉 × 4
Band clamp × 2
喉箍 × 2

Installing the pole-mounting bracket to the enclosure

尖嘴钳
安装T300M-X-S产品抱杆支架
Use M3 × 6 screws to attach the pole-
Marker
mounting bracket to the rear panel of the
记号笔
enclosure.
使用M3x6螺钉将抱杆支架固定到设备背部。

Removing the protective cover from the enclosure

拆卸T300M-X-S产品外壳
Use a Phillips screwdriver to remove the six mounting screws on the enclosure, and then remove the
protective cover. Keep the screws safe for future use.
使用十字螺丝刀逆时针拧下设备前面板的六颗螺钉，并妥善保存，取下设备外壳。
Pole-mounting bracket
抱杆支架
1
2
1
3
2
