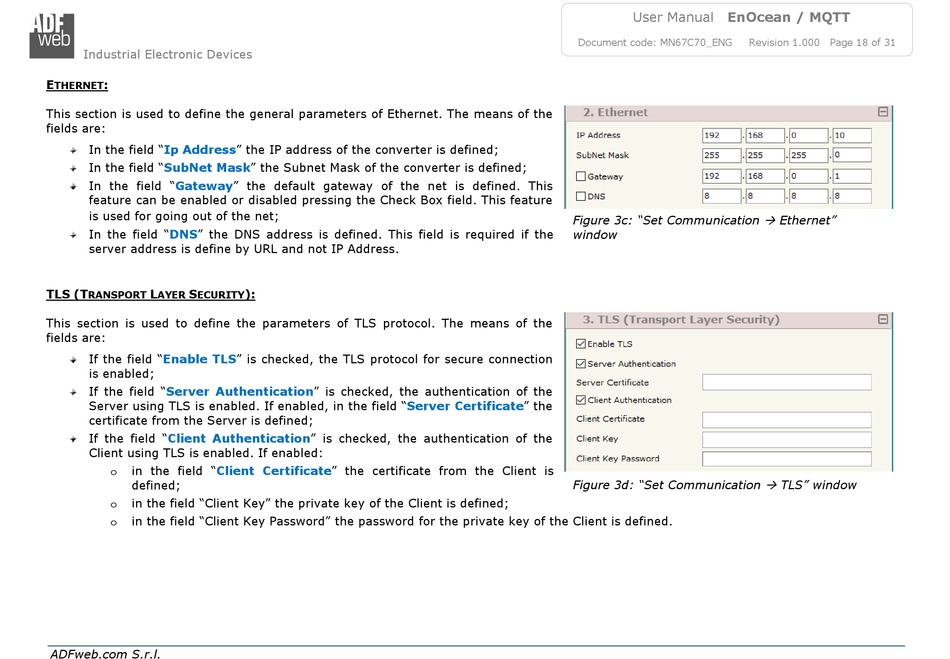

ADF Web HD67C70-B2 User Manual page 18

Industrial Electronic Devices
E :
THERNET
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the field "Ip Address" the IP address of the converter is defined;
In the field "SubNet Mask" the Subnet Mask of the converter is defined;
In the field "Gateway" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the
server address is define by URL and not IP Address.
TLS (T L S
RANSPORT AYER ECURITY
This section is used to define the parameters of TLS protocol. The means of the
fields are:
If the field "Enable TLS" is checked, the TLS protocol for secure connection
is enabled;
If the field "Server Authentication" is checked, the authentication of the
Server using TLS is enabled. If enabled, in the field
certificate from the Server is defined;
If the field "Client Authentication" is checked, the authentication of the
Client using TLS is enabled. If enabled:
in the field "Client
o
defined;
in the field "Client Key" the private key of the Client is defined;
o
in the field "Client Key Password" the password for the private key of the Client is defined.
o
ADFweb.com S.r.l.
):
"Server
Certificate" the certificate from the Client is
User Manual EnOcean / MQTT
Document code: MN67C70_ENG
Figure 3c: "Set Communication
window
Certificate" the
Figure 3d: "Set Communication
Revision 1.000 Page 18 of 31
 Ethernet"
 TLS" window
