SILENT KNIGHT 5860 Installation Quick Reference

Flush Mounting

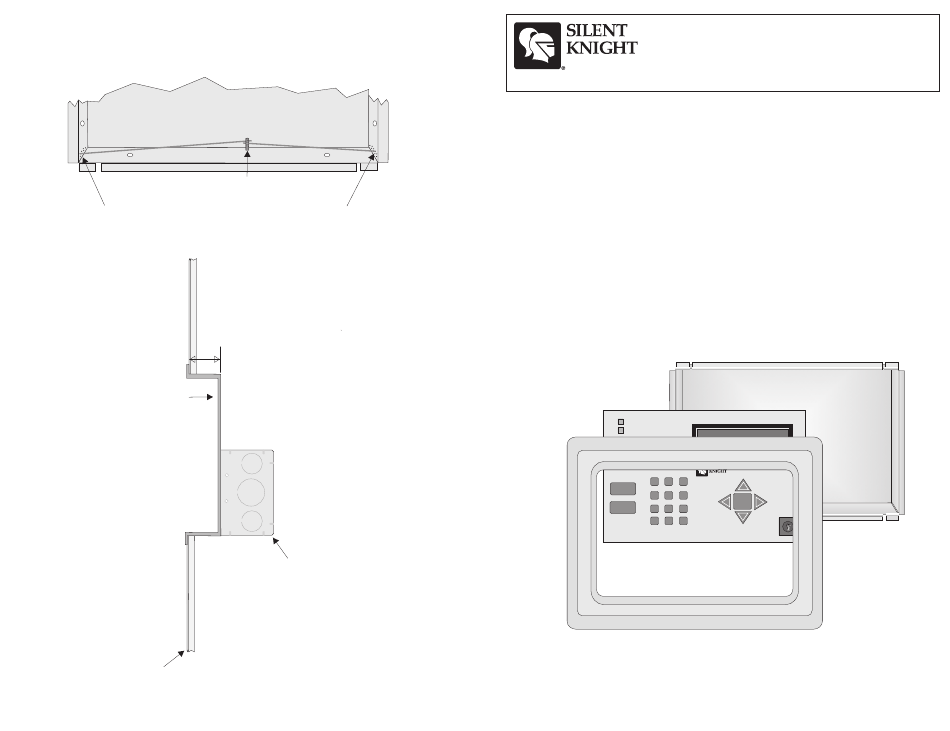

Securing Back Box to Wall for Flush Mounting
Attach second set of wires to top of back box.
Secure the wires behind this screw.
Insert wires at an angle into the first holes past the sheet rock.
Flush Mounting with Electrical Box (Example)
When flush-mounting using an
electrical box, the box must be
1-1/4" (min.) from face of wall.
1-1/4"
Annunciator
back box
Sheet rock
Electrical Box
4

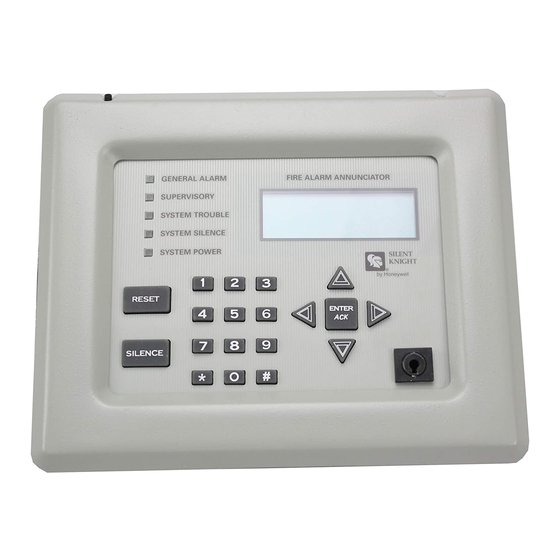

Model 5860 Remote Fire Annunciator
Refer to 5820 installation manual (P/N 150972) for complete information.

Installation Steps

1. Make sure power is off at the panel.
2. Annunciator is assembled at the factory. Disassemble as needed.
3. Mount annunciator. See pages 3-4.
4. Wire annunciator to the panel. See page 2.
5. Use dipswitches to set annunciator ID. See page 2.
Annunciator Parts
Electronic Assembly
(front view)
GENERAL ALARM
SUPERVISORY
SYSTEM TROUBLE
SYSTEM SILENCE
SYSTEM POWER
1 2 3
RESET
4 5 6
SILENCE
7 8 9
* 0 #
Bezel (external ring)
Assembled annunciator also includes mounting
wires, 2 set screws.
P/N 151042
Installation Quick Reference
Back Box
FIRE ALARM ANNUNCIATOR
MODEL 5860
ENTER
