SILENT KNIGHT IntelliKnight 5820XL Installation Manual

Hide thumbs Also See for IntelliKnight 5820XL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Basic Operating Instructions, Operation & Installation Manual
Content
Section 1
.............................................................................................................................................. 1-1
1.1
Overview of Basic System ....................................................................................................................... 1-1
1.1.1 Hardware Features ............................................................................................................................ 1-1
1.1.2 Software Features ............................................................................................................................. 1-2
1.2
About this Manual .................................................................................................................................... 1-2
1.2.1 Terms Used in this Manual ............................................................................................................... 1-2
1.3
Compatible Products ................................................................................................................................ 1-3
1.4
How to Contact Silent Knight .................................................................................................................. 1-4
Section 2
2.1
Federal Communications Commission (FCC) ......................................................................................... 2-1
2.2
Underwriters Laboratories (UL) .............................................................................................................. 2-2
2.2.1 Requirements for All Installations .................................................................................................... 2-2
2.2.2 Requirements for Central Station Fire Alarm Systems .................................................................... 2-2
2.2.3 Requirements for Local Protected Fire Alarm Systems ................................................................... 2-2
Section 3
3.1
What's in the Box? ................................................................................................................................... 3-1
3.2
Environmental Specifications .................................................................................................................. 3-1
3.3
Electrical Specifications ........................................................................................................................... 3-2
3.4
Wiring Specifications ............................................................................................................................... 3-3
3.5
Board Assembly Diagram ........................................................................................................................ 3-5
3.6
Calculating Current Draw and Standby Battery ...................................................................................... 3-6
3.6.1 Worksheet Requirements .................................................................................................................. 3-6
Filling in the Current Draw Worksheet, Table 3-2 (Section 3.6.2) ....................................... 3-6
3.6.2 Current Draw Worksheet .................................................................................................................. 3-7
3.6.2.1 Maximum Battery Standby Load ........................................................................................... 3-8
3.7
Installation Tasks Overview ..................................................................................................................... 3-9
Section 4
4.1
Mounting the Control Panel Cabinet ....................................................................................................... 4-1
4.1.1 Removing the 5820XL Assembly from the Housing ....................................................................... 4-1
4.2
AC Connection ......................................................................................................................................... 4-2
4.3
Battery Connection .................................................................................................................................. 4-3
151137
............................................................................................... 3-1
...................................................................................................... 4-1
................................... 2-1
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliKnight 5820XL and is the answer not in the manual?

Questions and answers

Related Manuals for SILENT KNIGHT IntelliKnight 5820XL

Summary of Contents for SILENT KNIGHT IntelliKnight 5820XL

  • Page 1: Table Of Contents

    1.1.2 Software Features ..........................1-2 About this Manual ............................ 1-2 1.2.1 Terms Used in this Manual ....................... 1-2 Compatible Products ..........................1-3 How to Contact Silent Knight ........................1-4 Section 2 Agency Listings, Approvals, and Requirements ........2-1 Federal Communications Commission (FCC) ..................2-1 Underwriters Laboratories (UL) ......................
  • Page 2 4.3.1 AB-33 Accessory Cabinet ........................ 4-4 4.3.1.1 Installing the AB-33 Accessory Cabinet and Batteries ............4-4 SBUS Wiring ............................4-6 4.4.1 Calculating Wiring distance for SBUS modules ................4-6 Wiring Distance calculation example: ................... 4-8 4.4.2 Wiring Configurations ........................4-9 Remote Annunciator 5860 Installation ....................
  • Page 3 Section 5 SLC Device Installation ......................5-1 Types of SLC Devices ..........................5-1 Maximum Number of Devices ......................... 5-1 Wiring Requirements for SLC Devices ....................5-2 5.3.1 Wiring 5815XL in Style 4 (Class B) Configuration ................. 5-2 5.3.2 Wiring 5815XL in Style 6 (Class A) Configuration ................. 5-3 Heat and Smoke Detector Installation .....................
  • Page 4 Section 7 Programming ............................7-1 Modules ..............................7-1 7.1.1 Edit Modules ............................. 7-1 7.1.1.1 Naming Modules ........................7-2 7.1.1.2 Module, Wiring Class ......................7-2 7.1.2 Adding a Module ..........................7-2 7.1.3 Deleting a Module ..........................7-3 Zone ................................. 7-4 7.2.1 Edit Zone ............................7-4 7.2.1.1 Edit Zone Name ........................
  • Page 5 7.5.2.1 Dialing Prefix ........................7-31 7.5.2.2 Number of Answer Rings ....................7-31 7.5.2.3 Dial Option (TouchTone or Pulse) ..................7-32 7.5.2.4 Rotary Format ........................7-32 7.5.2.5 Line Monitor ........................7-32 7.5.2.6 Ground Start Relay ....................... 7-32 7.5.2.7 Answering Machine Bypass ....................7-33 7.5.3 Sys.
  • Page 6 Section 9 Reporting ..............................9-1 Receivers Compatible with the Control Panel ..................9-1 Ademco Contact ID Dialer Output ......................9-2 SIA Dialer Output ........................... 9-6 Section 10 Testing and Troubleshooting ..................10-1 10.1 Troubleshooting ............................. 10-1 10.2 Common Problems ..........................10-1 10.2.1 Event History ..........................

  • Page 7: Introduction

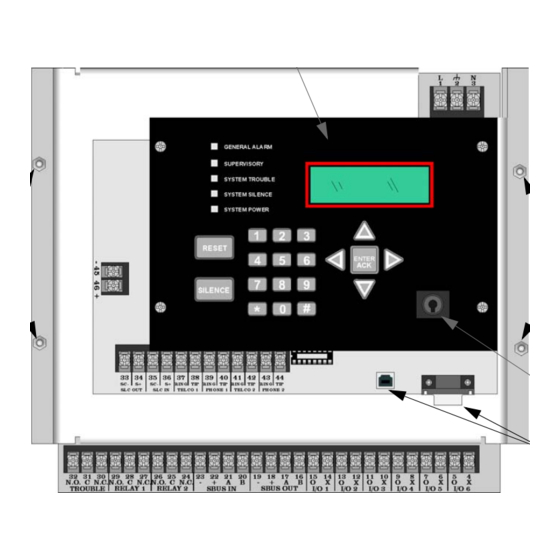

    The IntelliKnight 5820XL Fire Alarm Control / Communicator is an analog addressable fire control system that meets the requirements of UL 864. Overview of Basic System The IntelliKnight 5820XL base system is packaged as an assembled stack of 3 circuit boards mounted to an aluminum housing. 1.1.1 Hardware Features •...

  • Page 8: Software Features

    Please let us know if the manual does not meet your needs in any way. We value your feedback! 1.2.1 Terms Used in this Manual The following terminology is used with the IntelliKnight 5820XL system: Term Description Signaling Line Circuit...

  • Page 9: Compatible Products

    Introduction Compatible Products The chart below lists the products available from Silent Knight for use with the IntelliKnight 5820XL. Model Description SLC Devices SD500-AIM Contact Monitor Module (switch input). Standard size. (This device replaces Model SD500-FRCM-4. See Note below.) SD500-MIM Mini Contact Monitor Module (switch input).

  • Page 10: How To Contact Silent Knight

    IntelliKnight 5820XL Installation Manual The following modems have been tested by Silent Knight for compatibility with the 5820XL and the 5590/IntelliView communication software packages: Table 1-1: Compatible Modems Manufacturer Model US Robotics 28.8 LifeStyle Motorola 28.8, 3400 series Premier 33.6...

  • Page 11: Agency Listings, Approvals, And Requirements

    Section 2 Agency Listings, Approvals, and Requirements Federal Communications Commission (FCC) 1. The following information must be provided to the telephone company before the IntelliKnight 5820XL can be connected to the phone lines: Manufacturer: Silent Knight Security Systems Model Number:...

  • Page 12: Underwriters Laboratories (Ul)

    IntelliKnight 5820XL Installation Manual Underwriters Laboratories (UL) 2.2.1 Requirements for All Installations General requirements are described in this section. When installing an individual device, refer to the specific section of the manual for additional requirements. The following subsections list specific requirements for each type of installation (for example, Central Station Fire Alarm systems, Local Protected Fire Alarm systems, and so on).

  • Page 13: Before You Begin Installing

    This section of the manual is intended to help you plan your tasks to facilitate a smooth installation. Please read this section thoroughly, especially if you are installing a 5820XL panel for the first time. What’s in the Box? The IntelliKnight 5820XL ships with the following hardware: • A cabinet with all hardware assembled •...

  • Page 14: Electrical Specifications

    IntelliKnight 5820XL Installation Manual Electrical Specifications Table 3-1: Terminal Strip Description and Electrical Rating Rating Terminal # and Label Description Voltage Current AC input (hot) 120 VAC, 60 Hz 2.5 A Earth ground AC input (neutral) 120 VAC 60 Hz 2.5 A...

  • Page 15: Wiring Specifications

    Before You Begin Installing Table 3-1: Terminal Strip Description and Electrical Rating Rating Terminal # and Label Description Voltage Current SLC terminals 32 VDC 150 mA SLC OUT Used for Class A installations SLC IN Ring Phone Line 1 Telco Ring Phone Line 1 Telco Tip Ring Phone Line 1 Premises Ring...
  • Page 16 IntelliKnight 5820XL Installation Manual Figure 3-1 Wire Routing Example 151137...

  • Page 17: Board Assembly Diagram

    Board Assembly Diagram To AC On-board Annunciator Chassis Mounting Chassis Nuts Mounting Nuts Key Switch Input Ground Start Relay Socket Figure 3-2 Model 5820XL Assembly Figure 3-2 shows the circuit boards, metal housing and annunciator that attach the 5820XL assembly to the cabinet. If you should need to remove the board assembly for repair, remove the four mounting nuts which hold the assembly in the cabinet.

  • Page 18: Calculating Current Draw And Standby Battery

    If the current is above 5.0 A you will need to use a notification power expander(s) such as the Silent Knight 5395 or the 5895XL intelligent power expander, to distribute the power loads so that the 5820XL or the power expanders do not exceed their power rating. Refer to the current draw worksheets provided with the 5395 or 5895XL manuals so you do not exceed their power requirements.

  • Page 19: Current Draw Worksheet

    Current For each device use this formula: This column This column Current per number of devices. Standby: 140 mA 140 mA IntelliKnight 5820XL Fire Panel (Current draw from battery) Alarm: 260 mA 260 mA Standby: 0.55 mA Addressable SLC Devices (381 max.)

  • Page 20: Maximum Battery Standby Load

    Warning! Silent Knight does not support the use of batteries smaller than those listed in Table 3-3. If you use a battery too small for the installation, the system could overload the battery resulting in the installation having less than the required 24 hours standby power.

  • Page 21: Installation Tasks Overview

    This section of the manual is a chart listing tasks that need to be performed when installing the IntelliKnight 5820XL system. The chart is intended to be a handy way for you to make sure you have completed all necessary tasks. Unless noted, these tasks do not have to be performed in the order they are listed here.
  • Page 22 IntelliKnight 5820XL Installation Manual See Sec. Task (for more info.) Change clock display format (12-hour with AM/PM by default). 7.5.6.4 Enable/disable day/night sensitivity (disabled by default). 7.5.4 Select holiday schedule (up to 18 days) if installation is using day/night 7.5.5 sensitivity.
  • Page 23 Before You Begin Installing See Sec. Task (for more info.) Addressable relay modules Assign addressable relay modules to output groups through programming. (JumpStart assigns all relay modules to Group 1.) LED output points (from the 5880 LED Driver or 5865/66 LED Annunciator) Assign LED modules to output groups through programming.
  • Page 24 IntelliKnight 5820XL Installation Manual 3-12 151137...

  • Page 25: Control Panel Installation

    Section 4 Control Panel Installation Caution! To avoid the risk of electrical shock and damage to the unit, power should be OFF at the control panel while installing or servicing. Mounting the Control Panel Cabinet Read the environmental specifications in Section 3.2 before mounting the control panel cabinet.

  • Page 26: Ac Connection

    IntelliKnight 5820XL Installation Manual AC Connection At installation, connect the AC terminals to 120 VAC source as shown in Figure 4-1. It may be necessary for a professional electrician to make this connection. The AC terminals are rated at 120 VAC, 60 Hz, 2.5A.

  • Page 27: Battery Connection

    Control Panel Installation Battery Connection The control panel battery charge capacity is 7.0 to 33.0 AH. Use 12V batteries of the same AH rating. Determine the correct AH rating as per your current load calculation (see Section 3.6). Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase the AH rating.

  • Page 28: Accessory Cabinet

    IntelliKnight 5820XL Installation Manual 4.3.1 AB-33 Accessory Cabinet The AB-33 Accessory cabinet can be used when your backup batteries requirements use backup batteries that are too large to fit into the main control panel cabinet. The AB-33 cabinet holds batteries up to the 33 AH size.
  • Page 29 Control Panel Installation 3. Run extended battery cable from control panel cabinet through conduit to AB-33 cabinet. See Figure 4-5. AB-33 Cabinet Cover Screws Conduit Coupler Conduit AB-33 Cabinet Cover Screws Figure 4-5 Battery Connections in the AB-33 Cabinet Note: Any one of the cabinet knock-outs (on either the main control panel or the AB-33 cabinet), that are not pre- viously being used may be utilized to connect conduit between the two cabinets.

  • Page 30: Sbus Wiring

    IntelliKnight 5820XL Installation Manual SBUS Wiring This section contains information on calculating SBUS wire distances and the types of wiring configurations (Class A and B). 4.4.1 Calculating Wiring distance for SBUS modules The following instructions will guide you in determining the type of wire and the maximum wiring distance that can be used with control panel SBUS accessory modules.
  • Page 31 Control Panel Installation These cases are marked in the chart with an asterisk (*). Maximum length can never be more than 6,000 feet, regardless of gauge used. (The formula used to generate this chart is shown in the note below). Table 4-1: Wire Distances Per Wire Gauge Wiring Distance: SBUS Modules to Panel Total Worst Case...

  • Page 32: Wiring Distance Calculation Example

    IntelliKnight 5820XL Installation Manual Wiring Distance calculation example: Suppose a system is configured with the following SBUS modules: 2 - Module 5860 Fire Annunciator 1 - 5895XL Intelligent Power Expander 1 - 5865 LED Fire Annunciator 1 - 5824 Parallel/Serial Interface...

  • Page 33: Wiring Configurations

    Control Panel Installation 4.4.2 Wiring Configurations Figure 4-7 illustrates Class A wiring configuration and Figure 4-8 illustrates Class B configuration. Supervised Power Limited Figure 4-7 SBUS Class A Wiring Supervised Power Limited Figure 4-8 SBUS Class B Wiring 151137...

  • Page 34: Remote Annunciator 5860 Installation

    The optional Model 5860 Remote Annunciator, shown in Figure 4-9, performs the same functions as the on-board annunciator. Operation is identical. Up to 8 annunciators can be added to the IntelliKnight 5820XL system. Figure 4-9 Model 5860 Remote Annunciator, Front View 5860 installation involves the following steps: 1.

  • Page 35: Mounting The 5860

    Control Panel Installation 4.5.1 Mounting the 5860 This section of the manual describes mounting the remote annunciator. The annunciator can be flush- or surface-mounted. Figure 4-10 shows the parts of the annunciator. Instructions for disassembling and mounting appear on the following pages. Figure 4-10 Annunciator Parts 151137 4-11...

  • Page 36: Flush Mounting

    IntelliKnight 5820XL Installation Manual The 5860 comes from the factory fully assembled. You must disassemble it for mounting. To disassemble the annunciator, use a 5/64 hex wrench to remove the set screws, located on the bottom of the annunciator bezel. (See Figure 4-11 for location of the set screws.) Figure 4-11 Annunciator Back Box and Bezel Details 4.5.1.1 Flush Mounting...

  • Page 37: Flush Mounting With An Electrical Box

    Control Panel Installation Flush Mounting with an Electrical Box The 5860 annunciator can be used with the following types of electrical boxes: 4S, single- gang, and double-gang. If an electrical box is used, the box must be 1-3/8” back from the face of the wall to accommodate the annunciator.

  • Page 38: Surface Mounting

    IntelliKnight 5820XL Installation Manual 4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2), replace the electronic assembly in the back box. Place the bezel over the back box and tighten the set screws on the bezel.

  • Page 39: Model 5860 Connection To The Panel

    Control Panel Installation 4.5.2 Model 5860 Connection to the Panel Connect the 5860 to the panel as shown in Figure 4-14. Supervised Power Limited Figure 4-14 Model 5860 Connection to the Panel 151137 4-15...

  • Page 40: 5815Xl Installation

    IntelliKnight 5820XL Installation Manual 5815XL Installation The Model 5815XL SLC Expander allows you to add 127 analog addressable devices. Up to two 5815XLs (adding 254 SLC devices) can be used with the system. 5815XL installation involves the following steps. 1. Make sure power is off at the panel.

  • Page 41: 5815Xl Connection To The Panel

    Control Panel Installation 4.6.1 5815XL Connection to the Panel Connect the 5815XL to the control panel as shown in Figure 4-16. After the 5815XL is connected to the panel, it must be added to the system. This programming step is described in Section 4.10.

  • Page 42: 5824 Serial/Parallel Interface Installation

    IntelliKnight 5820XL Installation Manual 5824 Serial/Parallel Interface Installation The 5824 Serial / Parallel Interface allows you to connect a printer to the panel, so you can print a real-time log of system events, a report of detector status, and event history.

  • Page 43: Selecting 5824 Options

    Control Panel Installation M odel 5824 (w ith housing) To S erial P rinter To P arallel P rin ter Figure 4-18 Printer Connection 4.7.1 Selecting 5824 Options Configuring the 5824 includes the following steps: • Add the module to the system. JumpStart will add the module automatically (see Section 6.1).

  • Page 44: Printer And Output Port Options

    IntelliKnight 5820XL Installation Manual Printer and Output Port Options 1. From the Installer Main Menu, select for Program Menu. 2. Select for Module. 3. Select for Edit Module. 4. From the list that displays, select the 5824 module you want to configure.

  • Page 45: 5880 Led Driver Module

    Control Panel Installation 5880 LED Driver Module The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with most customized floor plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller.

  • Page 46: Facp Connection

    IntelliKnight 5820XL Installation Manual 4.8.2 FACP Connection The 5880 connects to the panel via the SBUS. Make connections as shown in Figure 4-21. After the 5880 is connected to the panel, it must be added to the system. This programming step is described in Section 4.10.

  • Page 47: Led Wiring

    Control Panel Installation 4.8.3 LED Wiring There are four 12-pin connectors on the 5880 board for connecting LEDs. Each LED gets its power from Pin 11. Internal resistors are sized so that there is approximately 10 mA of current for each LED, no series resistors are required. LED outputs can be mapped to output circuits. See Section 6 for programming details.

  • Page 48: Dry Contact Wiring

    IntelliKnight 5820XL Installation Manual 4.8.4 Dry Contact Wiring The 8 input circuits on the 5880 board are for monitoring switch inputs-any type of switch supported by the control panel can be used with the 5880. For example, you can use a 5880 to monitor pull stations, water flow, tamper, reset, or silence switches.

  • Page 49: 5865-3 / 5865-4 Led Annunciator Installation

    Control Panel Installation 5865-3 / 5865-4 LED Annunciator Installation The 5865-3 and 5865-4 are LED annunciators. The 5865-4 has 30 mappable LEDs, remote silence and reset key switches, and a general system trouble LED. The 5865-3 has 30 mappable LEDs only. These are arranged as 15 pairs of red (typically used for alarm) and yellow (typically used for trouble) LEDs.

  • Page 50: Facp Connection

    IntelliKnight 5820XL Installation Manual 4.9.1 FACP Connection The 5865 connects to the panel via the SBUS. Make connections as shown in Figure 4-25. After the 5865 is connected to the panel, it must be added to the system. This programming step is described in Section 4.10.

  • Page 51: 5865 Mounting

    Control Panel Installation 4.9.2 5865 Mounting Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang electrical box. In Figure 4-26, the 5865-4 attached to a 4-gang box is used as an example. Figure 4-26 5865 Mounting Example The 5865 ships with a set of zone description labels that can be inserted into the 5865 board assembly.

  • Page 52: Configuring Modules

    IntelliKnight 5820XL Installation Manual 4.10 Configuring Modules This section describes how to configure any system hardware modules that have been added to the system. 4.10.1 Assigning Module IDs When installing a hardware module (such as, 5815XL, 5824, 5860, 5895XL, 5865-3 or 5865- 4), you must use the dipswitches on the module to assign an ID# to the module.

  • Page 53: Telephone Connection

    4.11 Telephone Connection Connect the telephone lines as shown in Figure 4-29. The Model 7860 phone cord is available from Silent Knight for this purpose. A number of programmable options are available for customizing telephone lines. These options are described in Section 7.5.

  • Page 54: Conventional Notification Appliance

    IntelliKnight 5820XL Installation Manual ™ 4.12 Flexputs I/O Circuits The six Flexput™ circuits are an innovative and versatile feature of the control panel. They can be used as: Class A or B notification circuits, Class A or B initiation circuits (either 2 or 4 wire detectors), or as auxiliary power (resettable, continuous, or door holder).

  • Page 55: Class A Notification Wiring

    Control Panel Installation 4.12.1.2 Class A Notification Wiring You must use an appliance from the list of compatible appliances in the Appendix at the back of this manual. To install a Class A notification appliance circuit: 1. Wire the Class A notification appliances as shown in Figure 4-31. 2.

  • Page 56: Conventional Input Switch Circuits

    IntelliKnight 5820XL Installation Manual 4.12.2 Conventional Input Switch Circuits This section of the manual explains how to install conventional initiating devices for Class A (Style D) or Class B (Style B) configurations. 4.12.2.1 Class B Inputs You can connect conventional Class B switches, such as waterflow switches and pull stations, directly to the Flexput circuits of the control panel.

  • Page 57: Class A Inputs

    Control Panel Installation 4.12.2.2 Class A Inputs You can connect conventional Class A switches, such as waterflow switches and pull stations, directly to the Flexput circuits of the control panel. To install a Class A switch: 1. Wire the Class A switch as shown in Figure 4-33. 2.

  • Page 58: Installing 2-Wire Smoke Detectors

    IntelliKnight 5820XL Installation Manual 4.12.3 Installing 2-Wire Smoke Detectors Any compatible U.L. listed two-wire smoke detector can be used with the control panel (see Appendix A for list of compatible smoke detectors). Figure 4-34 and Figure 4-35 illustrate how to connect a UL listed 2-wire detector to the control panel.

  • Page 59: Installing 2-Wire Class A Smoke Detector

    Control Panel Installation 4.12.3.2 Installing 2-Wire Class A Smoke Detector To install a Class A two-wire smoke detector, wire as shown in Figure 4-35. Supervised Power Limited Note: Flexput circuit 5 and 6 used as an example. Any Flexput point pairing could be used.

  • Page 60: Installing 4-Wire Smoke Detectors

    IntelliKnight 5820XL Installation Manual 4.12.4 Installing 4-Wire Smoke Detectors Any compatible U.L. listed four-wire smoke detector can be used with the control panel (see Appendix A for list of compatible smoke detectors). Figure 4-34 and Figure 4-35 illustrate how to connect a UL listed four-wire detector to the control panel.

  • Page 61: Installing 4-Wire Class A Smoke Detectors

    Control Panel Installation 4.12.4.2 Installing 4-Wire Class A Smoke Detectors Figure 4-37 illustrates how to install 4-wire Class A detectors. Conventions used for wiring 4-wire Class A loops: 1. Up to two Class A 4-wire loops can be connected to the control panel at once. 2.

  • Page 62: Auxiliary Power Installation

    IntelliKnight 5820XL Installation Manual 4.12.5 Auxiliary Power Installation Flexput Circuits 1-6 on the control panel can be used as auxiliary power circuits (see also Section 5.9.5). The three types of auxiliary power available are: • Door Holder (see section 4.12.5.1) •...

  • Page 63: Resettable Power

    Control Panel Installation 4.12.5.3 Resettable Power Resettable power is typically used to power beam detectors, flame detectors and conventional 4-wire smoke detectors. For circuits selected as Resettable, 24-volt power is always present at the terminals unless a system reset occurs. If a system reset occurs, power is disconnected from the terminals for 30 seconds, then re-applied.

  • Page 64: Keltron Model 3158 Installation

    IntelliKnight 5820XL Installation Manual 4.14 Keltron Model 3158 Installation The control panel is compatible with Keltron Model 3158, used for direct connection to a Keltron receiver. The 3158 reports alarms, supervisories, and troubles. The steps for connecting the 3158 to the control panel. Refer to the 3158 installation instructions for complete information.

  • Page 65: Model 5220 Direct Connect Module

    Control Panel Installation 4.15 Model 5220 Direct Connect Module The 5220 Direct Connect Module can be used with the control panel to meet NFPA 72 standards. The 5220 requires four connections to the control panel and provides outputs for city box and polarity reversal applications. The 5220 cannot be used for sprinkler supervisory. The 5220 provides a current that reverses polarity during an alarm or removes current during a trouble condition.

  • Page 66: City Box Connection

    IntelliKnight 5820XL Installation Manual 4.15.2 City Box Connection This section describes how to connect the control panel to a municipal fire alarm box or “city box” as required by NFPA 72 Auxiliary Protected Fire Alarm systems for fire alarm service.

  • Page 67: Nfpa 72 Polarity Reversal

    Control Panel Installation 4.15.3 NFPA 72 Polarity Reversal When the 5220 is wired and programmed for polarity reversal, it reports alarm and trouble events to a remote site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset.
  • Page 68 IntelliKnight 5820XL Installation Manual 4-44 151137...

  • Page 69: Slc Device Installation

    Indicates replacement for earlier model. SD500-AIM replaces SD500-FRCM-4; SD500-MIM replaces SD500-FRCM; SD500-ARM replaces SD505-ARM. Earlier models are compatible with the panel but are no longer manufactured by Silent Knight. Contact Silent Knight if you need information about these models. Maximum Number of Devices A total of 381 analog addressable devices can be used with the system.

  • Page 70: Wiring Requirements For Slc Devices

    IntelliKnight 5820XL Installation Manual Wiring Requirements for SLC Devices The following information applies to all SLC devices. Refer to the section that describes the type of device you are installing for details. 5.3.1 Wiring 5815XL in Style 4 (Class B) Configuration No special wire is required for addressable loops.

  • Page 71: Wiring 5815Xl In Style 6 (Class A) Configuration

    SLC Device Installation When using T-taps, the total length of all taps and the main bus must not exceed 40,000 feet. This requirement must be met in addition to the maximum distance requirements for the various wire gauges. Figure 5-2 Calculating Wire Run Length for a T-tap 5.3.2 Wiring 5815XL in Style 6 (Class A) Configuration F illustrates how to wire the SLC loop for class A installations.

  • Page 72: Heat And Smoke Detector Installation

    IntelliKnight 5820XL Installation Manual Heat and Smoke Detector Installation The information in this section applies to the following models: SD505-AHS Heat Detector, SD505-AIS Ionization Smoke Detector, and SD505-APS Photoelectric Smoke Detector. See also Section 5.10 for information on how to address the detectors.

  • Page 73: Duct Detector Installation

    SLC Device Installation Duct Detector Installation Figure 5-5 shows the layout of the SD505-ADH duct housing with a detector base in place, including location of the terminals for connection to the FACP. Figure 5-6 shows wiring in detail. Address the detector head before attaching it to the base. This procedure is explained in Section 5.10.

  • Page 74: Input Monitor Module (Sd500-Aim)

    IntelliKnight 5820XL Installation Manual Input Monitor Module (SD500-AIM) Wire and mount the SD500-AIM full-size input module as described in this section (see Figure 5-7 and Figure 5-8). See Section 5.10.2 for information on how to use the on-board dipswitch to select an address for the module.

  • Page 75: Mini Input Module (Sd500-Mim)

    SLC Device Installation Figure 5-8 SD500-AIM/MIM Input Module Mounting Example Mini Input Module (SD500-MIM) Wire the SD500-MIM Mini Input Module as shown in this section (see Figure 5-7 and Figure 5-8). The SD500-MIM fits inside a single-gang electrical box. See Section 5.10.2 for information on using the on-board dipswitch to select an address for the module.

  • Page 76: Relay Module Installation

    IntelliKnight 5820XL Installation Manual Relay Module Installation The information in this section applies to Model SD500-ARM Relay Modules. See Section 5.10.2 for information on how to use the on-board dipswitch to select an address for the module. 5.8.1 Electrical Specifications The following is electrical rating information for SD500-ARM relay modules.

  • Page 77: Sd500-Anm Installation Instructions

    SLC Device Installation SD500-ANM Installation Instructions The SD500-ANM (Addressable Notification Module) is an output accessory module for the Control Panel, which provides one reverse polarity supervised notification appliance circuit. The notification circuit can be configured in either Class A (Style Z) or Class B (Style Y). 5.9.1 SD500-ANM Specification Table 5-1 list the electrical, physical and environmental specifications of the SD500-ANM.

  • Page 78: Wiring The Sd500-Anm

    IntelliKnight 5820XL Installation Manual 5.9.2 Wiring the SD500-ANM Note: Installation and wiring of this device must be done in accordance with NFPA 72 and local ordinances. 5.9.2.1 Wiring the SD500-ANM to the 5815XL The SD500-ANM connection for the 5815XL internal and external are the same. Wire as shown in Figure 5-10.

  • Page 79: Class A Notification Configuration

    SLC Device Installation 5.9.4 Class A Notification Configuration Wire Class A notification appliance circuits to the SD500-ANM as shown in Figure 5-12. Supervised Power Limited Figure 5-12 : SD500-ANM Class A Notification Wiring 5.9.5 Configuring Flexput™ Circuits for Auxiliary Power Follow these steps to configure an Flexput circuit for aux power to be used with the SD500-ANM: 1.

  • Page 80: Slc Device Addressing

    IntelliKnight 5820XL Installation Manual 5.10 SLC Device Addressing 5.10.1 EEPROM Addressing Select addresses for the following models through software as described here: • Model SD505-AHS Heat Detector • Model SD505-APS Photoelectric Smoke Detector • Model SD505-AIS Ionization Smoke Sensor You must use the Installer Code to perform this task. Here are the steps.

  • Page 81: Dipswitch Addressing

    SLC Device Installation 5.10.2 Dipswitch Addressing Input and relay module addresses are set using the dipswitch that appears on the module board. The chart below shows the available addresses. For example, to select address 3, place dipswitches 1 and 2 in the up position. The range of valid addresses is 1-127 (0 is an invalid address).
  • Page 82 IntelliKnight 5820XL Installation Manual 5-14 151137...

  • Page 83: Programming Overview

    Section 6 Programming Overview This section of the manual is intended to give you an overview of the programming process. Please read this section of the manual carefully, especially if you are programming the control panel for the first time. The JumpStart feature automates many programming tasks and selects default options for the system.

  • Page 84: Input Points

    IntelliKnight 5820XL Installation Manual 6.1.1 Input Points JumpStart will determine the number and type of input points (detectors or contact monitor modules) on each SLC loop. JumpStart assigns the correct detector type (heat, ionization or photoelectric), so the installer does not need to edit device type for detectors. Any contact monitor modules on the system will be assigned type "Manual Pull."...
  • Page 85 Programming Overview 3. Select for Program Menu. 4. From the next menu, select for JumpStart. 5. The message "WARNING Will reset all system options" displays on the LCD. Select Yes to continue. A series of messages displays for the next several seconds. JumpStart scans the SLC loops for devices.

  • Page 86: Mapping Overview

    IntelliKnight 5820XL Installation Manual Mapping Overview This section of the manual is an overview of mapping. Details about how to select mapping options appear in the appropriate subsections in Section 7. Mapping is an important concept with the control panel. In general terms, mapping is assigning or linking events to outputs that should activate when events occur.

  • Page 87: Input Point Mapping

    Programming Overview 6.2.1 Input Point Mapping Input points are assigned to input zones. Any input point can be assigned to any input zone. (Input points can be assigned to one zone only. An input point can be designated as "Unused," which means it has not been assigned to a zone.) Figure 6-2 Input Point Assignment Example 151137...

  • Page 88: Output Circuit Mapping

    IntelliKnight 5820XL Installation Manual 6.2.2 Output Circuit Mapping Figure 6-3 is a simple example showing how to assign notification and relay output circuits to groups. For an example of a simple floor above/floor below application, see Figure 6-5. Figure 6-3 Assigning Output Circuits to Groups (Example)

  • Page 89: Zone Event Mapping

    Programming Overview 6.2.3 Zone Event Mapping There are 8 types of events that can occur in zones (see below). For each event type, you can activate up to 8 output groups and patterns. If it is necessary to map to more than 8 output groups, an output group template may be used (see Section 7.3.5 for information on output group templates).
  • Page 90 IntelliKnight 5820XL Installation Manual Figure 6-5 Example of Zone Events Mapped to Output Groups and Patterns 151137...

  • Page 91: Mapping Led Points

    Programming Overview 6.2.4 Mapping LED Points Figure 6-6 is a simple example showing how LED points are mapped to zones and output groups. Typically you would create two output groups for each zone, one for alarms and one for troubles. (LED points are available when Models 5865-3/4 and/or 5880 are used with the system.) Figure 6-6 Example of LED Points Mapped to Output Groups (applies to Models 5865-3/4 and 5880)

  • Page 92: Sk Analog Fire System Editor 5590

    5590 is an optional software package that allows you to easily program the control panel using a Windows-based computer and a *modem (not sold by Silent Knight). The software works in the following way. First you use the software to program options for the panel, saving the options in a file.

  • Page 93: Entering / Exiting The Program Menu

    Programming Overview 6.4.1 Entering / Exiting the Program Menu To enter the Program Mode: 1. Enter the Installer Code (factory programmed default code is 5820). 2. The display prompts you to press the key to bring up the Installer Main Menu (see Figure 6-7).

  • Page 94: Moving Through The Menus

    IntelliKnight 5820XL Installation Manual 6.4.2 Moving through the Menus Figure 6-8 shows how to move through Program Menu screens, using the System Options screen as an example. Figure 6-8 Moving through Program Menu (System Options Sub-Menu Used as an Example) 6.4.3...

  • Page 95: Editing Keys

    Programming Overview 6.4.4 Editing Keys The keys shown in Figure 6-9 are available for use when you are in the Program Menu. Figure 6-9 Editing Keys Available from Program Menu 151137 6-13...

  • Page 96: Programming Menu Quick Reference

    IntelliKnight 5820XL Installation Manual Programming Menu Quick Reference This section of the manual lists all Program Menu options in the order they appear on the sub- menus. Default settings are indicated in text or marked with an asterisk. The comments column provide quick information and a reference to a section (if applicable) which has more detailed information.
  • Page 97 Programming Overview Menu Options/Defaults Comments Enter Name1 Enter Number1 Edit Zone Name Enter Name2 Enter Number2 *1 Count 2 Count Verification Type Alarm Ver. Heat Sensitivity 135° to 150°F 3.5% obscurity Zone Properties *Low Sec 7.2.1.2 2.5 obscurity Smoke Medium Sensitivity Sec 7.2.1.2 Edit Zone...
  • Page 98 IntelliKnight 5820XL Installation Manual Menu Options/Defaults Comments Enter Name1 Enter Number1 See Section Group Name Sec. 7.3.1.1 7.3.1.1. Enter Name2 Enter Number2 Latching *Non- Options Latching Latching *SILENCE Silenceable NON-SIL Non-Silenceable Sec. 7.3.1 Auto Auto Un-silenced Silencing Unsilence Sec. 7.3.1...
  • Page 99 Programming Overview Menu Options/Defaults Comments UNUSED PHOTO DETECTOR HEAT Select zone See Section 7.4. PHOT DUCT ION DUCT MAN_PULL LATCH WATERFLOW NLATCH SUPERVSY LATCH NLATCH FIREDRILL SILENCE RESET PAS_ACK SWITCH LATCH See Section 7.4. ZN_AUX1 Internal and Point Enter Pt NLATCH External 5815XL LATCH...
  • Page 100 IntelliKnight 5820XL Installation Manual Menu Options/Defaults Comments Enter Pt Input Point Type Select Function Per JumpStart (detector/switch) UNUSED B NOTIF Select Group A NOTIF CONSTANT AUX PWR RESETABLE DOOR MAN PULL Select zone Latch and Non- latch feature only WATERFLOW...
  • Page 101 Programming Overview Menu Options/Defaults Comments For each account (1-4), select: Edit Account # *123456 Account # (6-digit number, identifies account to central station) Sec. 7.5.1 Edit Format *Contact ID Reporting Format (SIA, S20, Contact ID) Sec. 7.5.1 Y (Yes) Sec. 7.5.1 Report Alarms N (No) M (Must)
  • Page 102 IntelliKnight 5820XL Installation Manual Menu Options/Defaults Comments For each phone line (1 & 2), select: Dialing Prefix Up to 9 digits none Sec. 7.5.2.1 # of Answer Rings Range: 00-15 Number of rings before panel answers a call from a computer Sec.
  • Page 103 Programming Overview Menu Options/Defaults Comments Y (Enabled) *Disabled Enable Day/Night Sec.7.5.4 Sensitivity N (Disabled) Select Hour Select Time Day Begins Day Start Select Minutes *06:00 AM Day/Night Select AM/PM Sensitivity Select Hour Select Time Night Begins Night Start Select Minutes *06:00 PM Select AM/PM Sunday through...
  • Page 104 IntelliKnight 5820XL Installation Manual 6-22 151137...

  • Page 105: Programming

    Section 7 Programming This section of the manual manually program the control panel. Each subsection discusses these menu options in detail. All options described in this section can be performed using the SK Analog Fire System Editor 5590. Important! Before any customized programming is done, JumpStart should be run first. After JumpStart is run, thoroughly test the system.

  • Page 106: Naming Modules

    IntelliKnight 5820XL Installation Manual 7.1.1.1 Naming Modules You can assign an English name to a system hardware module to make it easier to recognize on a display. 7. If you wish to edit the modules name press the arrow to select each character for the modules name (or press to bypass name edit).

  • Page 107: Deleting A Module

    Programming 6. From the next screen, select the number that corresponds to the type of module you are adding from the <New Module Type> screen. The screen will display “Adding module [#]...” for a few moments. You will be returned to the <Module Programming>...

  • Page 108: Zone

    IntelliKnight 5820XL Installation Manual Zone Through the zone option in the program menu you can edit, add, delete, and view zone points. Selections made here affect all detectors and switches in the zone. Up to 125 zones can be used in the system.

  • Page 109: Edit Zone Name

    Programming 7.2.1.1 Edit Zone Name 7. Press to edit the selected zone’s name. A screen similar to the one shown in Figure 7-2 displays. Select a one- or two-word descriptive name as shown in the diagram. Figure 7-2 Selecting a Name for a Zone See Appendix B Table B-1 of this manual for a list of available words.

  • Page 110: Alarm Delay Characteristics

    IntelliKnight 5820XL Installation Manual Alarm Delay Characteristics 3. Select the alarm delay characteristics by pressing the arrow. Table 7-1 list the delay choices and a description of each. Table 7-1: Alarm Delay Characteristics Type of Delay Description One Count (No Delay). When this option is enabled, an alarm occurs immediately when a single device of any of the following types goes into alarm: &RXQW...

  • Page 111: Heat Detector Sensitivity

    Programming Heat Detector Sensitivity Use this feature to set the temperature that heat detectors will respond. The range is 135° to 150° F. All detectors in the zone will respond in the same way. The Model SD505-AHS Heat Detector is an absolute temperature device. This means that it responds to an alarm immediately if the temperature in the zone goes above the programmed temperature.

  • Page 112: Zone Outputs

    IntelliKnight 5820XL Installation Manual 7.2.1.3 Zone Outputs Output groups and cadence patterns are mapped to events. They can be programmed to output when an event occurs in a zone. Some system trouble events can be mapped for the entire system. Section 6.2 of this manual contains a general explanation of mapping. The following sections explain how to select mapping options.

  • Page 113: Example Or Zone Mapping

    Programming Example or Zone Mapping: Suppose you want to program Zone 1 so that: • Any alarm (detector, water flow or manual pull) would activate Output Group 1 using the ANSI cadence pattern. • Manual pull alarm would activate Output Group 3 using constant output. •...

  • Page 114: Cadence Patterns

    IntelliKnight 5820XL Installation Manual 7.2.1.4 Cadence Patterns The cadence patterns shown in Figure 7-5 are available for use with the control panel. Cadence patterns can be selected by event type for each zone or for the entire system. Special cadence patterns can be selected for fire drills and any auxiliary system switches used with the system..

  • Page 115: Add Zone

    Programming 7.2.2 Add Zone To add a zone, follow these steps: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu. ,QLWLDOL]LQJ Display reads: 3OHDVHZDLW 4. Press to enter zone menu. 5. Press to add a zone.

  • Page 116: View Zone Points

    IntelliKnight 5820XL Installation Manual 7.2.4 View Zone Points To view the points in a zone, follow these steps: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu. ,QLWLDOL]LQJ Display reads: 3OHDVHZDLW 4. Press to enter zone menu.

  • Page 117: Group

    Programming Group An output group is made up of output points that have been programmed to respond in the same way. Output groups simplify programming because you do not have to program each individual point. Once you have defined the characteristics of output groups, you can assign each point to the appropriate group.

  • Page 118: Example Of Group Name

    IntelliKnight 5820XL Installation Manual Example of Group Name: Figure 7-7 Editing Group Name Example 7.3.1.2 Edit Group Properties The Edit Group Menu allows you to select options for each group for the following items: • Latching or non-latching outputs. •...

  • Page 119: Silencing Options

    Programming Silencing Options The following silencing options are available for each output group. Table 7-3: Silencing Options Option Description SILENCE S IL E N C E Silenceable. The output group can be silenced through the key. NON-SIL S IL E N C E Not silenceable.

  • Page 120: Add Group

    IntelliKnight 5820XL Installation Manual 10. Press the arrows to select the desired latching option. 11. Press 12. Press the arrows to select the desired silencing option. Refer to Table 7-3. 13. Press 14. Enable group activation for a condition (see Table 7-4) by pressing the arrows to select Y (yes) or N (no).

  • Page 121: View Group Points

    Programming 7.3.4 View Group Points 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu. ,QLWLDOL]LQJ Display reads: 3OHDVHZDLW 4. Press to enter group menu. 5. Press to view group points. 6. Enter the group number, then press 151137 7-17...

  • Page 122: Edit Output Group Templates

    IntelliKnight 5820XL Installation Manual 7.3.5 Edit Output Group Templates Some installations may require that zones be mapped to more than 8 output groups. With output group templates you can combine one or all output groups into one template, which can be used when the same combination of outputs are used for several zones.

  • Page 123: Point

    Programming Point You may need to change characteristics of individual input points (detectors and switches) even after using JumpStart. This section explains how to change options for: type of input point; latching/non-latching status (switches); and name and zone assignment of a point. 7.4.1 Point Programming For 5815XL Module To program for an 5815XL Module points, follow these steps:...
  • Page 124 IntelliKnight 5820XL Installation Manual 9. Select the type of device by pressing the arrows. Refer to Table 7-6 under column heading "Type Selection" for a list of choices. Table 7-6: Point Programming Options for 5815XL Modules Type Latching Module Type...
  • Page 125 Programming Table 7-6: Point Programming Options for 5815XL Modules Type Latching Module Type Function Comments Selection Option Positive acknowledge switch. This switch must be used in zones programmed as Positive Alarm Sequence (see Table 7-2). If an acknowledge switch closes when an alarm or trouble condition is not already in progress, a trouble PAS_ACK will occur.

  • Page 126: Point Programming For Internal

    IntelliKnight 5820XL Installation Manual 7.4.2 Point Programming For Internal or External Power Module (5895XL) To program for an internal or external power module points, follow these steps: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu.
  • Page 127 Programming 13. Select the zone by pressing the arrows. 14. Press 15. Edit point name. See Section 7.4.3.1. Press to skip point name edit. 16. Repeat Steps 1 through 15 for all circuits. Table 7-7: Menu choices for Internal/External Power Module Function Choices Type Selections...

  • Page 128: Point Programming For 5880 And 5865 Modules

    IntelliKnight 5820XL Installation Manual 7.4.3 Point Programming For 5880 and 5865 Modules To program for a 5880 or 5865 module points, follow these steps: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu.

  • Page 129: Assigning A Name To A Points

    Programming 7.4.3.1 Assigning a Name to a Points You can assign a name to a point to make it easier to recognize on a display. If you wish to edit the name of a point, follow these instructions: 1. When the Display is flashing on the Edit Name field press 2.

  • Page 130: System Options

    IntelliKnight 5820XL Installation Manual System Options This section of the manual explains how to customize software options that affect general operation of the system. This includes such items as: AC loss hours, system clock options, holidays schedule, telephone and reporting account options. Refer to each individual subsection for complete instructions.

  • Page 131: Edit Accounts

    Programming 7.5.1.1 Edit Accounts 6. From the next menu, select for Edit Account. A screen similar to one shown in Figure 7-11 will display. The following subsections describe the options on each field. Figure 7-11 Reporting Account Editing Screen Select Account (ID) The control panel provides up to 4 reporting accounts.

  • Page 132: Select Reporting Format

    IntelliKnight 5820XL Installation Manual Select Reporting Format Select a reporting format for each account. Options are: SIA format. 500 events per call. Ademco’s Contact ID format Same as SIA but limits events reported to 20 events per phone call. 9. Press the...

  • Page 133: Fail Attempts

    Programming Fail Attempts This feature specifies the number of times the dialer should attempt to perform the dial/switch sequence before issuing an account trouble condition. Range is 01 - 15 (Default = 10). 13. Enter the number of fail attempts (or press the arrow), then press Selecting Primary and Secondary Phone Lines For each account, select which phone line (Line 1 or Line 2) is primary.

  • Page 134: Auto Test Time

    IntelliKnight 5820XL Installation Manual 7.5.1.2 Auto Test Time To access the automatic dialer test time screen: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu. ,QLWLDOL]LQJ Display reads: 3OHDVHZDLW 4. From the Program Menu, select for System Options.

  • Page 135: Dialing Prefix

    Programming 6. Select the phone line to be edited (1 or 2) by pressing the arrow, then press Figure 7-12 Phone Lines Editing Screen 7.5.2.1 Dialing Prefix Enter up to 8 characters to be used for such things as PBX dial-out codes, a pause, and so on. The following special characters are available: Pound (or number) key on the telephone Star key on the telephone...

  • Page 136: Dial Option (Touchtone Or Pulse)

    IntelliKnight 5820XL Installation Manual 7.5.2.3 Dial Option (TouchTone or Pulse) 9. Press the arrow to select the dial option, then press Dial Option Description PULSE If this option is selected, only pulse dialing will be used for this phone line.

  • Page 137: Answering Machine Bypass

    Programming 7.5.2.7 Answering Machine Bypass This option is used in conjunction with the SK Analog Fire System Editor 5590. This feature ensures that an answering machine will not interfere with communication between the panel and the computer. If an answering machine is used at the panel site, enable this feature; if an answering machine is not used, disable the feature.

  • Page 138: System Alarm Cadence

    IntelliKnight 5820XL Installation Manual Figure 7-13 System Trouble Event Mapping Example 7.5.3.2 System Alarm Cadence Fire drill and system auxiliary alarm events can have special cadence patterns to distinguish them from other types of alarms. See Section 7.2.1.4 for available cadence patterns.

  • Page 139: Day/Night Sensitivity Time

    Programming 6. Press for System Alarm Cadence. A screen similar to the one in Figure 7-14 will display. Select a cadence pattern for these special events if required for your application. Figure 7-14 Special Cadence Patterns for Fire Drill and Auxiliary Alarm Events 7.5.4 Day/Night Sensitivity Time If you need to change the time that sensitivity levels take effect (that is, the time that "Day"...

  • Page 140: Holiday Days

    IntelliKnight 5820XL Installation Manual 7.5.5 Holiday Days Up to 18 dates can be designated as holidays. When day/night sensitivity is enabled, all photoelectric smoke detectors in the system will use night sensitivity for the entire day on days designated as holidays (see Section 7.5.4).

  • Page 141: Miscellaneous Options

    Programming 7.5.6 Miscellaneous Options Through this programming option you can set the water flow delay time, low AC report delay, enable or disable automatic daylight savings time adjustment, clock format, and AC clock frequency. 7.5.6.1 Water Flow Delay You can program a delay of 0-90 seconds (zero means no delay) to be used in conjunction with a water flow switch.

  • Page 142: Low Ac Report Delay

    IntelliKnight 5820XL Installation Manual 7.5.6.2 Low AC Report Delay Note: You must select 6-12 hours in UL central station installations or 15-30 in UL remote signaling installa- tions. You can adjust the number of hours before a Low AC report will be sent to the central station.

  • Page 143: Change Ac Line Frequency

    Programming 7.5.6.5 Change AC Line Frequency The panel’s AC line frequency is selectable for 50, 60 Hz, or Neither. AC Frequency feature dictates how the control panel will calculate time based on the AC line frequency used in the installation site. The "Neither" option can be used in areas where the AC line frequency is not dependable and you want the panel to calculate time from the internal crystal.

  • Page 144: Edit Banner Message

    IntelliKnight 5820XL Installation Manual 7.5.8 Edit Banner Message The banner is the message that displays on the panel LCD when the system is normal, that is, when no alarms or troubles exist and no one is currently using system menus. You can create a customized message, which can be up to 40 characters, two lines of 20 characters each.

  • Page 145: Jumpstart Autoprogramming

    Programming JumpStart Autoprogramming IMPORTANT! JumpStart is intended to be used prior to performing any custom programming. Each time JumpStart is executed, all options will be reset to their default values. Do not run JumpStart after you have configured the system through programming. To run JumpStart: 1.

  • Page 146: Computer Account

    IntelliKnight 5820XL Installation Manual Computer Account An installer at the panel site can initiate communications between the panel and a computer running the SK Analog Fire System Editor 5590 (see also Section 8.4.16). In order for this communication to function properly both the computer (running the software) and the control panel must have matching computer account numbers and computer access codes.

  • Page 147: Access Codes

    Programming Access Codes You can edit the default User and Installer codes through this programming option. To change a access code: 1. Enter the installer code. 2. Press to display the installer menu. 3. Select for Program Menu. ,QLWLDOL]LQJ Display reads: 3OHDVHZDLW 4.
  • Page 148 IntelliKnight 5820XL Installation Manual 7-44 151137...

  • Page 149: System Operation

    Section 8 System Operation Operation of the control panel is simple. Menus guide you step-by-step through operations. This section of the manual is an overview of the operation menus. Please read this entire section carefully before operating the panel. User Menu (basic operation) access: Rotate the key on the annunciator or enter the User Code (factory-programmed as 1111).

  • Page 150: Banner

    IntelliKnight 5820XL Installation Manual 8.1.2 Banner The banner is the message that displays on the control panel when the system is in normal mode (no alarm or trouble condition exists and menus are not in use). You can create a customized message that will display instead of the internal (default) message.

  • Page 151: User Menu

    System Operation 8.3.1 User Menu The User Menu is actually a set of menus for basic system operation. It allows you to perform such operations as setting the date and time, disabling points, and silencing and resetting alarms. This menu displays whenever the User Code is entered or the key is activated. (The User Code is factory-programmed as 1111.) 8.3.2 Installer Menu...

  • Page 152: Using The Menus

    IntelliKnight 5820XL Installation Manual 8.3.4 Using the Menus To move through the menus: to move through the options in a menu. Use to move to a previous menu. To select an option: Enter the number of the option. –OR– E N T E R...

  • Page 153: Conduct A Fire Drill

    System Operation 8.4.4 Conduct a Fire Drill 1. From the User or Installer Menu, press for System Tests. 2. Press for Fire Drill. You will be prompted to press E N T E R 3. The drill will begin immediately after you press E N T E R 4.

  • Page 154: Conduct A Walk Test

    IntelliKnight 5820XL Installation Manual 8.4.6 Conduct a Walk Test 1. From the Installer Main Menu, press for System Tests. IMPORTANT! If any alarm verification zones are being used, the user will be asked if they wish to disable alarm verification during walk test. This occurs for either walk test option.

  • Page 155: Reset Alarms

    System Operation 8.4.9 Reset alarms Press and enter your code or rotate the key at the prompt. If an external reset switch R E S E T has been installed, activating the switch will reset alarms. If you are already using system menus when you press , you will not need to enter your code or rotate the key.

  • Page 156: Change User Or Installer Code

    IntelliKnight 5820XL Installation Manual 8.4.11 Change User or Installer Code You must be in the Program Menu to perform this step. 1. From the Installer Main Menu, press to enter the Program Menu. 2. From the Program Menu, press for Access Codes.

  • Page 157: Communicating With A Remote Computer

    System Operation 8.4.16 Communicating with a Remote Computer An installer at the panel site can initiate communications between the panel and a computer running the SK Analog Fire System Editor 5590. You can use this feature to upload a panel configuration.

  • Page 158: Working With A Printer

    IntelliKnight 5820XL Installation Manual 8.4.17 Working with a Printer If you are using the Model 5824 Serial/Parallel Interface, several printing options are available. See Section 4.7 for information about installing the 5824. 1. From the Installer Main Menu, select Printer Options.

  • Page 159: Operation Mode Behavior

    System Operation Operation Mode Behavior The control panel panel can be in one of seven conditions at any given moment: Normal, Alarm, Prealarm, Supervisory, Trouble, Silenced, and Reset. Table 10-1 describes the behavior of the panel in each of these modes. Table 8-1: Operation Mode Behavior Operation Occurs When...
  • Page 160 IntelliKnight 5820XL Installation Manual Table 8-1: Operation Mode Behavior Operation Occurs When System Behavior In This Mode You Can Mode Supervisory The system The dialer seizes control of the phone line Press (down arrow) to view the supervisory detects a and calls the central station.
  • Page 161 System Operation Table 8-1: Operation Mode Behavior Operation Occurs When System Behavior In This Mode You Can Mode Prealarm A single detector Touchpad PZT beeps. Press (down arrow) to view the prealarm. A trips in a 2- The LCD displays a screen similar to this screen similar to this one displays.
  • Page 162 IntelliKnight 5820XL Installation Manual 8-14 151137...

  • Page 163: Reporting

    Table 11-1 shows receivers compatible with the control panel. Table 9-1: Receivers Compatible with the Control Panel Manufacturer Model Format Model 9800 SIA and Contact ID Silent Knight Model 9000 (SIA formats) Ademco Model 685 (Contact ID ) Contact ID Sur-Gard SG-MLR2-DG (V. 1.64 or higher)

  • Page 164: Ademco Contact Id Dialer Output

    IntelliKnight 5820XL Installation Manual Ademco Contact ID Dialer Output Table 9-2: Ademco Contact ID Output Event Qualifier Zone / Event Description Event Family Event Code Group # 1=New, Contact ID # 3= Restore Detector alarm. Alarm Zone Detector alarm restore...
  • Page 165 Reporting Table 9-2: Ademco Contact ID Output Event Qualifier Zone / Event Description Event Family Event Code Group # 1=New, Contact ID # 3= Restore SBUS Class A supervision restore Trouble Exp ID Printer is out of paper. Trouble Exp ID Printer paper restored.
  • Page 166 IntelliKnight 5820XL Installation Manual Table 9-2: Ademco Contact ID Output Event Qualifier Zone / Event Description Event Family Event Code Group # 1=New, Contact ID # 3= Restore Remote programming aborted or ended with Trouble errors. Notification output disabled Disable...
  • Page 167 Reporting Table 9-2: Ademco Contact ID Output Event Qualifier Zone / Event Description Event Family Event Code Group # 1=New, Contact ID # 3= Restore Tamper switch input has been re-enabled. Disable Exp ID Pnt # Zone-based AUX 1 switch input has been re- Disable Exp ID Pnt #...

  • Page 168: Sia Dialer Output

    IntelliKnight 5820XL Installation Manual SIA Dialer Output Table 9-3: SIA Dialer Output Event Module ID# SIA Event Parameter Event Description Family (if any) Code (if any) AC power restore Trouble AC power lost Trouble SBUS expander trouble restore Trouble Exp. ID...
  • Page 169 Reporting Table 9-3: SIA Dialer Output Event Module ID# SIA Event Parameter Event Description Family (if any) Code (if any) Manual pull switch trouble Trouble Zone Detector trouble Trouble Zone Positive Alarm Sequence acknowledge switch trouble Trouble Zone Notification output trouble Trouble 1000+Grp Notification output has been reenabled...
  • Page 170 IntelliKnight 5820XL Installation Manual Table 9-3: SIA Dialer Output Event Module ID# SIA Event Parameter Event Description Family (if any) Code (if any) Water flow switch trouble restore Trouble Zone Supervisory restore Trouble Zone Supervisory condition Trouble Zone Supervisory/Tamper switch trouble...
  • Page 171 Reporting Table 9-3: SIA Dialer Output Event Module ID# SIA Event Parameter Event Description Family (if any) Code (if any) Printer offline. Trouble An unexpected SLC device has been detected. Trouble pi Exp. ID Pnt # An unexpected SLC device has been removed. Trouble pi Exp.
  • Page 172 IntelliKnight 5820XL Installation Manual 9-10 151137...

  • Page 173: Testing And Troubleshooting

    If these suggestions do not solve your problem or if you encounter a problem that is not listed here, contact Silent Knight Technical Support at 800-328-0103 for assistance. 10.2 Common Problems...

  • Page 174: Event History

    IntelliKnight 5820XL Installation Manual Problem Possible Cause / Suggested Actions SLC devices are not being recognized Check that SLC loop impedance is within the required range. (trouble message "Missing" displays on To measure impedance, use the following procedure. the annunciator).

  • Page 175: Built-In Troubleshooting And Testing Tools

    Testing and Troubleshooting 10.3 Built-in Troubleshooting and Testing Tools The fire control panel has several built-in testing and troubleshooting tools that can be utilized to save time while testing and troubleshooting points and SLC devices. 10.3.1 SLC Device Locator SLC device locator can be used to locate a device on a SLC loop. Follow these steps to locate a particular SLC device: 1.

  • Page 176: Slc Multi Locator

    IntelliKnight 5820XL Installation Manual 10.3.2 SLC Multi Locator This feature is the same as SLC Device Locator, except you can locate up to 8 devices on a single search. Follow these instructions to locate multiple SLC devices: 1. Select (Point Functions) from the Installer Menu.

  • Page 177: I/O Point Control

    Testing and Troubleshooting 10.3.3 I/O Point Control This feature allows you to toggle any output on or off and trip any input device. This can be useful to test a point’s output mapping. Follow these steps to control a I/O point: 1.
  • Page 178 IntelliKnight 5820XL Installation Manual 10-6 151137...

  • Page 179: Installation Records

    Section 11 Installation Records This section of the manual is for you to use if you wish to track of how points, zones, and groups have been programmed. 11.1 SLC Point Record You can use the chart that begins below to keep track of SLC points. Default addresses for ID: On-board: = 33 5815-1:...
  • Page 180 IntelliKnight 5820XL Installation Manual Table 11-1: Installation Record Zone / Zone/ Module Addr Description Module Addr Description Group Group On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board On-board...
  • Page 181 Installation Records Table 11-1: Installation Record Zone / Zone/ Module Addr Description Module Addr Description Group Group 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1...
  • Page 182 IntelliKnight 5820XL Installation Manual Table 11-1: Installation Record Zone / Zone/ Module Addr Description Module Addr Description Group Group 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-1 5815-2 5815-1 5815-2 5815-1 5815-2 5815-1 5815-2 5815-1 5815-2...
  • Page 183 Installation Records Table 11-1: Installation Record Zone / Zone/ Module Addr Description Module Addr Description Group Group 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2...

  • Page 184: Conventional Output Point Record

    IntelliKnight 5820XL Installation Manual Table 11-1: Installation Record Zone / Zone/ Module Addr Description Module Addr Description Group Group 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 5815-2 Copy these pages if you additional sheets. 11.2 Conventional Output Point Record This chart can be used to keep track of how conventional output points (circuits) have been configured.

  • Page 185: Appendix A Compatible Devices

    Appendix A Compatible Devices A.1 Two-Wire Smoke Detectors The table below lists two-wire smoke detectors that are compatible with the fire control panel. The table is organized by manufacturer. The columns show the number of detectors per loop that can be used. Table A-1: Compatible Two-Wire Smoke Detectors Model Name or Number Compatibility ID...

  • Page 186: Four-Wire Smoke Detectors

    IntelliKnight 5820XL Installation Manual Table A-1: Compatible Two-Wire Smoke Detectors Model Name or Number Compatibility ID Manufacturer (Base model name or number in # per Loop Head Base parentheses.) 1400 20 / loop 1451 (B401B) 20 / loop 2100 20 / loop...

  • Page 187: Notification Appliances

    Compatible Devices Notification Appliances For proper operation, you must use polarized devices with a Model 7628 4.7k ohm EOL resistor on each loop. All supervised notification applicances used with the control panel must be polarized. The chart below lists notification appliances compatible with the 5395. Manufacturer Model Type...
  • Page 188 IntelliKnight 5820XL Installation Manual Manufacturer Model Type Faraday 6223 Horn Faraday 6226 Horn/Strobe Faraday 6227 Horn/Strobe Faraday 6228 Horn/Strobe Faraday 6243 Electron-Mechanical Horn Faraday 6244 Electron-Mechanical Horn Faraday 6245 Electron-Mechanical Horn Faraday 6246 Electron-Mechanical Horn/Strobe Faraday 6247 Electron-Mechanical Horn/Strobe Faraday...
  • Page 189 Compatible Devices Manufacturer Model Type Gentex GOS-24-3075WW Multi-Tone Horn Strobe Gentex GOS-24-3075PWR Multi-Tone Horn Strobe Gentex GOS-24-3075PWW Multi-Tone Horn Strobe Gentex GOT-24R Multi-Tone Horn Gentex GOT-24W Multi-Tone Horn Gentex GMH24R Electro-Mechanical Horn Gentex GMS24-110-1WR Electro-Mechanical Horn Strobe Gentex GMS24-110-PWR Electro-Mechanical Horn Strobe Gentex GMS24-15-1WR Electro-Mechanical Horn Strobe...
  • Page 190 IntelliKnight 5820XL Installation Manual Manufacturer Model Type Gentex GXS-4-1575CR Visual Strobe Gentex GXS-4-1575CB Visual Strobe Gentex GXS-4-1575PWR Visual Strobe Gentex GXS-4-1575PWB Visual Strobe Gentex HG124R Mini Horn w/Strobe Gentex HG124B Mini Horn w/Strobe Gentex SHG24-15-1WR Mini Horn w/Strobe Gentex SHG24-15-1WB...
  • Page 191 Compatible Devices Manufacturer Model Type Wheelock 7002T-12\24-W-FR Strobe Horn Wheelock AES-DL1-R Multitone Horn Wheelock AES-EL1-R Multitone Horn Wheelock AES-DL1-WS-24-VF-R Multitone Horn Wheelock AES-EL1-WS-24-VF-R Multitone Horn Wheelock AES-DL1-WH-24-VF-R Multitone Horn Wheelock AES-EL1-WH-24-VF-R Multitone Horn Wheelock AES-DL1-WM-24-VF-R Multitone Horn Wheelock AES-EL1-WM-24-VF-R Multitone Horn Wheelock AH-24-R Horn...
  • Page 192 IntelliKnight 5820XL Installation Manual Manufacturer Model Type Wheelock CH-DF1-LS-24-VFR Strobe Chime Wheelock CH-DF1-LSM-24-VFR Strobe Chime Wheelock CH-DF1-MS-24-VFR Strobe Chime Wheelock CH-DF1-IS-24-VFR Strobe Chime Wheelock CH-DF1-WM-24-VFR Strobe Chime Wheelock CH-DF1-WS-24-VF-R Strobe Chime Wheelock DSM-12/24 Sync Module Wheelock EH-DL1-R Electronic Horn Wheelock...
  • Page 193 Compatible Devices Manufacturer Model Type Wheelock MBS-G10-24-W-HF-R Motor Bell with Strobe Wheelock MIZ-24-R Mini-Horn Wheelock MIZ-24-W Mini-Horn Wheelock MIZ-24-LS-VFR Mini-Horn/Strobe Wheelock MIZ-24-LSM-VFR Mini-Horn/Strobe Wheelock MIZ-24-MS-VFR Mini-Horn/Strobe Wheelock MIZ-24-HSW-HFR Mini-Horn/Strobe Wheelock MIZ-24-IS-VFR Mini-Horn/Strobe Wheelock MIZ-24-WS-VF-R Mini-Horn/Strobe Wheelock MIZ-24-WS-VF-W Mini-Horn/Strobe Wheelock MIZ-24-WH-VF-W Mini-Horn/Strobe Wheelock MIZ-24-WM-VF-W...

  • Page 194: Door Holder Device

    IntelliKnight 5820XL Installation Manual Manufacturer Model Type SHW-24-VFR Synchronized Remote Strobe Wheelock Wheelock SH2W-24-VFR Synchronized Remote Strobe Wheelock SHPW-24-VFR Synchronized Remote Strobe Wheelock SCM-24-R Controller for Synchronized Strobes Wheelock SM-12/24-R Sync Module Wheelock SR-2415-VFR Sync Strobe Wheelock SRP-2415-HFR Sync Strobe...

  • Page 195: Word And Special Characters Lists

    Appendix B Word and Special Characters Lists This section contains tables of programmable words or special characters that may be used for device, module, and zone names or phone numbers. Name Library The control panel has a built-in library (or list) of 120 9-character words that are available for you to select for naming points, zones, and groups.

  • Page 196: Characters For Customized Textual Descriptions

    IntelliKnight 5820XL Installation Manual Characters For Customized Textual Descriptions Table B-2: Alphanumeric Characters Used for Textual Descriptions Character Description UPPER-case letters lower-case letters [Blank] Blank space to use between words and so on. Numbers can also be entered directly from the annunciator.
  • Page 197 Repair and RA Procedure • All products that are returned to Silent Knight for credit or repair require a RA (Return Authorization) number. Call Silent Knight Customer Service at 800-446-6444 or 612-493- 6435 between 8:00 A.M. and 5:00 P.M. CST, Monday through Friday to obtain a return authorization number.
  • Page 198 RA Number:___________________ Limited Warranty Silent Knight warrants that the products of its manufacture shall be free from defects in materials or workmanship for 18 months from the manufacturing date code on the printed circuit board, if such goods have been properly installed, are subject to normal proper use, and have not been modified in any manner whatsoever.

Table of Contents
