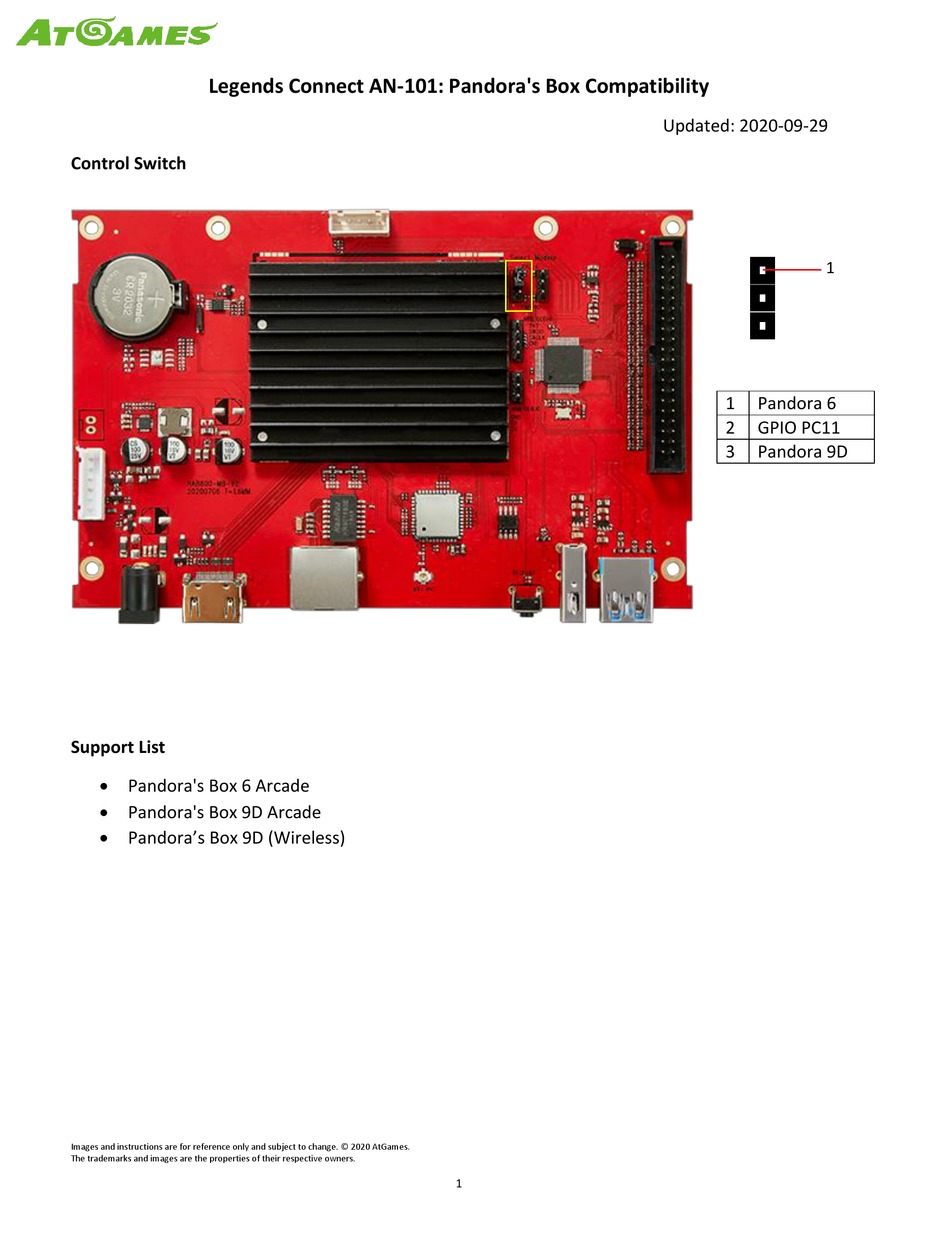

Legends Connect AN-101: Pandora's Box Compatibility
Control Switch
Support List
Pandora's Box 6 Arcade
Pandora's Box 9D Arcade
Pandora's Box 9D (Wireless)
Images and instructions are for reference only and subject to change. © 2020 AtGames.
The trademarks and images are the properties of their respective owners.
1
Updated: 2020-09-29
1
1
Pandora 6
2
GPIO PC11
3
Pandora 9D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AtGames Legends Connect AN-101
Summary of Contents for AtGames Legends Connect AN-101
- Page 1 Pandora's Box 6 Arcade Pandora's Box 9D Arcade Pandora’s Box 9D (Wireless) Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 2 2. Connect the Wi-Fi antenna to the mainboard. the antenna sticker backing and attach the antenna to the green box. Remove Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 3 6. Use the screw to attach the green box to the Pandora’s Box 6 arcade. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 4 9. After all cables are connected, plug in the HDMI and power supply cables, then power on your Pandora’s Box 6 arcade. 。 Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 5 2. Connect the Wi-Fi antenna to the mainboard. 3. Remove the antenna sticker backing and attach the antenna to the black box. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 6 6. Use the screws to attach the black box to the Pandora’s Box 9D arcade. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 7 9. After all cables are connected, plug in the HDMI and power supply cables, then power on your Pandora’s Box 9D arcade. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 8 3. Install the RC Console board onto the mainboard (pay attention to the pin direction). Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 9 6. Plug the LED cable into the mainboard. 7. Tighten the screw on the mainboard. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
- Page 10 9. After all cables are connected, plug in the HDMI and power supply cables, then power on your Pandora’s Box 9D. Images and instructions are for reference only and subject to change. © 2020 AtGames. The trademarks and images are the properties of their respective owners.
