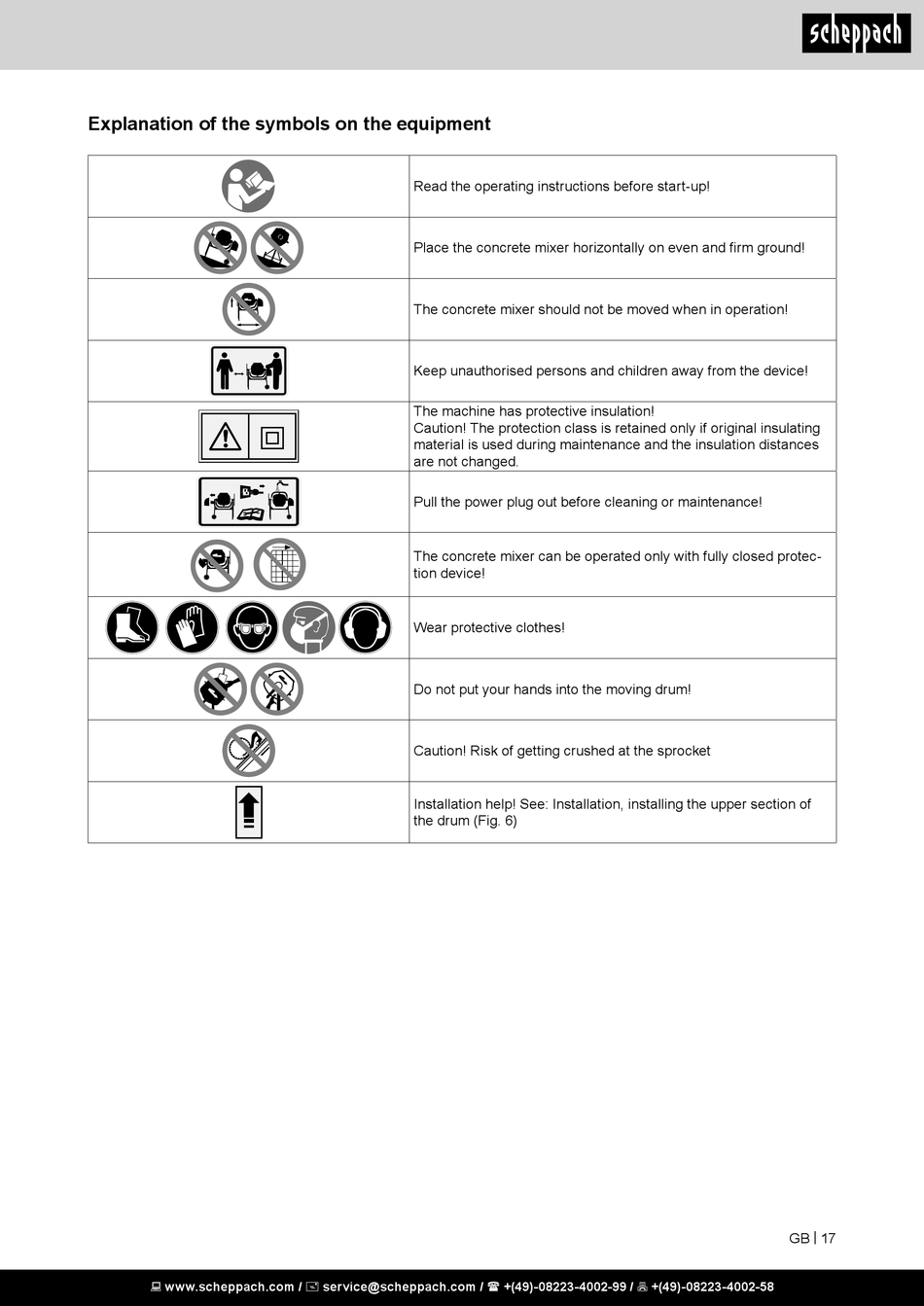

Scheppach MIX160 Original Instruction Manual page 17

Explanation of the symbols on the equipment
Read the operating instructions before start-up!
Place the concrete mixer horizontally on even and firm ground!
The concrete mixer should not be moved when in operation!
129 x 70
Keep unauthorised persons and children away from the device!
The machine has protective insulation!
Caution! The protection class is retained only if original insulating
material is used during maintenance and the insulation distances
are not changed.
Pull the power plug out before cleaning or maintenance!
The concrete mixer can be operated only with fully closed protec-
tion device!
Wear protective clothes!
Do not put your hands into the moving drum!
Caution! Risk of getting crushed at the sprocket
Ø 25 mm
Installation help! See: Installation, installing the upper section of
the drum (Fig. 6)
Size: 20 (mm) 40 (mm)
