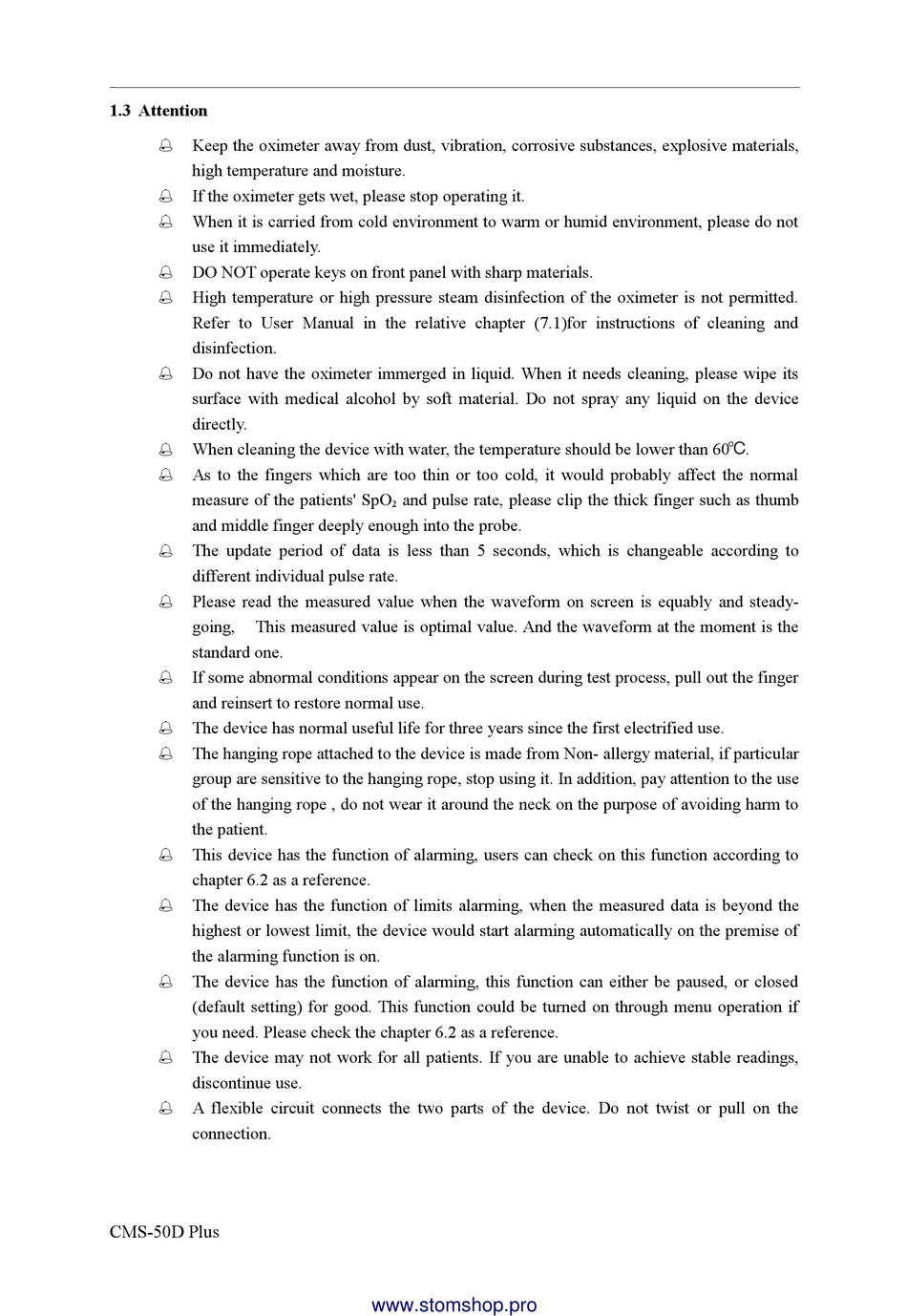

1.3 Attention

 Keep the oximeter away from dust, vibration, corrosive substances, explosive materials,
high temperature and moisture.
 If the oximeter gets wet, please stop operating it.
 When it is carried from cold environment to warm or humid environment, please do not
use it immediately.
 DO NOT operate keys on front panel with sharp materials.
 High temperature or high pressure steam disinfection of the oximeter is not permitted.
Refer to User Manual in the relative chapter (7.1)for instructions of cleaning and
disinfection.
 Do not have the oximeter immerged in liquid. When it needs cleaning, please wipe its
surface with medical alcohol by soft material. Do not spray any liquid on the device
directly.
 When cleaning the device with water, the temperature should be lower than 60 .
 As to the fingers which are too thin or too cold, it would probably affect the normal
measure of the patients' SpO
and middle finger deeply enough into the probe.
 The update period of data is less than 5 seconds, which is changeable according to
different individual pulse rate.
 Please read the measured value when the waveform on screen is equably and steady-
going, This measured value is optimal value. And the waveform at the moment is the
standard one.
 If some abnormal conditions appear on the screen during test process, pull out the finger
and reinsert to restore normal use.
 The device has normal useful life for three years since the first electrified use.
 The hanging rope attached to the device is made from Non- allergy material, if particular
group are sensitive to the hanging rope, stop using it. In addition, pay attention to the use
of the hanging rope , do not wear it around the neck on the purpose of avoiding harm to
the patient.
 This device has the function of alarming, users can check on this function according to
chapter 6.2 as a reference.
 The device has the function of limits alarming, when the measured data is beyond the
highest or lowest limit, the device would start alarming automatically on the premise of
the alarming function is on.
 The device has the function of alarming, this function can either be paused, or closed
(default setting) for good. This function could be turned on through menu operation if
you need. Please check the chapter 6.2 as a reference.
 The device may not work for all patients. If you are unable to achieve stable readings,
discontinue use.
 A flexible circuit connects the two parts of the device. Do not twist or pull on the
connection.
CMS-50D Plus
and pulse rate, please clip the thick finger such as thumb
2
