Phonak RogerDirect Roger X Installation Manual

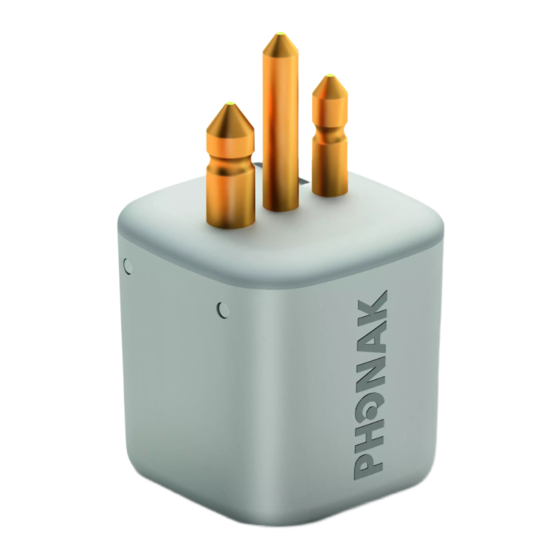

1. (Ensure hearing aid is switched off) Plug the Roger
X into the Europlug on the side of the installation
pad.
2. Switch on the Roger installer
3. A solid green light next to the Roger X receiver
indicates the Roger X contains a receiver code
which is ready to install
4. Turn the hearing aid on and place it on the
hearing aid outline on top of the Roger Installer
pad.
5. The light next to the Roger X receiver will begin
blinking green indicating the installation is in
process.
Phonak RogerDirect Installation Guide: Roger X + Installer Pad
©David Crowhen and Winner Tian - Phonak New Zealand
6. A solid green light next to the hearing aid
indicates successful installation of the RogerDirect
receiver code into the Marvel hearing aid.
7. Remove hearing aid from the Roger installer pad
8. Switch off the Roger installer pad
9. You are ready to connect your Marvel hearing
aid to any Roger transmitter
Important: It is recommended to keep a minimum
of 3m between each Roger Installer during
installation/uninstallation and to keep all other
hearing aids and Roger devices near the installer
pad turned off.
See reverse for the un-installation guide
