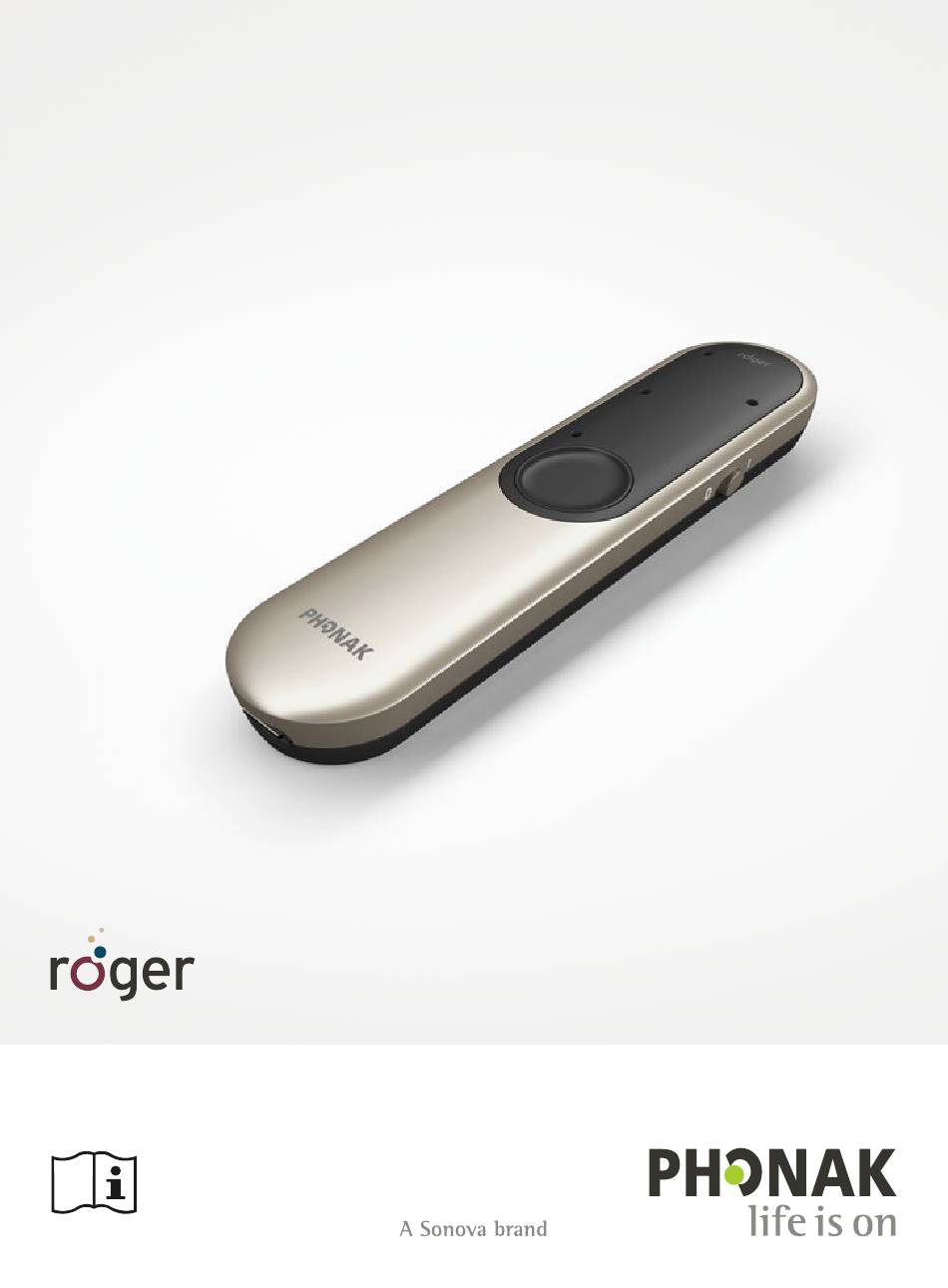

- Page 1 Roger On User Guide...
-
Page 2: Table Of Contents
Contents 1. Welcome 8. Listening to a portable audio device 2. Getting to know your Roger On 9. myRogerMic app 10. Network functions 2.1 Device description 2.2 Docking station 10.1 Connect to a hearing aid or Roger receiver 2.3 Accessories 10.2 Connect another microphone... -
Page 3: Welcome
Please read the User Guide carefully to make sure that you understand and get the best out of your Roger On. For more information regarding features, benefits, setup, use and maintenance or repairs of your Roger On and accessories –... -
Page 4: Getting To Know Your Roger On
There are four main use you want to hear. cases for your Roger On: On a table: Place Roger On in the center of the table and hear the people sitting around it. Party Restaurant... - Page 5 Presenter: Clip or hang Roger On near the mouth of a TV/Multimedia: Stream the sound from your TV or distant talker and hear them better. another audio source directly into your ears. Speech/lecture Watching TV Fitness class...
-
Page 6: Device Description
2 4 microphones 6 Clip 3 Power slider 7 Battery inside 4 Display 8 USB C connector 1 Audio input volume control 2 Slot for Roger On 3 USB C connector 4 3.5 mm analog and optical digital (Toslink) audio input... -
Page 7: Accessories
2.3 Accessories 2.4 Display Microphone mode Table Pointing Presenter Mute Case Device status Power supply Automatic Locked Audio input Battery status Charging cable Full ~8h Mid ~4h Empty Recharge! Lanyard TV cable Analog audio cable... -
Page 8: Technical Data
2.5 Technical data Range: There are three ways to charge your Roger microphone: You can place your Roger On up to 25 meters / 80 feet A) Using external power supply away from you. Note that objects including walls may reduce this distance. - Page 9 B) From computer or tablet C) Via docking station Plug the smaller end (USB C) of the charging cable into Slot the Roger On into the docking your Roger On. station. Plug the larger end (USB A) of the cable into the USB port on your computer and switch your computer on.
-
Page 10: Using Your Roger On
Roger microphone as close to the conversation partner(s) as possible. Adjust the length of the lanyard so that the Roger On is within 20 cm / 8 inches to the mouth of the talker. If you see a crossed chain icon... -
Page 11: Using On A Table
Using the stand function of the case When you want to focus on a single person in front of you, you may insert the Roger On in the case and tilt it up using the stand function. The microphone will pick up everyone around the table, this is indicated by a circle on the display. -
Page 12: Using In Loud Noise
4.4 Using in loud noise Make sure your Roger On is pointing straight at the Hold Roger On in your hand and point it towards the mouth of the talker. person you want to hear. When holding Roger On in the hand, avoid covering the microphone openings. -
Page 13: Listening To A Distant Talker
4.5 Listening to a distant talker Clip Roger On on the lapel of a distant talker to hear them Alternatively, attach the lanyard to better. Roger On and hang it around the neck of a distant talker: The microphone will pick up only the person wearing the microphone;... - Page 14 5. Locking the microphone mode If you want to keep the Roger On in a specific microphone The lock modes will appear in the following order: mode independent on how it‘s positioned, press the function button repeatedly until you have reached the microphone mode you wish to lock the microphone in.
-
Page 15: Listening To Tv Or Other Stationary Audio Device
7. Listening to TV or other stationary audio device 7.1 Setting up the docking station To mute the Roger On, press and hold the function button for two seconds: Insert the smaller end of the USB cable into the socket of the docking station. -
Page 16: Listening To Tv Using The Docking Station
7.2 Listening to TV using the docking station Connect the free end of the optical (Toslink) cable into the optical OUTPUT of your TV or other audio device. Insert your Roger microphone into the docking station. Switch on your TV (or other audio device). Your Roger microphone will automatically transmit the audio signal to your ears. -
Page 17: Listening To A Portable Audio Device
8. Listening to a portable audio device Adjust the volume using the +/- buttons on the Make sure you have switched on your Roger docking station according to your preference. microphone. Plug the rectangular end of the short audio cable into your Roger microphone. -
Page 18: Myrogermic App
Your smartphone needs to support Bluetooth® LE in order to connect to Roger On. myRogerMic app is available for download from Google Play and App Store. For further information about the app please read the myRogerMic app user guide which can be downloaded from www.phonak.com... -
Page 19: Network Functions
10. Network functions 10.1 Connecting to a hearing aid or Roger receiver Hold your Roger On close (within 10 cm/ 4 inches) to the hearing aid or Roger receiver: To connect Roger On to a hearing device with Roger installed or a Roger receiver, follow these steps: Switch on your Roger On and hearing aid. -
Page 20: Connect Another Microphone
Roger On, follow the steps below. Please refer to chapter 11 to learn how to use multiple microphones in a network. Switch on both Roger microphones. Hold your Roger On close (within 10 cm/ 4 inches) to the other Roger microphone. Connect Receiver not... -
Page 21: Disconnecting Roger Devices
Press the Connect button on your Roger On. Connecting another microphone is only required once. The other microphone will remain connected with your Roger On even after the microphones have been restarted. 10.3 Disconnecting Roger devices Check the feedback in the display of Roger On:... -
Page 22: Using In A Large Group
Roger Table Mic II. Please see chapter 10 on how to connect another microphone. When Roger On is used with other microphones, it has to be worn by a talker on the chest. When you place Roger On on the table or when you hold it in your hand, it will mute automatically. -
Page 23: Reset
12. Reset 13. Shipping mode If your Roger On stops responding to commands you can In case you need to return the Roger On for repair it is reset it by pressing the center and connect buttons recommended to put the device in shipping mode. To do together for 10 seconds. -
Page 24: Care And Maintenance
Clean the surfaces with a lint-free cloth. Never use long service life. To ensure a long service life, Phonak cleaning agents such as household detergents, soap, etc. Communications AG provides a minimum of a five year for cleaning your Roger microphone. -
Page 25: Troubleshooting
15. Troubleshooting Problem Causes Solutions I cannot switch my Roger The battery is empty. Charge your Roger microphone for at least two hours. microphone on. I cannot hear sound from my Your Roger microphone is muted. Unmute your Roger microphone by pressing the center button for Roger microphone. - Page 26 Problem Causes Solutions I keep losing the audio signal. Distance between you and your Move closer to your Roger microphone. Roger microphone is too far. There are obstacles between you Try to be in line of sight to your Roger microphone or go closer to and your Roger microphone.
-
Page 27: Compliance Information
This device complies with Part 15 of the FCC of Conformity can be obtained from the manufacturer or Rules and with RSS-210 of Industry Canada. the local Phonak representative whose address can be Operation is subject to the following two taken from the list on https://www.phonak.com/com/en/ conditions: certificates.html (Phonak worldwide locations). - Page 28 Notice 4: These limits are designed to provide reasonable protection against harmful interference in a residential installation. Japanese Radio Law Compliance. Business Law The device generates uses and can radiate radio frequency Compliance. This device is granted pursuant to energy and, if not installed and used in accordance with the Japanese Radio Law .
-
Page 29: Information And Explanation Of Symbols
17. Information and explanation of symbols The CE symbol is confirmation by Phonak Temperature transport and storage: Communications AG that this product is –20° to +60° Celsius (–4° to +140° in compliance with the Radio Equipment Fahrenheit). Directive 2014/53/EU. Temperature operation: 0° to +40° Celsius (+32°... -
Page 30: Important Safety Information
The device may generate magnetic fields. If any nonreplaceable battery. Do not attempt to open the product or remove the battery as influence of the Roger On on the Implantable Device (e.g. pacemakers, defibrillators, etc.) is this may cause injury and damage the experienced, stop using the Roger On and product. - Page 31 The charger provided by Phonak Commuinications AG This device operates between 2.4-2.48 GHz frequency can be used for charging Roger On up to 5000 m range. When flying please check if flight operator altitude. For safety reasons, only use chargers supplied requires device to be switched off.
- Page 32 18.2 Product safety information Store the device in a dry place if you are not using it for a long period of time. Protect the device connectors, plugs, power supply from dirt and debris. Use of this equipment adjacent to or stacked with other equipment should be avoided because it could Do not use excessive force when connecting your result in improper operation.
- Page 33 18.3 Other important information When shipping the device by plane, all the rules and regulation on the safe shipment of lithium-ion batteries apply. Batteries that are suspected defective Protect your eyes of the optical light from the optical should not be shipped by air freight. Toslink cable when plugged into the device or TV.
-
Page 34: Service And Warranty
19.2 International warranty null and void. This warranty does not cover any services Phonak offers a one year limited international warranty, performed by a hearing care professional in his/her valid as of the date of purchase. This limited warranty office. - Page 35 Notes...
- Page 37 Manufacturer: Phonak Communications AG Herrenschwandweg 4 CH-3280 Murten Switzerland www.phonak.com...
