Roger Focus II-312
User Manual
Roger Focus II-312

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roger Focus II-312 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phonak Roger Focus II-312

Summary of Contents for Phonak Roger Focus II-312

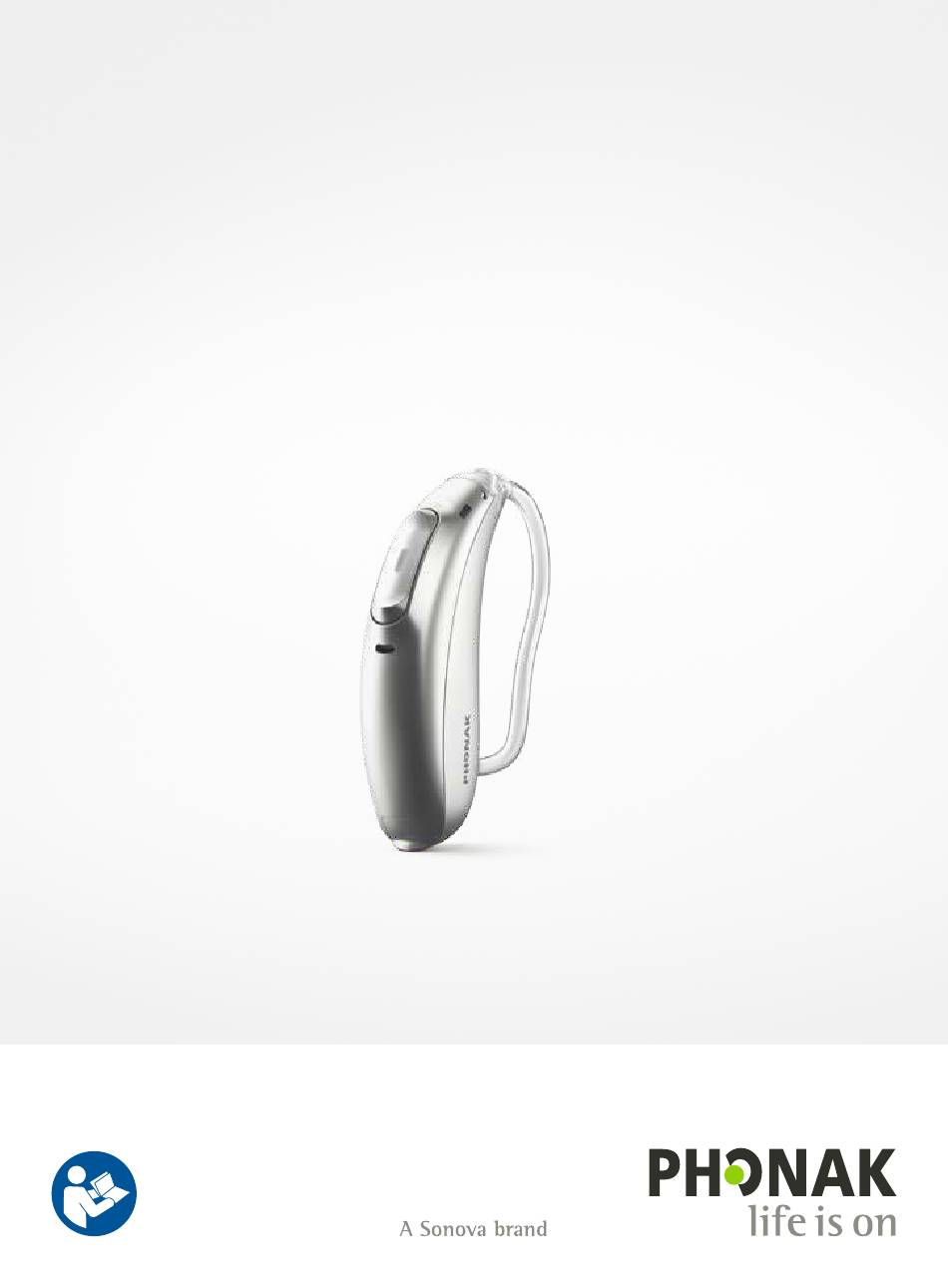

  • Page 1 Roger Focus II-312 User Manual Roger Focus II-312...
  • Page 2 This user manual is valid for: Please ensure you use the correct type of battery in your hearing device (zinc-air). Your hearing device operates between 2.4 GHz– Hearing device 2.48 GHz frequency range. Roger Focus II-312 2020 Model Battery size Roger Focus II-312...

  • Page 3: Table Of Contents

    Contents Your hearing device have been developed by Your hearing device Phonak – the world leader in hearing solutions based 1. Quick guide in Zurich, Switzerland. 2. Parts of the hearing device Using the hearing device These premium products are the result of decades of 3.

  • Page 4: Quick Guide

    1. Quick guide Left & right hearing device markings On/Off Blue marking for left hearing device. For tamperproof battery door instructions Red marking for right hearing device. refer to chapter 5.2. Changing batteries Multi-function button with indicator light Remove the Open the battery Place battery in The button has several functions.

  • Page 5: Parts Of The Hearing Device

    The following picture shows the hearing device described There is a red or blue marking to tell you if it is a left or a in this user manual. right hearing device. Roger Focus II-312 Multi-function SlimTube button with indicator light...

  • Page 6: On/Off

    4. On/Off 5. Batteries The battery door is also the on/off switch. To open 5.1 Insert battery (standard battery doors) tamperproof battery doors refer to chapter 5. Closed battery door = hearing device is on. Remove the sticker Open the Place battery in the battery from the new battery door.
  • Page 7 Color ANSI battery marking on code code size package Roger Focus II-312 brown PR41 7002ZD Place the tip of the tool in Use the tool as leverage the small hole at the to open the battery door bottom of the hearing...
  • Page 8 Inserting the battery Closing the battery door The battery is only tamperproof when the battery door is closed correctly. Always check after closing, that the battery door cannot be opened by hand. Remove the sticker from Place battery in the the new battery and wait battery door with the “+”...

  • Page 9: Putting On The Hearing Device

    6. Putting on the hearing device 7. Removing the hearing device Place the hearing device behind Pull on the bend of the your ear. SlimTube and remove the hearing device from behind the ear. Insert the earpiece into your ear canal. If there is an anchor attached to the earpiece, tuck it into the bowl of your ear to secure your hearing...

  • Page 10: Multi-Function Button With Indicator Light

    ** There is no light when the volume control is locked. *** Consult the quick guide delivered with the hearing device for information regarding beep notifications and using the Phonak remote control.

  • Page 11: Connectivity Overview

    9. Connectivity overview 10. Care and maintenance Diligent and routine care of your hearing device The illustration below shows connectivity options contributes to outstanding performance and a long available for your hearing device. service life. To ensure a long service life, Sonova AG provides a minimum of a five year service period after phase out of the respective hearing device.
  • Page 12 Your hearing device is resistant to water, sweat and dust Daily under the following conditions: Inspect the earpiece and SlimTube for earwax and • The battery door is fully closed. Ensure that no foreign moisture deposits. Clean the surfaces with a lint-free object such as hair is caught in the battery door when it cloth or use the small brush provided in the hearing is closed.

  • Page 13: Exchanging The Earpiece

    11. Exchanging the earpiece Your hearing device is fitted with a SlimTube and earpiece. 11.1 Removing the earpiece from the SlimTube Please check the earpiece regularly and exchange or clean it if it looks dirty or if the hearing device volume or sound Remove the earpiece from the quality is reduced.
  • Page 14 11.2 Attaching the earpiece to the SlimTube Hold the SlimTube in one hand and the earpiece in the other. Slide the earpiece over the sound outlet. The SlimTube and the earpiece should fit perfectly together.

  • Page 15: Service And Warranty

    12. Service and warranty Local warranty Warranty limitation Please ask the hearing care professional, where you This warranty does not cover damage from improper purchased your hearing device, about the terms of handling or care, exposure to chemicals or undue stress. the local warranty.

  • Page 16: Compliance Information

    Radio Equipment Directive 2014/53/EU. The Canada IC: 2262A-BST full text of the EU Declaration of Conformity can be obtained from the manufacturer or the local Phonak representative whose address can be taken from the list on www.phonak.com/us/en/certificates (Phonak worldwide locations).
  • Page 17 Notice 1: no guarantee that interference will not occur in a This device complies with Part 15 of the FCC Rules and particular installation. If this device does cause harmful with RSS-210 of Industry Canada. Operation is subject to interference to radio or television reception, which can be the following two conditions: determined by turning the equipment off and on, the user 1) this device may not cause harmful interference, and...
  • Page 18 Radio information of your hearing device Antenna type Resonant loop antenna Immunity standards EN 60601-1-2:2015 Operation frequency 2.4 GHz – 2.48 GHz IEC 60601-1-2:2014 Modulation GFSK, Pi/4 DPSK, GMSK EN 61000-4-2:2009 Radiated power < 1 mW IEC 61000-4-2:2008 Bluetooth® EN 61000-4-3:2006+A1+A2 Range IEC 61000-4-3:2006+A1+A2 Bluetooth...

  • Page 19: Information And Description Of Symbols

    14. Information and description of symbols With the CE symbol, Sonova AG confirms that This symbol indicates that it is important this product – including accessories – meets the for the user to read and take into account the requirements of the Medical Device Directive relevant information in these user manuasl.
  • Page 20 The product is designed such that it functions Temperature during transportation and storage: Operating conditions without problems or restrictions if used as –20° to +60° Celsius (–4° to +140° Fahrenheit). intended, unless otherwise noted in this user manual. The hearing device is classified IP68 Humidity during transportation: Up to 90% (depth of 1 meter for 60 minutes) and designed to (non condensing).

  • Page 21: Troubleshooting

    15. Troubleshooting Problem Causes What to do Hearing device not functioning Dead battery Change battery (chapter 5) Earpiece blocked Clean earpiece (chapter 10) Battery not inserted correctly Insert battery correctly (chapter 5) Hearing device switched off Switch hearing device on by completely closing battery door (chapter 5) Hearing device too loud Volume too loud Decrease volume (chapter 8)

  • Page 22: Important Safety Information

    16. Important safety information Please read the information on the following pages before Hearing device batteries are toxic if they are swallowed! Keep using your hearing device. out of the reach of children, individuals with cognitive impairment, and pets. If batteries are swallowed, consult your 16.1 Hazard warnings physician immediately! Your hearing device operates between 2.4 GHz–2.48 GHz...
  • Page 23 If you feel pain in or behind your ear, if it is inflamed or if If using a Phonak wireless accessory, consult the chapter skin irritation and accelerated accumulations of earwax occur, “Important safety information” in your wireless accessory please check with your hearing care professional or physician.
  • Page 24 16.2 Information on product safety Avoid strong physical impacts to the ear when wearing a hearing device with customized earpiece. The stability of customized earpieces is designed for normal use. A strong These hearing device is water resistant and not waterproof. It physical impact to the ear (e.g.
  • Page 25 When you are not using your hearing device, leave the battery Remove the battery if you are not using your hearing device door open so that any moisture can evaporate. Make sure that for a long period of time. you always completely dry your hearing device after use. Store the hearing device in a safe, dry and clean place.
  • Page 26 Notes...
  • Page 27 Your hearing care professional: Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland www.phonak.com...
