Industrial Electronic Devices
RS485:

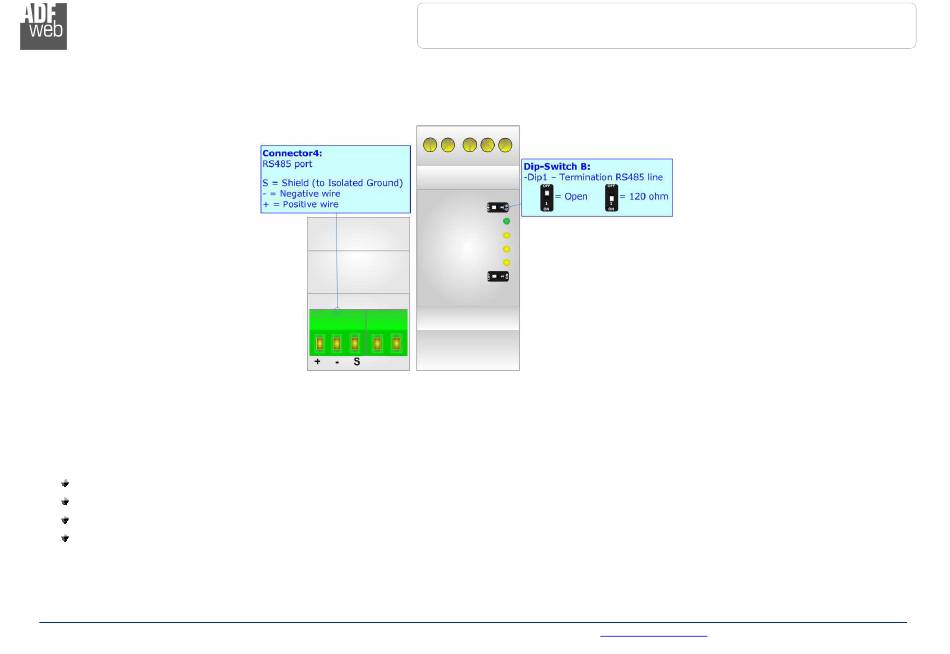

For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Client / Serial
Document code: MN67B08_ENG
Revision 1.001
INFO:
www.adfweb.com
Page 12 of 33
Phone +39.0438.30.91.31
