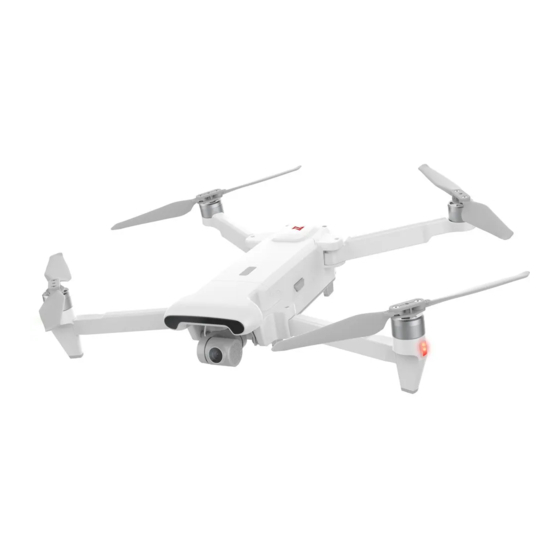

FIMI X8 SE 2020 Drone Quick Start Manual
Please read the quick start manual carefully before using and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X8 SE 2020 and is the answer not in the manual?

Questions and answers

Summary of Contents for FIMI X8 SE 2020

  • Page 1 FIMI X8 SE 2020 Drone Quick Start Manual Please read the quick start manual carefully before using and keep it for future reference.
  • Page 2 Product Introduction 1 Drone Positive propeller Power button Battery level lights Reverse propeller Integrated gimbal camera Flight status lights...
  • Page 3 Landing gear Optical flow camera Ultrasonic detecting module Drone tail light Motor Battery buckle...
  • Page 4 Product Introduction 2 Remote controller Auto return Stick storage slot Mobile device holder Left stick Right stick Power button USB port Cable slot Five-directional button Battery level lights Charging port Auto take-off/land button...
  • Page 5 Record button Shoot button Left dial Antenna Right dial...
  • Page 6 Adjust the value of EV / ISO Short press to view the battery level Power button Short press+long press 2 seconds to power on / off Note: The other functions of the five-directional button can be set in the FIMI Navi app.
  • Page 7 Right Backward Forward Left Drone heading Down Forward Counter- Clockwise Left Right clockwise Down Backward Left stick Right stick Note: The stick mode can be set in FIMI Navi app (the default is American hand).
  • Page 8 Basic Specification Drone Remote controller Product model: FMWRJ03A6 Net weight: About 373g Dimensions: 204×106×72.6mm Dimensions: 203.8×91×46.6mm Diagonal size: 372mm Operating frequency: 5.725-5.850GHz Take off weight: About 765g Type: Rechargeable lithium battery Flight time: About 35min* Capacity: 3900mAh Max ascending speed: 5m/s Nominal voltage:...
  • Page 9 The 35 minutes flight time refers to constant speed at 10m/s (no wind) with fully charged and low cyclic battery. Remote control distance reach to 8km (FCC) in open area and no interference . All above testing and data come from FIMI laboratory, errors may occur in actual use for operating and environmental changes.
  • Page 10 Charging 1 Charge drone battery Connect the battery,charger and AC cable as shown below, and plug the charger into a power outlet. When the battery is in charge, the battery level lights are flashing. When the battery is fully charged, the battery level lights go out. It takes about 2 hours to fully charge the battery.
  • Page 11 2 Charge RC Connect the remote controller to a power adapter as show below. When the RC is in charge, the battery level lights are flashing. when the RC is fully charged, the battery level lights go out. It takes about 2.5 hours to fully charge the RC in the powered off condition.
  • Page 12 Assembly and Disassembly 1 Propellers Unfold the front and rear arms of the drone. Attach the gray marked propellers to the motor mounting base with gray marks on the arms. Ensure the propeller is pressed to the bottom of the mounting base. Rotate the propeller to the end of the lock direction until the propeller gets bounced and locked.
  • Page 13 2 Drone TF card When installing TF card to the drone,please unfold the arms of the drone first and open the protective cover. Insert the TF card with the literal upward into the TF card slot. When removing TF card, press the TF card to pop out.
  • Page 14 3 Battery Push hard the battery, after the battery installed in place, there will be a "click" sound. To remove the battery, you need to press the battery buckle on both sides to pull out.
  • Page 15 Open the protective cover on the RC bottom. Connect your phone and the RC with a USB cable. Connect the drone and update firmware according to instructions in FIMI Navi app. Note: The cable slot is reserved on the right .
  • Page 16 Prepare to Fly 1 Confirm the drone heading The direction of build-in gimbal is the drone heading. Once the drone is turned on, the heading can be told by navigation lights. The red light and the green light indicate the heading,and the yellow light is the tail. Drone heading green yellow...
  • Page 17 2 Turning on/off the drone and the RC Short press+long press power button 2 seconds to power on/off. Short press to check battery level Drone Remote controller...
  • Page 18 Flying 1 Auto take-off/landing The drone meets the auto take-off/landing condition when the auto take-off/landing button light is white. Press this button for 2 seconds to auto take off/landing. Auto take-off Auto landing 2 Manual take-off/landing Left stick Right stick Left stick Right stick Keep both sticks to the bottom inner still over 3 seconds, the propellers start spinning.
  • Page 19 Slowly move the left stick downward to land the drone. Once the drone has landed, push and hold the left stick down over 5 seconds, the motors will stop. Left stick Right stick Safety tips: The drone has no waterproof function. Please be careful of landing environment. Do not land on an inclined plane for safety.
  • Page 20 3 Stop propellers in an emergency When motors can't properly turn off, please toggle the left stick to the bottom inner in maximum range, and press Auto take-off/landing button for 5 seconds simultaneously, the motors will stop. Safety tips: Do not do the above operation during normal flight to avoid motors being stopped in the air.
  • Page 21 4 Shooting and Recording Press the shoot button to take a photo. A photo is taken when you hear 2 short sounds. Press the record button to record video. Recording starts when you hear 2 short sounds. Press again to stop recording with 4 short sounds. During recording, short press the shoot button to capture a picture.( only support 1920x1080 25|30|50|60fps) The pitch angle of the gimbal can be controlled by toggling the left dial up and down.
  • Page 22 light Recognition 1 Drone lights Drone lights Drone status All lights is fading in and out Self-checking Drone on the ground: self-check fails All lights are on Drone is flying: internal error The red and green lights are on and the Ready to fly/in flight yellow light is flashing at regular intervals All lights flashing twice...
  • Page 23 Safety Flight In visual range Good GPS signal Open and unobstructed environment Warm tips: Fly only in open areas, and avoid people, animals, trees, vehicles and buildings. Keep away from airports, railways, highways, high-rises, electric wires and areas where drones are restricted. Keep away from telecommunication base stations, high-power antennas and areas with complex electromagnetic signals.
  • Page 24 Scan the QR code to download FIMI Navi app...
