Parker Console
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B1
bolt &
50mm
nut x30
screw x8
E
D
E3
E1
E2
50mm
slide
screw x10
rail x4
H
14mm
screw x2
anchor x2

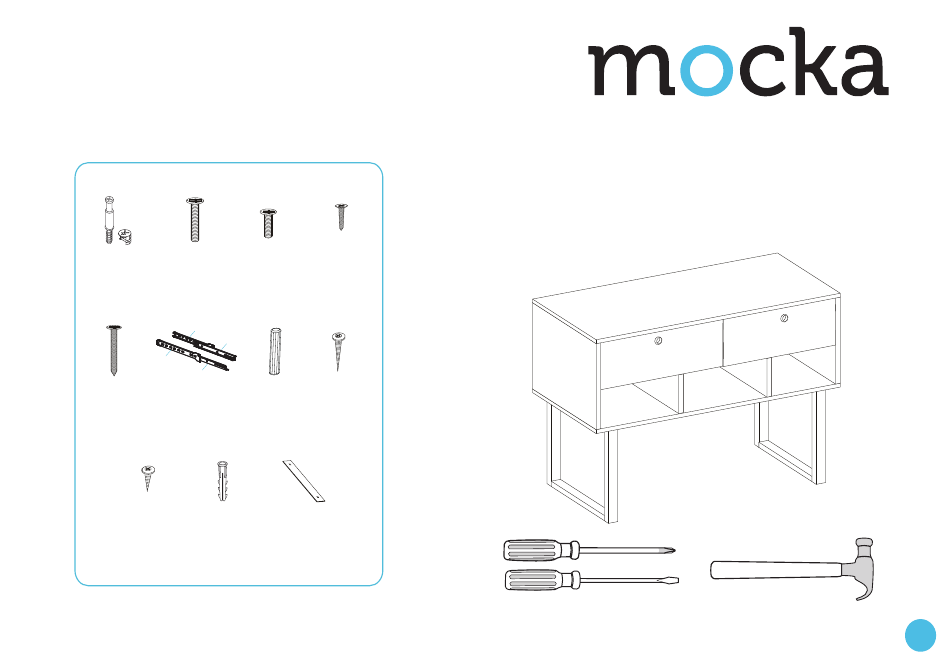

Hardware Supplied

*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
B2
C
30mm
12mm
screw x8
screw x16
G
F
E4
dowel
25mm
screw x2
x24
I
J
wall
wall
strap x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are used to prevent your product tipping.
The fixing device provided should fit most wall types, but please note that different wall materials
may require different fixing devices from those supplied.
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parker Console and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Parker Console

Summary of Contents for Mocka Parker Console

  • Page 1 Parker Console Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
  • Page 2 Parker Console Assembly Instructions Attach the leg panels together as shown using 8x 50mm screws (B1). Attach panel [2] to the legs using 8x 30mm screws (B2). Tighten with a Tighten with a screwdriver. screwdriver. Insert 8x bolts (A) into panel [2].
  • Page 3 Parker Console Assembly Instructions flip Insert 2x bolts (A) and attach 1x slide rail (E1) to panel [4] using 2x Attach 1x slide rail (E3) to one side of panel [6] using 2x 12mm screws 12mm screws (C). Insert 2x bolts (A) and attach 1x slide rail (E3) to (C).
  • Page 4 Parker Console Assembly Instructions Insert 4x bolts (A) into the back of panel [3] as shown. Attach panels [4], [5] and [7] to panel [3] using 8x dowels (F) and 8x locking nuts (A). Tighten with a screwdriver as shown.
  • Page 5 Parker Console Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [6] to panel [3] using 2x dowels (F) and 2x 50mm screws Insert 6x bolts (A) into panel [1]. (D). Attach panels [4], [5] and [7] to panel [2] using 8x dowels (F) and 8x locking nuts (A).
  • Page 6 Parker Console Assembly Instructions Slide panel [8] down along the grooves between panels [4] and [5] to Attach panels [11], [12] and [13] together using 4x 50mm screws (D). Slide form the back of the unit. Attach panel [1] to panels [4], [6] and [5] using panel [14] between the side panels and attach panel [9]/[10] using 4x nut 6x dowels (F) and 6x locking nuts (A).
  • Page 7 Parker Console Assembly Instructions Safety Straps Ensure unit is balanced and steady before use. You’re done, enjoy! Insert the drawers, ensuring they slide smoothly against the rails. Once assembled, lift furniture into the desired position against a wall, do not drag.
