Summary of Contents for ITW Simco-Ion Top Gun Ionizing Air Gun
- Page 1 Ionizing Air Gun Top Gun User’s Manual...
- Page 2 Simco-Ion Technology Group is a division of Illinois Tool Works (ITW), located in Alameda, California. For more information about Simco-Ion visit www.simco-ion.com or call +1 800-367-2452. Simco-Ion is ISO 9001-2015 certified.
- Page 3 Important Safety Information Carefully read the following safety information before installing or operating the equipment. Failure to follow these safety warnings could result in damage to your ionization system and/or voiding the product warranty. Always wear safety glasses when operating blow-off gun. ...
- Page 4 Informations de Sécurité Importantes Lisez attentivement les consignes de sécurité suivantes avant d'installer ou d'utiliser l'équipement. Le non-respect de ces avertissements peut entraîner des dommages à votre système d'ionisation et/ou d'annuler la garantie du produit. Toujours porter des lunettes de sécurité lors de l'utilisation purge pistolet.
-
Page 5: Table Of Contents
Contents 1 Description ................1 1.1 Top Gun Ionizing Air Gun ................ 2 1.2 Air Gun Assembly ..................3 1.3 Power Unit Assembly................5 2 Installation ................6 2.1 Mounting the Power Unit................7 2.2 Connections ..................... 8 2.3 Mounting the Gun Hanger............... 8 2.4 Optional Remote Control Connection ............ -
Page 6: Description
Description 1.1 Top Gun Ionizing Air Gun 1.2 Air Gun Assembly 1.3 Power Unit Assembly 5101015-01 Rev 2... -
Page 7: Top Gun Ionizing Air Gun

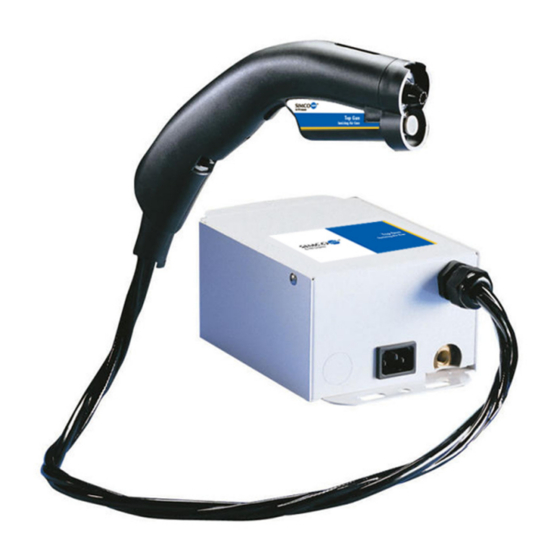

1.1 Top Gun Ionizing Air Gun Simco-Ion’s Top Gun Ionizing Air Gun combines air ionization with a forceful compressed air blast in a convenient hand held gun. Top Gun provides the ability to clean and neutralize electrostatically charged items; neutralizing the charges also prevents re-attraction of the particulate. -
Page 8: Air Gun Assembly
1.2 Air Gun Assembly Simco-Ion’s Top Gun is an ionizing air gun that produces an intense air flow rich in both positive and negative air ions. Directing the air flow on an item that has a static electricity charge will neutralize the charge and clean the item. - Page 9 a reference ring on the front of the ionizing cartridge. Adjustment of ion balance can be accomplished at the gun. Top Gun uses a light touch trigger for operation. Pressing the trigger activates a control circuit which operates the air flow solenoid and the low current, high voltage transformer, which are both located in the power unit.
-
Page 10: Power Unit Assembly
1.3 Power Unit Assembly Top Gun can use clean dry compressed air, nitrogen or carbon dioxide at pressures up to 100 psi. Compressed gas is connected to a power unit that contains a solenoid to turn gas flow on and off. High quality polyurethane tubing conducts the gas to the gun. -
Page 11: Installation
Installation 2.1 Mounting the Power Unit 2.2 Connections 2.3 Mounting the Gun Hanger 2.4 Optional Remote Control Connection 5101015-01 Rev 2... -
Page 12: Mounting The Power Unit
2.1 Mounting the Power Unit The power unit can be mounted on any convenient surface such as a wall or work bench leg using the mounting flanges. The rear flanges have a mounting hole pattern that will match a variety of pre- punched holes often found on work bench legs or perforated angle stock. -
Page 13: Connections
2.2 Connections Compressed Air Connection Compressed air, nitrogen or carbon dioxide is supplied to the power unit through a 1/4" NPT female connector. The connector contains a screen to stop large debris from entering the unit. Do not remove this connector. Support the connector with a wrench while installing the user supplied compressed air fitting. -
Page 14: Optional Remote Control Connection
2.4 Optional Remote Control Connection CAUTION! ELECTRICAL SHOCK HAZARD Conductors carrying AC power line voltage and high voltage are exposed when covers are off and power is connected. PRUDENCE! RISQUE DE CHOC ÉLECTRIQUE Conducteurs transportant AC le courant secteur puissance et haute tension sont exposés lorsque les couvertures sont désactivées et la puissance est reliée. -
Page 15: Top Gun With Sidekick
2.5 Top Gun with Sidekick If you ordered your Top Gun with Sidekick, then you have also received the flexible semi-rigid neck stand we call Sidekick along with a footswitch. Figure 5. Top Gun Ionizing Air Gun with Sidekick The Sidekick flexible stand may be mounted onto any flat benchtop or wall surface. - Page 16 ______________ Not to scale. The nozzle and cable must be protected from impact with moving machine components. La buse et le câble doit être protégé des impacts avec déplacement composants de la machine. 5101015-01 Rev 2...
-
Page 17: Operation
Operation 3.1 Performance 3.2 Using Top Gun 3.3 Using the Sidekick Footswitch 3.4 Using the Optional Optical Sensor 5101015-01 Rev 2... -
Page 18: Performance
3.1 Performance Top Gun reduces a static charge of ±1000 V down to 100V in less than 1.3 second at a distance of six inches (15 cm) using 30-psi air pressure. Discharge times vary upon air pressure used. Reference the ESD Association ANSI/ESD Standard STM3.1-2006 for test procedure. -
Page 19: Using Top Gun
3.2 Using Top Gun Hold the nozzle of Top Gun at the desired distance (typically 2 to 12 inches from object to be cleaned) and press trigger to activate air flow and ionization. Use a back and forth motion to clean object, the ionization will neutralize any static charges. -
Page 20: Using The Sidekick Footswitch
3.3 Using the Sidekick Footswitch If you have ordered Top Gun with Sidekick, then you have also received the footswitch. The switch connects to the power supply and when depressed, activates both airflow and power to the ion emitter assembly. A red LED on the nozzle indicates power. 3.4 Using the Optional Optical Sensor For automated assembly operation, Top Gun may be ordered with an infrared Optical Sensor. -
Page 21: Maintenance
Maintenance 4.1 Maintenance Requirements 4.2 Emitter Cleaning & Inspection 4.3 Filter-Nozzle Replacement 4.4 Balance & Ion Output Test 4.5 Replacing the Electrical Safety Fuse 5101015-01 Rev 2... -
Page 22: Maintenance Requirements
4.1 Maintenance Requirements Top Gun requires very little maintenance. Occasional cleaning of the case and emitter points and periodic replacement of the air filter is all that is required. Always be sure to protect all components from liquids and corrosive chemicals and avoid dropping the gun on hard surfaces. -
Page 23: Filter-Nozzle Replacement
4.3 Filter-Nozzle Replacement The compressed air filter uses a special filter media that changes color as contaminants are trapped. When the filter media changes to a red color or air flow is restricted, filter-nozzle replacement is indicated. Figure 7. Top Gun Replacement Filter Simco-Ion offers two types of replacement filters for Top Gun. - Page 24 If the filter does not release, grasp the nozzle and rotate the filter as far as it will easily turn. Insert screwdriver and use gentle “prying” motion to free lock collar. Be very careful not to damage the chassis of Top Gun while using this procedure to replace the filter. It may be necessary to repeat the above steps, turning filter in the opposite direction to release a jammed lock collar.
-
Page 25: Balance & Ion Output Test
4.4 Balance & Ion Output Test Ion balance (offset voltage) and ion output (discharge time) are measured using a charge plate monitor such as the Simco-Ion Model 280A Charged Plate Monitor. The standard for this test procedure is ANSI/ESD STM3.1. The typical testing interval is six months. - Page 26 (3.5 bar) and fully open flow control knob in gun handle. Perform positive and negative discharge time tests (1000 to 100V) and average the results. Check results against data in Section 3.1 Performance. If a charged plate monitor is not available, you can use a hand-held fieldmeter such as the Simco-Ion FMX-004 or Model 775 to check ion output using the following procedure: 1.
-
Page 27: Replacing The Electrical Safety Fuse
4.5 Replacing the Electrical Safety Fuse Top Gun is provided with a 250V, Time-lag, 5 x 20 mm fuse located in a fuse drawer on the power inlet module. CAUTION! Turn OFF Top Gun and disconnect it from power before attempting to access the fuse drawer. ATTENTION: Désactiver le modèle Top Gun et débranchez-le de la source d'alimentation avant de tenter d'accéder à... -
Page 28: Specifications
Specifications 5.1 Specifications 5.2 Parts & Accessories 5101015-01 Rev 2... -
Page 29: Specifications
5.1 Specifications Input Voltage 120 VAC, 60 Hz, 0.2A; 230 VAC, 50/60 Hz, 0.1A 1.3 sec @ 6” (15.2 cm), 30 psi (±1000-100V); 0.5 sec @ 2” (5 cm), 60 psi Discharge (±1000-100V) Balance 0 ±15V Power Inlet IEC320 with 400 mA SLO fuse Air Inlet 1/4”... -
Page 30: Parts & Accessories
5.2 Parts & Accessories Part No. Description 4106197-01 Top Gun Blow-off Gun with 7' (2.4m) Cable 4106235-01 Top Gun Blow-off Gun with 14' (4.8m) Cable 4106337-01 Top Gun Blow-Off Gun with Sidekick 5050692 Gun Hanger Kit 5050696 Filter-nozzle Kit (2 filter-nozzles) 5051416 Filter Premium Replacement Kit (2 per pkg) 4106206... -
Page 31: Warranty & Service
Warranty & Service Simco-Ion provides a limited warranty for the Top Gun Ionizing Air Gun. New products manufactured or sold by Simco-Ion are guaranteed to be free from defects in material or workmanship for a period of two (2) years from date of initial shipment. Simco-Ion liability under its new product warranty is limited to servicing (evaluating, repairing, or replacing) any unit returned to Simco-Ion that has not been subjected to misuse, neglect, lack of routine... - Page 32 Technology Group 1141 Harbor Bay Pkwy, Ste 201 Alameda, CA USA 94502 Toll free: +1 800-367-2452 Sales services: +1 510-217-0460 Tech support: +1 510-217-0470 Fax: +1 510-217-0484 salesservices@simco-ion.com techsupport@simco-ion.com www.simco-ion.com 5101015-01 Rev 2...
