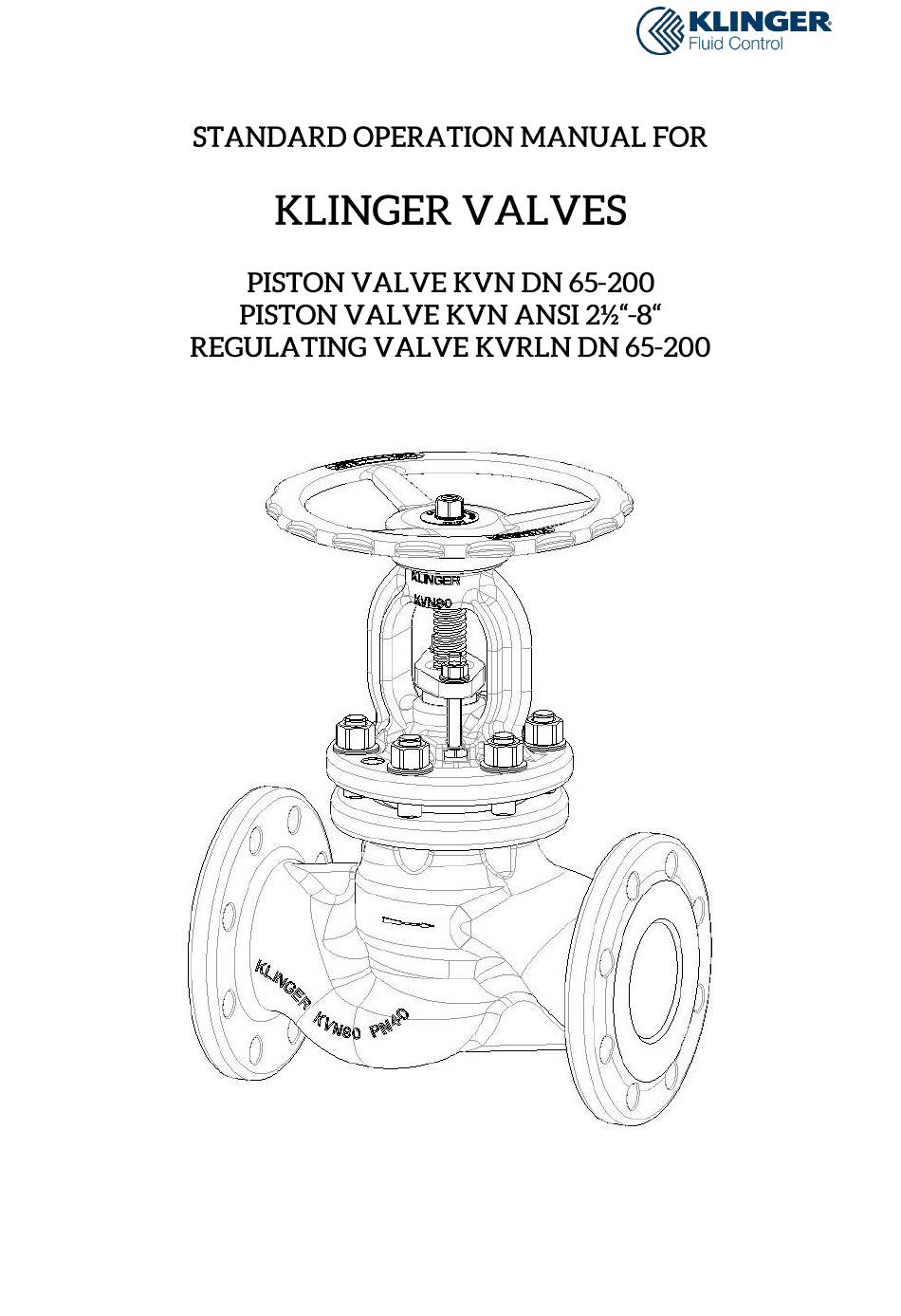

- Page 1 Issued: 09/2017 KLINGER Fluid Control GmbH Am Kanal 8-10 » 2352 Gumpoldskirchen » Austria office@klinger.kfc.at » www.klinger.kfc.at » Tel: +43 2252 600-0 wT 1255/12 Page 1...
-
Page 2: Table Of Contents
Contents Declaration of Conformity ................3 Individual Parts Designation ................. 4 Proper Use ....................5 Testing of KLINGER Valves ................5 Labeling of the Valves .................. 5 Safety Instructions ..................6 General Notes on Safety ................6 Safety Instructions for Operators ..............6 Hazard Warnings .................. -
Page 3: Declaration Of Conformity
1 Declaration of Conformity wT 1255/12 Page 3... -
Page 4: Individual Parts Designation
2 Individual Parts Designation 21 Split nut Body 22 Washer Bonnet 23 Disc Handwheel 24 Hex head screw Piston 25 Stud bolt Lantern bush 26 Securing ring Back seat 27 Bonnet securing nut Spindle 28 Hex nut notched 10 Piston shaft 29 Gland retainer securing nut 11 Gland retainer 30 Hex nut... -
Page 5: Proper Use
Subject to technical alterations and misprints! 4 Testing of KLINGER Valves KLINGER Valves are pressure-tested in accordance with EN 12266-1. The pressure test comprises the tests P10, P11 and P12. Testing the resistance to pressure of the piston (P20) is not included in the standard package. -
Page 6: Safety Instructions
6 Safety Instructions This operation manual must be brought to the attention of the operating personnel. 6.1 General Notes on Safety The safety instructions for valves also apply to the pipeline systems, into which they are installed. This operating manual exclusively focuses on safety instructions, which are to be additionally complied with for valves. -
Page 7: Hazard Warnings
» when applying internal pressure for the first time (pressure test, trial operation) a sufficient safety distance is to be maintained. » it is prohibited to open screw connections (with the exception of those on hand levers and handwheels), when pressurized (medium). »... - Page 8 Electromagnetic radiation hazard: » The hazards resulting from possibly created electromagnetic radiation are to be consulted in the operating manual of the actuator manufacturer. Hazards linked to the operational environment: » The ambient atmosphere and the ambient temperature are to be set in a manner that has no negative influence on the valve, the actuator of the valve, and the medium.
-
Page 9: Technical Data
7 Technical Data 7.1 Material codes The main criterion of the material codes is the basic material of the body. Symbol Body Interior Parts Grey cast iron Without nonferrous metal parts Brass Nonferrous metal parts possible Spheroidal cast iron Without nonferrous metal parts Cast steel Nonferrous metal parts possible VIII... - Page 10 The diagrams illustrate all possible limitations of use of KLINGER valves. CAUTION The area of application for standard valves is from -10 °C up to +400 °C. wT 1255/12 Page 10...
-
Page 11: Tightening Torques
7.3 Tightening Torques The values provided below are approximations and valid for lubricated stud bolts and nuts. Valves, which have already been in operation over longer periods of time, and already show wear and tear on the sealing surfaces and/or are not tight at higher pressures due to gaseous media, can be made tight again by retightening the bonnet securing nut (Pos. -
Page 12: Transportation And Storage
Furthermore, it should be ensured that the valves and possibly mounted actuators have not been damaged during transport. Please also check that the supplied valves (types, nominal sizes etc.) correspond with the order. KLINGER Fluid Control is to be notified immediately of any kind of deviations. Regarding damage obviously resulting from transportation, please contact the freight forwarder in charge of delivery. -
Page 13: Installation And Putting Into Service Regulations
10 Installation and Putting into Service Regulations Piston valves can be installed into the pipe system in any given orientation. The preferred flow direction, however, should be taken into consideration in this context. This series of piston valves is equipped with a pressure compensated piston and therefore does not show any piston pump effect. -
Page 14: Service And Maintenance
11 Service and Maintenance Maintenance and inspection intervals are to be determined by the operator dependent on the operating mode, as these valves can be utilized under a number of different operating conditions. Maintenance and inspection work may only be carried out by trained personnel. -
Page 15: Disassembly For Valve Ring Replacement
11.1 Disassembly for Valve Ring Replacement » Depressurize and purge pipe » Fully open piston valve » Unscrew and remove bonnet securing nuts (Pos. 27) and belleville washers (Pos.33) » Rotate the handwheel (Pos. 3) clockwise (closing direction) until the bonnet is moved out of the body and the bonnet flange is situated above the stud bolts »... -
Page 16: Bonnet Disassembly And Assembly
11.3 Bonnet Disassembly and Assembly All individual parts, especially the sealing surfaces, must be thoroughly inspected prior to assembly. Damaged parts must be replaced with new CAUTION parts. Visible dirt on the machined parts must be removed. Special care must be taken to avoid the KX-GT rings being inserted into CAUTION the bore if they become jammed with the mounting tool. -
Page 17: Valve Ring Installation And Assembly
11.4 Valve Ring Installation and Assembly All individual parts, especially the sealing surfaces, must be thoroughly inspected prior to assembly. Damaged parts must be replaced with new CAUTION parts. Visible dirt on the machined parts must be removed. Special care must be taken to avoid the KX-GT rings being inserted into CAUTION the bore if they become jammed with the mounting tool. -
Page 18: Conversion Of An On/Off Valve To A Control Valve
12 Conversion of an on/off Valve to a Control Valve The difference between a KVN piston valve and a KVRLN control valve is the lantern bush. The control lantern bush features a defined geometry, which results in an almost linear flow curve and simplifies the control of media flows. -
Page 19: Actuator Mounting
» Now fully close and then reopen valve (the bonnet recedes into the body during the opening process) » Retighten hex nuts » Fully close valve (turn handwheel right) » Tighten hex nuts in accordance with tightening torques provided in table »... -
Page 20: Spare Parts List
14 Spare Parts List Spare parts set: Piston shaft complete Nominal size 65 / 2 ½“ 130.5 80 / 3“ 142.5 100 / 4“ 150 / 6“ 200 / 8“ Spindle Nominal size 65 / 2 ½“ 22 x 5 80 / 3“... - Page 21 Threaded bush Nominal size 65 / 2 ½“ M40 x 1.5 Tr 22 x 5 80 / 3“ M40 x 1.5 Tr 22 x 5 100 / 4“ M48 x 1.5 Tr 24 x 5 M48 x 1.5 Tr 24 x 5 150 / 6“...
-
Page 22: Special Tools
14.1 Special tools Lantern drawer: Nominal size Order Number 65 / 2 ½“ A006025 80 / 3“ A006026 100 / 4“ A006007 A006028 150 - 200 / 6“- 8“ A006029 Ring extractor hook: Nominal size Order Number 65 - 100 / 2 ½“- 4“ A006017 125 - 200 / 6“- 8“...
