Keysight Technologies N9048B Installation Note
Emi receiver; option cnf, rf input connector, type-n upgrade kit
Hide thumbs
Also See for N9048B:
- Installation note (9 pages) ,
- Security features and document of volatility (58 pages) ,
- Installation kit (10 pages)
Related Manuals for Keysight Technologies N9048B
Summary of Contents for Keysight Technologies N9048B

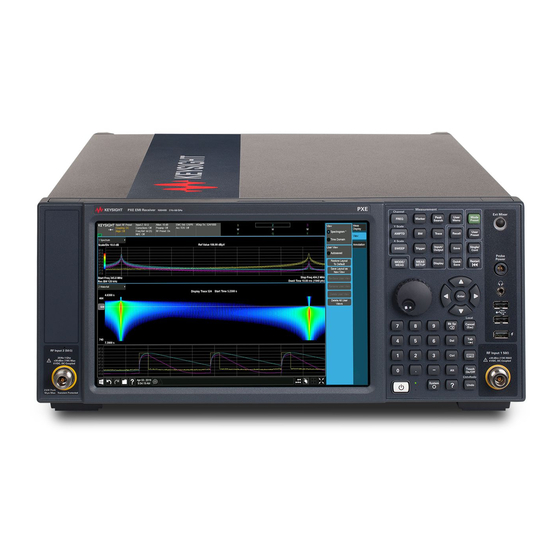

- Page 1 Keysight Technologies N9048B EMI Receiver Option CNF, RF Input Connector, Type-N Upgrade Kit Installation Note...
- Page 2 The information contained in this document is subject to change without notice. Keysight Technologies makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Option CNF, Type-N Front Input Connector Upgrade Kit Option CNF, Type-N Front Input Connector Upgrade Kit Products Affected: N9048B - Option 503, 508, and 526 Serial Numbers: ≥ MY58480000 To Be Performed By: (X) Keysight Service Center ( ) Personnel Qualified by Keysight...
- Page 4 Option CNF, Type-N Front Input Connector Upgrade Kit Contents - Option CNF, Type-N Female Front Input Connector Upgrade, N9048-60016 Quantity Description Keysight Part Number Option Upgrade Entitlement Certificate 5964-5178 Installation Note, Option CNF N9048-90018 Connector assembly, RF Input, Type-N female N9038-60021 Connector assembly, RF Input 08559-60002...
- Page 5 — T-20 Torx driver — T-10 Torx driver — 5/16-inch open end wrench — N9048B PXE Service Guide can be found online at the following URL: www.keysight.com/find/N9048B_service_guide — Personal computer with internet access and USB port — USB storage device with > 2 GB free memory If adjustments and performance testing is required: —...
-
Page 6: Installation Procedure
Installation Procedure Installation Procedure Remove the Instrument Outer Case, Front Panel Assembly, and Right Side Chassis (RF Bracket) If the instrument is placed on its face during any of the following procedures, be sure to use a soft surface or soft cloth to avoid damage to the front panel, keys, or input connector. See the Instrument Outer Case, Front Frame Assembly and RF Area (RF Bracket) removal procedures in the Service Guide “Assembly Replacement Procedures”... - Page 7 Installation Procedure Re-Install the Right Side Chassis, Front Frame Assembly, and Instrument Outer Case See the Instrument Outer Case, Front Frame Assembly and RF Area procedures in the Service Guide “Assembly Replacement Procedures” chapter if needed. Attach the Front Frame using the eight screws (0515-2032) included in the kit.
-
Page 8: Installation Procedure Over Usb
Installation Procedure over USB Installation Procedure over USB 1. Locate the Option Upgrade Entitlement Certificate from the kit. 2. Redeem the Option Upgrade Entitlement Certificate by following the instructions on the Certificate. 3. After redeeming your Option Upgrade Entitlement Certificate you will receive an email with an attached License File. -
Page 9: Verify The Installation
The License File can be manually installed over USB or LAN by placing the license file in the following folder on the signal analyzer C:\Program Files\Agilent\licensing Verify the Installation 1. Press System, Show System to display a list of installed options. 2. Verify that N9048B-CNF appears on the list. Installation Note N9048-90018... - Page 10 For assistance, contact your nearest Keysight Technologies Sales and Service Office. To find your local Keysight office access the following URL, or if in the United States, call the following telephone number: http://www.keysight.com/find/assist...
- Page 11 This information is subject to change without notice. © Keysight Technologies 2019 Edition 1, July 2019 N9048-90018 www.keysight.com...
