Important Safety Information

For the Installer and End User

WARNING
To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep
the remote control away from children.
3. Always keep people and objects away from the gate. NO
ONE SHOULD CROSS THE PATH OF THE MOVING
GATE.
4. Test the gate operator monthly. The gate MUST reverse on
contact with a rigid object or stop when an object activates
the non-contact sensors. After adjusting the force or the limit
of travel, retest the gate operator. Failure to adjust and retest
the gate operator properly can increase the risk of injury or
death.
I. Before Installation
1. Verify this operator is proper for the type and size of gate,
frequency of use and class of the gate system.
2. Make sure the gate has been properly installed and swings
freely in both directions. Repair or replace all worn or
damaged gate hardware prior to installation. A freely moving
gate will require less force to operate and will enhance the
performance of the entrapment protection devices used with
the system (see Prepare the Gates on page 3).
3. Review the operation of the system to become familiar with
its safety features. Understand how to disconnect the operator
for manual gate operation (see page iii).
4. The gate and operator installation must comply with any
applicable local codes.
ZONE 2
ZONE 5
ZONE 3
ZONE 4

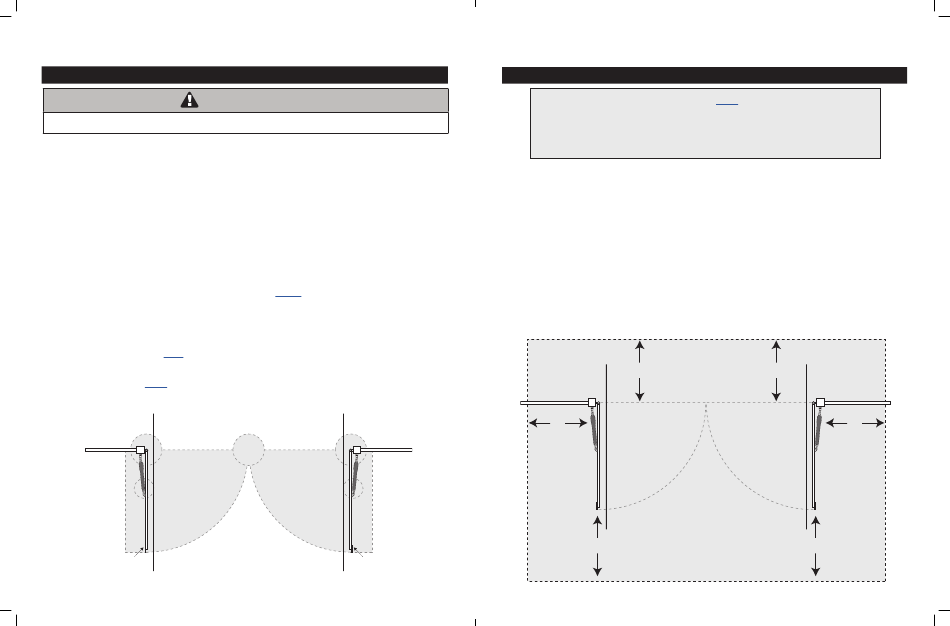

Entrapment Zones for a
Gate in the
Open Position
Pull-To-Open Application
iv
HD272 Installation Instructions
5. Use the manual/emergency release only when the gate is not
moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the
user's manual. Have a qualified service person make repairs
to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use
separate entrance.
8. The gate must be installed in a location that provides
adequate clearance between it and adjacent structures
when opening and closing to reduce the risk of entrapment.
Swinging gates must not open into public access areas.
9. SAVE THESE INSTRUCTIONS.
5. This gate operator is intended for vehicular gates only. A
separate entrance or gate must be installed for pedestrian use
(see page viii).
6. Always keep people and objects away from the gate and its
area of travel. No one should cross the path of a moving gate.
7. Identify all of the entrapment zones for the type of
installation. An entrapment zone is an area around the
automatic gate system where a person or object could be
caught that increase the risk of injury. Entrapment zones must
be eliminated, guarded or protected.
8. When designing a system that will be entered from a highway
or main thoroughfare, make sure the gate system is placed far
enough from the road to prevent traffic congestion.
ZONE 1
ZONE 2
ZONE 5
ZONE 3
Driveway ZONE 4
Gate in the
Open Position
Important Safety Information
For the Installer and End User
Typical Entrapment Zones are shown in the diagrams on
Zone 1 – leading edge of the gate and the fence post.
Zone 2 – between the gate and the gate post.
Zone 3 – the path of the gate.
Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.
Zone 5 – pinch points between the operator and gate.
II. During Installation
1. Install the gate operator on the inside of the
property and fence line. DO NOT install an
operator on the outside of the gate where the
public has access to it.
2. Be careful with moving parts and avoid close
proximity to areas where fingers or hands could
be pinched.
3. Devices such as contact sensors (sensing
edges) and non contact sensors (photo beams)
provide additional protection against vehicular
damage.
Pull-To-Open Application
10'
10'
Moving Gate
Area
Driveway
NEVER INSTALL
any control device
10'
within gray area
page iv:
4. If push buttons or key switches are installed, they
should be within sight of the gate, located at least
10 feet from any moving part of the gate (see
diagram below). Never install any control device
where a user will be tempted to reach through
the gate to activate the gate operator.
5. Do not activate your gate operator unless you can
see it and can determine that its area of travel is
clear of people, pets, or other obstructions. Watch
the gate through its entire movement.
6. Secure outdoor or easily accessed gate operator
controls in order to prohibit unauthorized use of
the gate.
10'
10'
Moving Gate
Area
10'
HD272 Installation Instructions
