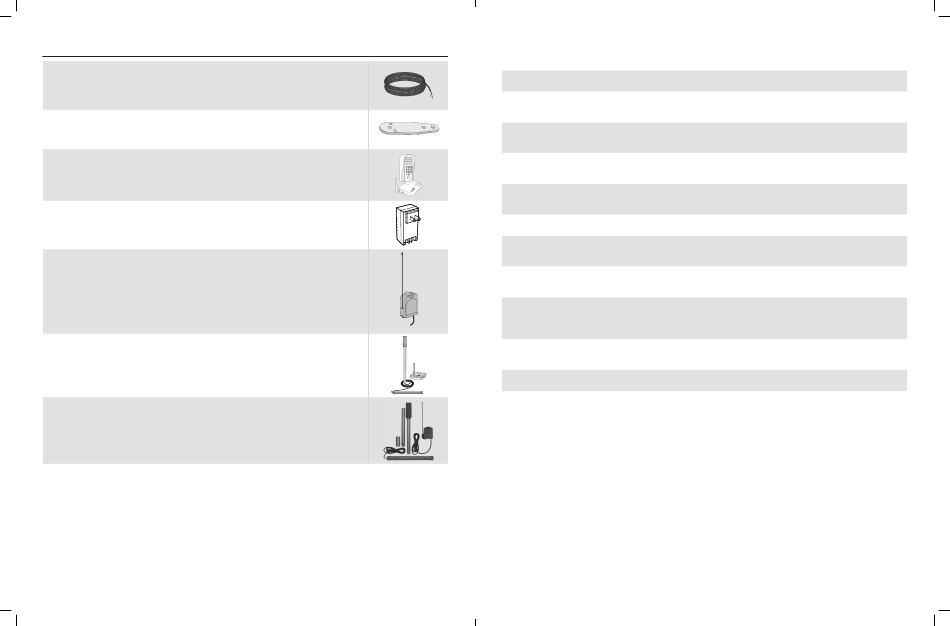

Accessories are Available From Your Retail Store (con't)
Low Voltage Wire (RB509)
The 16 gauge, multi-stranded, dual conductor Low Voltage Wire is for connecting the AC powered
transformer, or the Solar Panel to the control board. Also used for the connection of accessories, such as
locks, keypads, push buttons and other wired control devices. This specially designed wire is UV treated,
PVC coated and ready for direct burial
Push to Open Bracket (FM148)
Required when Mighty Mule gate opener must push the gate open, such as on a sloping driveway or
where space prevents gate(s) from opening inward (pulled open). Order two brackets for conversion of a
dual swing gate installation.
Wireless Entry Intercom / Keypad (MM136)
Allows owner to screen guest at the gate before allowing access to the property. Keypad also allows
owner to give up to 25 programmable entry codes to family, friends or approved delivery personnel.
Codes can be permanent or temporary. Up to 500 feet reception.
Additional base stations available (MM136B).
Replacement Transformer (RB503)
16VDC power supply for maintaining the battery with the Mighty Mule gate operator.
Garage Door Receiver (RB709U-NB)
The Garage Door Receiver allows you to use the same 2 button Mighty Mule entry transmitter to operate
your gate operator and your garage door operator. Compatible with most garage door operators.
Wireless Driveway Alarm (FM231)
This device alerts you of vehicles entering and exiting your property. When a vehicle passes the sensor,
the receiver emits an audible tone and lets you know someone's there. Functional range of up to 400 ft.
Easy-to-install.
Wireless Driveway Vehicle Sensor (FM130)
Automatically activates gate operator "Hands-Free" when a vehicle exits the property. 100 ft. range
between transmitter and receiver. Easy installation.
If you have a question about any special order item, call 1-800-543-4283
The contents of all material available on this installation manual are copyrighted by Nortek Security & Control, LLC ("NSC"), unless otherwise indicated. All rights are reserved by NSC, and content may not be reproduced, downloaded,
disseminated, published, or transferred in any form or by any means, except with the prior, written permission of NSC. Any reprinting of NSC publications is by permission only. Copyright infringement is a violation of federal law.
Mighty Mule¨, E-Z Gate¨, NSC¨, "Dual Sense Technology" are registered trademarks of Nortek Security & Control, LLC, America's DIY Automatic Gate Openers is a trademark of Nortek Security & Control, LLC and are the exclusive property of
Nortek Security & Control, LLC ("NSC").
All rights are reserved by NSC, and these marks may not be used, in any for without the prior, written permission of NSC.
29
HD272 Installation Instructions

Gate Operator Installation Checklist

1. The gate has been checked to make sure it is level and moves freely in both directions.
❑
2. Potential pinch areas have been guarded so as to be inaccessible OR have sensing edges and/or photo
❑
beam obstruction detection devices installed.
3. The installer has installed one or more contact or non-contact obstruction sensing devices, if required for
❑
this installation.
4. If pedestrian traffic is expected, a separate pedestrian gate has been installed, a minimum of seven feet
❑
from the gate system. All pedestrian traffic must use the pedestrian gate.
5. Warning signs have been installed on each side of the gate in highly visible locations. These signs must
❑
remain at all times.
6. There are no controls installed on the gate operator, or within 10 feet of the gate.
❑
7. The Dual Sense Technology™ feature has been properly adjusted to the minimum operational setting for
❑
your application.
8. Reviewed and understand all of the operational functions, obstruction sensing devices, warning beeper
❑
and reset, etc.
9. Review and understand the proper use of the operator's manual disconnect feature. The manual
❑
disconnect must never be used while the gate is in motion. The power switch must be turned off before
using the manual disconnect and disengaging the operator.
10. Reviewed all safety instructions, and keep the safety instructions and owner's information sheets for
❑
reference.
11. Review and understand the maintenance schedule for both the gate and the gate operator.
❑
