Connect Opener Power Cables

Step 1
Bring FIRST power cable into the control box through a strain relief slot,
leaving enough wire to reach the FIRST OPR. terminal block.
Insert the individual power cable wires into appropriate terminals on the FIRST
OPR. terminal block (white to WHT; green to GRN; red to RED; black to BLK).
Tighten the set screws. A dab of petroleum jelly on each terminal will help
prevent corrosion.
Step 2
Pull the 36' second opener power cable through the PVC conduit and secure in
the driveway slot/trench (see page 6 and page 16).
Step 3
Insert the SECOND power cable into a strain relief slot. Bring power cable into
the control box through a strain relief slot, leaving enough wire to reach the
SECOND OPR. terminal block.
Insert the individual power cable wires into appropriate terminals on the
SECOND OPR. terminal block (white to WHT; green to GRN; red to RED;
black to BLK). Tighten the set screws. A dab of petroleum jelly on each terminal
will help prevent corrosion.

Connect the Transformer

(*Solar Instructions on page 23)
NEVER USE TRANSFORMER AND SOLAR PANEL(S) AT THE SAME TIME!
IMPORTANT INFORMATION ABOUT LOW VOLTAGE WIRE:
• The only wire acceptable for use with NSC products is 16 gauge multi-stranded, low voltage, direct burial wire. This
particular gauge enables the transformer to provide an adequate charge through the control board to the battery at
distances up to 1000'.
• DO NOT use telephone wire or solid core wire. Unlike multi-stranded wire, these types of wire are inadequate for use
with your gate opener system.
• NEVER splice wires together. Splicing permits corrosion and seriously degrades the wire's ability to carry an adequate
current.
Step 1
Make sure the power switch is OFF.
Step 2
Select the electrical outlet where you will plug the transformer. Measure the
distance from this outlet to the control box following the path where the wire
will be laid. After you have measured how much wire is needed, cut the wire to
the appropriate length (up to 1000').
15
HD272 Installation Instructions
STATUS
1st OPR.
OPEN < JOG > CLOSE
2nd OPR.
MIN MAX OFF 120
SEC.
STALL FORCE AUTO CLOSE
SET
PWR.
LIMIT
REMOVE JUMPER FOR
PUSH TO OPEN OPTION
SFTY.
≤JP1
VAR1
EXIT
VAR2
CYCLE
VAR3
EDGE
VAR4
SENSOR
COMMON
VAR5
LOCK+
LOCK– PF1
K1
WHT
GRN
K2
RED
BLK
BATT +
BATT –
WHT
K3
GRN
RED
K4
BLK
CHARGE
OR
SOLA
VAR6
ON OFF
Low Voltage Wire from
Transformer or Solar
Wrong Wrong
Correct
Terminal Terminal Terminal
Wire Wire Wire
Block Block Block
ON/OFF
Switch
ON/OFF

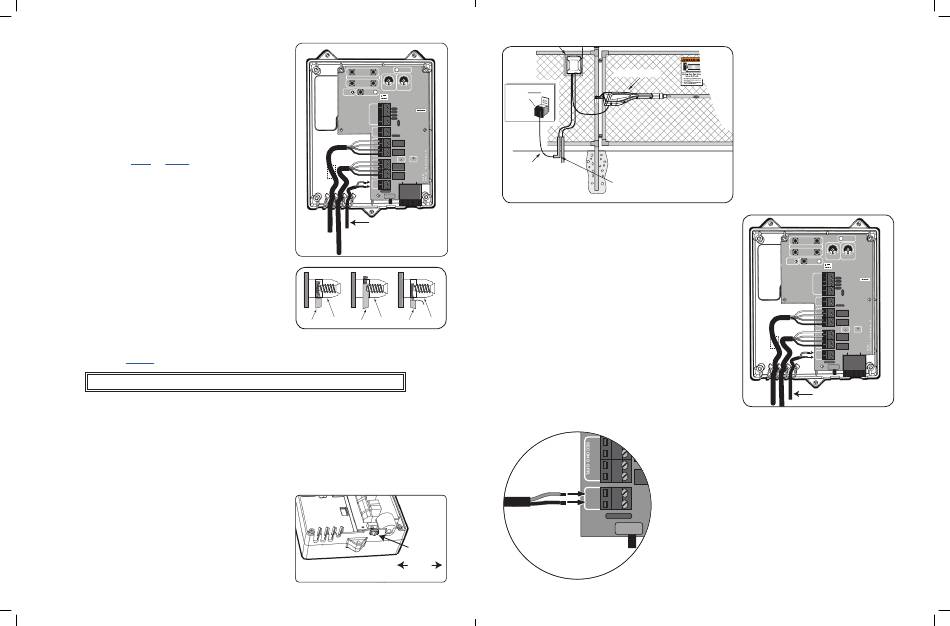

Control Box
First Gate Opener
120 Volt indoor
Transformer
(surge protector
not supplied)
Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included). PVC conduit (not included)
to protect wire from lawn
mowers and weed eaters.
Step 4
Bring enough wire up through the PVC conduit to reach the control board.
BATT +
Step 5
WHT
K3
GRN Strip 3
these ends to the 16VDC OR SOLAR terminals located on the terminal
RED
K4
block). Be certain not to let the exposed wires touch each other!
BLK
Insert one transformer wire into a 16VDC OR SOLAR terminal. Insert the
CHARGE
other transformer wire into the remaining 16VDC OR SOLAR terminal. The
OR
transformer wires can be connected to the 16VDC OR SOLAR terminals
SOLA
Low Voltage Wire regardless of color/polarity.
VAR6
from Transformer
Tighten set screws against exposed end of wires. A dab of household
or Solar Panel
ON OFF
petroleum jelly on each terminal will help prevent corrosion.
Step 3
Lay the measured length of low voltage wire
in a trench following a path from the selected
electrical outlet to the control box. Wires coming
up from the ground should be run through PVC
conduit to protect them from lawn mower blades,
weed eaters, and grazing animals. Be sure to bury
the wire laid in the trench.
STATUS
1st OPR.
OPEN < JOG > CLOSE
2nd OPR.
MIN MAX OFF 120
SEC.
STALL FORCE AUTO CLOSE
SET
PWR.
LIMIT
REMOVE JUMPER FOR
PUSH TO OPEN OPTION
SFTY.
≤JP1
EXIT VAR1
VAR2
CYCLE
VAR3
EDGE
VAR4
SENSOR
COMMON
VAR5
LOCK+
LOCK– PF1
K1
WHT
GRN
K2
RED
BLK
BATT +
BATT –
WHT K3
GRN
RED
K4
BLK
CHARGE
OR
SOLA
VAR6
ON OFF
Low Voltage Wire from
Transformer or Solar
/ 16 " off the ends of the low voltage wire and twist tightly. Attach
