Codonics Virtua C Reference Manual

Hide thumbs Also See for Virtua C:

Advertisement

Quick Links

Download this manual
®
Virtua
C Reference Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Virtua C and is the answer not in the manual?

Questions and answers

Related Manuals for Codonics Virtua C

Summary of Contents for Codonics Virtua C

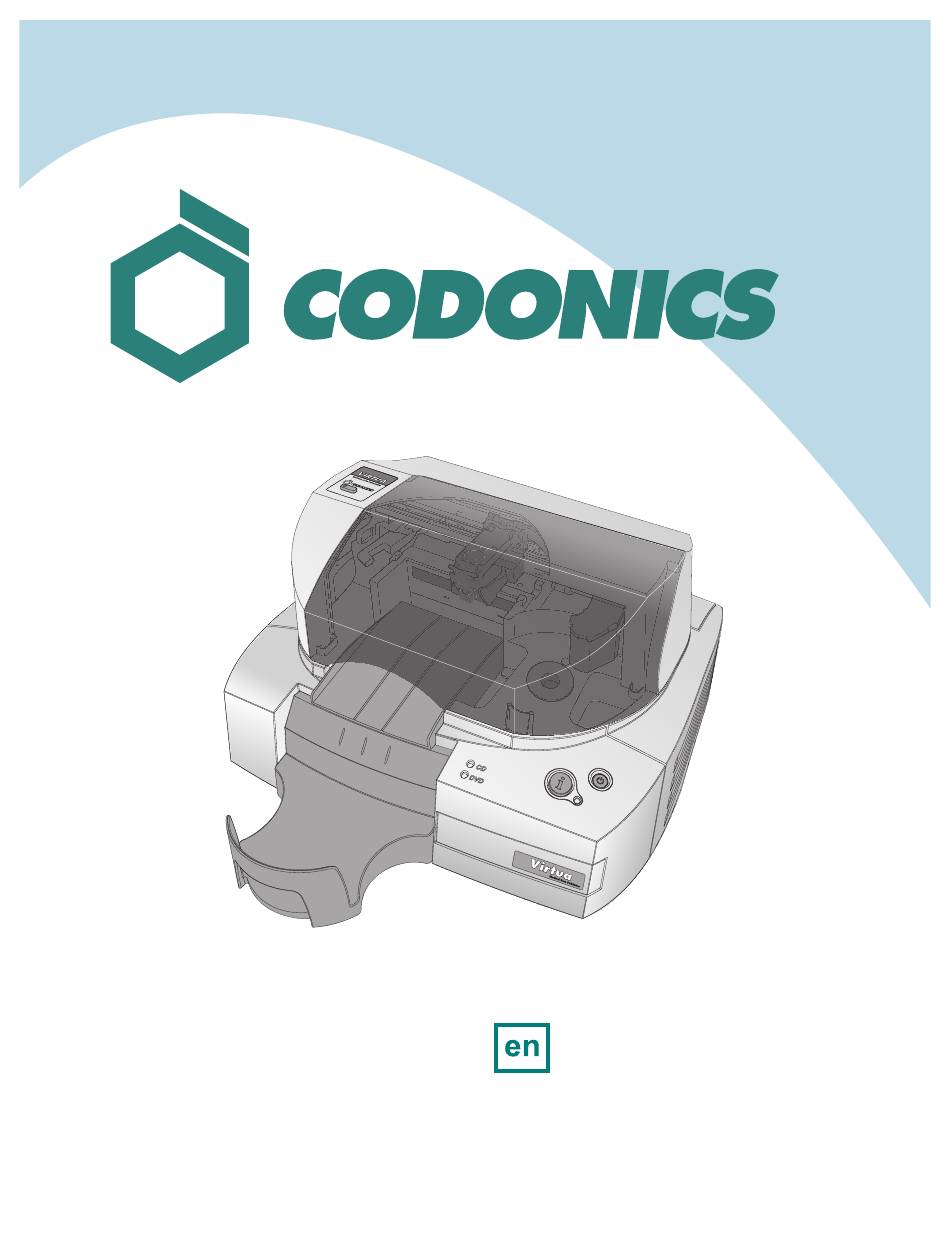

  • Page 1 ® Virtua C Reference Guide...
  • Page 3 Components ............................1 Assembly ..............................5 Startup ..............................11 Media Loading ............................12 System Status............................15 Shutdown.............................. 16 SmartDrive Configuration ........................17 DICOM Host Set-up..........................20 Virtua C Configuration .......................... 21 Record Studies ............................. 27 Software Installation ..........................31 Troubleshooting ............................ 32...
  • Page 5 `çãéçåÉåíë= 1. Recorder 3. Controller 2. Recorder 4. Output bin cover...
  • Page 6 5. Ink Cartridge Load button 9. Eject ramp and light 10. Robotic disc transporter 6. Ink cartridge carrier 11. Input bin 7. Printer tray 8. CD/DVD optical drive Virtua C Reference Guide...
  • Page 7 12. SmartDrive USB port 15. System Information button (behind output bin) 16. CD and DVD Status lights 13. System power button 17. SmartDrive 14. System status light...
  • Page 8 18. Recorder eSATA port 22. Controller Ethernet port 19. Recorder USB 2.0 port 23. Controller eSATA port 20. Recorder power port 24. Controller Recorder power port 21. Controller USB 2.0 ports (4) 25. Controller power input port Virtua C Reference Guide...
  • Page 9 ^ëëÉãÄäó= NOTE: A complete User’s Manual is included on the Accessories and Manuals disc. The User’s Manual includes additional details and safety notices. 1. Place the Controller on a solid level surface. NOTE: For proper airflow, allow approximately 4 in. (10 cm) around the Controller. 2.
  • Page 10 Class B limits of EN 60601-1 and CISPR 11. 175VA (100 - 240 Vac) 50 / 60 Hz LINE IN eSATA RECORDER IOIOI POWER FRONT MIC IN 4. Connect the eSATA cable between the Controller and the Recorder. Virtua C Reference Guide...
  • Page 11 CEpartner4U BV, Esdoornlaan 13 3951 DB Maarn, The Netherlands Phone: +31.6.516.536.26 Codonics Inc.,17991 Englewood Dr. Middleburg Heights OH, 44130 USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not Windows®...
  • Page 12 175VA (100 - 240 Vac) 50 / 60 Hz LINE IN eSATA RECORDER IOIOI POWER FRONT MIC IN 7. Connect the Controller power cord. 8. Configure the SmartDrive according to “SmartDrive Configuration” on page 17. 9. Install the SmartDrive. Virtua C Reference Guide...
  • Page 13 10. Install the output bin. 11. Open the top cover. 12. Install the ramp.
  • Page 14 13. Make sure that the ramp is fully seated on the Recorder floor. NOTE: The two cutouts on the back edge of the rear lip of the ramp should be up against the tabs, not on top of them. Virtua C Reference Guide...
  • Page 15 pí~êíìé= 1. Press the Controller power button. 2. Wait for startup to complete, indicated when the System status light is on. The light will be red if there is no ink cartridge installed.
  • Page 16 1. Open the Recorder top cover. 2. Press the Ink Cartridge Load button. 3. Wait for the ink cartridge carrier to finish moving from the disc transporter. 4. Open the ink cartridge carriage. Virtua C Reference Guide...
  • Page 17 5. Remove the color ink cartridge tape. 6. Install the color ink cartridge.
  • Page 18 7. Close the ink cartridge carriage. 8. Load the discs (white side up). CAUTION: Do not load clear protective discs. 9. Close the Recorder cover. Virtua C Reference Guide...
  • Page 19 póëíÉã=pí~íìë= 1. View the CD, DVD, and System status lights to see system status. 2. Press the System Information button to hear narrated system status messages.
  • Page 20 1. Press and hold the System power button for about a second. 2. Wait for the lights to turn off. Virtua C Reference Guide...
  • Page 21 1. If the SmartDrive is installed in the Controller, shut down Virtua C and remove the SmartDrive. 2. Insert the SmartDrive in a PC. pÉí=kÉíïçêâ=fåÑçêã~íáçå= 1. Use a text editor to edit the file: \profiles\network\network.default.txt. 2. Make desired changes to: ipAddress (the default static IP address is 192.168.1.202).
  • Page 22 2. Make desired changes to the site information. p~ãéäÉ=ÑáäÉW=ëáíÉKÇÉÑ~ìäíKíñí= NOTE: The highlighted parameters should be changed for typical installations. [ SiteProfile ] address0 = Codonics Imaging Center address1 = 17991 Englewood Drive address2 = Suite D address3 = Middleburg Heights, OH 44130...
  • Page 23 = waves beepingDisabled = false autoLogoutIdleDelay = 0 voiceDisabled = false systemVolume = 3 oÉíìêå=íÜÉ=pã~êíaêáîÉ=íç=sáêíì~=`= 1. Unmount the SmartDrive from Windows. 2. Remove the SmartDrive from the PC. 3. Reinsert the SmartDrive in Virtua C. 4. Start up Virtua C.
  • Page 24 Automatically record studies, and automatically select the media type. AutoCD Automatically record studies on a CD. AutoDVD Automatically record studies on a DVD. 1. Configure the Calling AE Title, TCP port, and IP address of Virtua C. Virtua C Reference Guide...
  • Page 25 1. Enter the Virtua C IP address in a web browser. 2. Click the Username field. Type “admin”. 3. Click the Password field. Type “codonics”. 4. Click the Log In button.
  • Page 26 1. Click the Setup button. 2. Click the Users tab. 3. Select the User Name. 4. Enter the Password. 5. Confirm the Password. 6. Set the Administrator mode (optional). 7. Click the Save button. Virtua C Reference Guide...
  • Page 27 sáÉï=páíÉ=fåÑçêã~íáçå= 1. Click the Setup button. 2. Click the Site tab.
  • Page 28 1. Click the Utilities button. 2. Click the Ink and Media tab. 3. Select the desired media type. 4. Load the selected media type in the input bin. Virtua C Reference Guide...
  • Page 29 iç~Ç=aÉãç=píìÇáÉë= 1. Click the Utilities button. 2. Click the Diagnostics tab. 3. Click the Load button.
  • Page 30 1. Click the Setup button. 2. Click the Date & Time tab. 3. Enter the Date. 4. Enter the Time. 5. Click the Save button. NOTE: Virtua C will reboot automatically. Virtua C Reference Guide...
  • Page 31 oÉÅçêÇ=píìÇáÉë= 1. Click the Studies button. 2. Click the Studies tab. 3. Select the Filter. 4. Select the Studies. 5. Click the Record button.
  • Page 32 6. Click the Edit Options button. Virtua C Reference Guide...
  • Page 33 7. Select a disc label. 8. Select DICOM viewer(s) to be included on the disc. 9. Set Make Auto-Run (optional). 10. Select the media type. 11. Select the number of copies. 12. Click the OK button.
  • Page 34 13. Click the OK button to record the disc. Virtua C Reference Guide...
  • Page 35 9. After the shutdown is complete, close the Recorder cover. 10. Press the System power button to start up Virtua C. 11. Wait for the software installation to complete and for Virtua C to reboot (which could take about 45 minutes), indicated when the System status light is green.
  • Page 36 Delete the file \profiles\user\user.admin.txt on the SmartDrive to restore the default password codonics. The network is not Verify that the network settings for Virtua C at the sending host and on the responding. SmartDrive are properly configured. Verify that the network cable is connected.
