Virtua
Reference Guide
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtua and is the answer not in the manual?

Questions and answers

Related Manuals for Codonics Virtua

Summary of Contents for Codonics Virtua

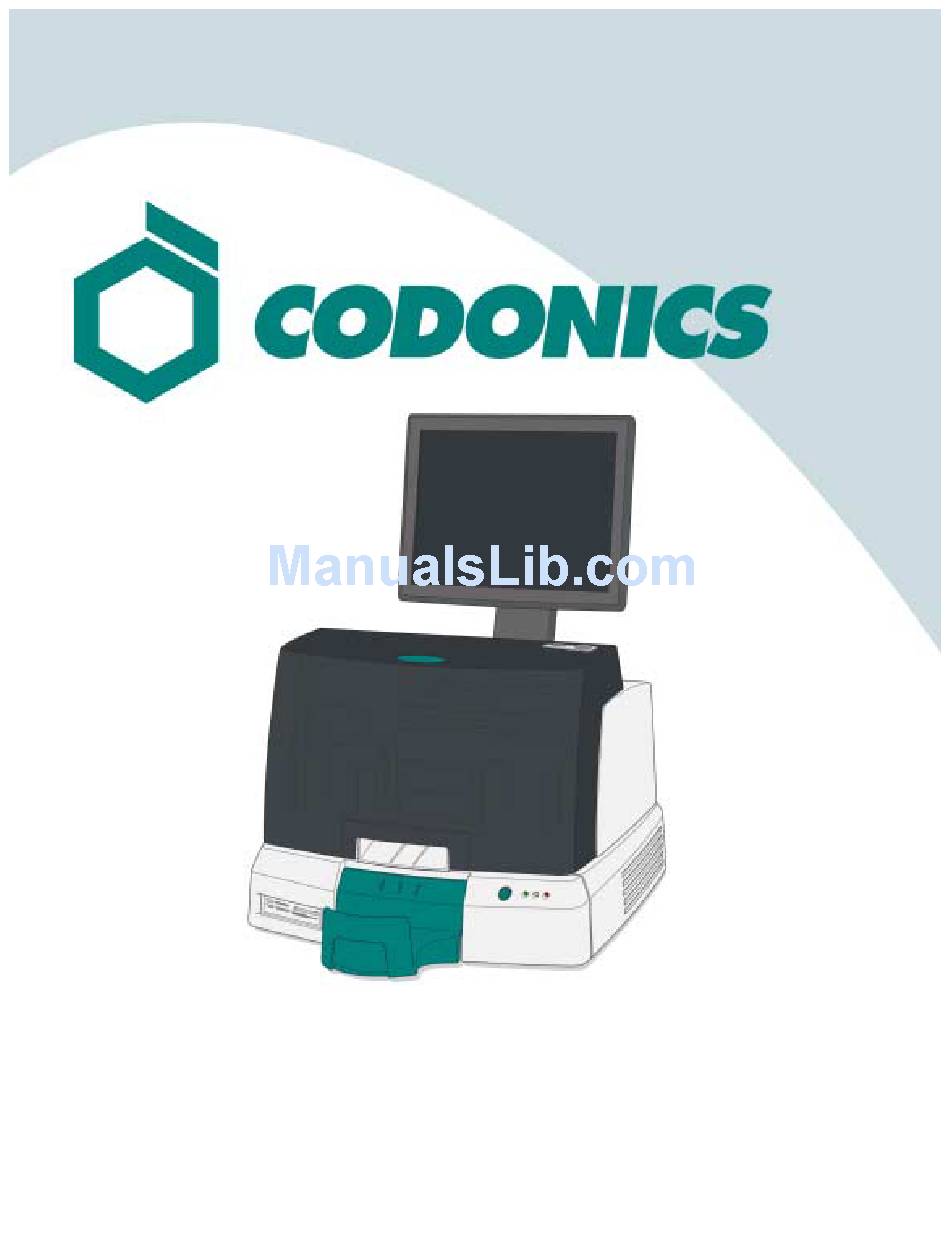

  • Page 1 Virtua Reference Guide...

  • Page 2: Table Of Contents

    Table of Contents Components ............................2 Assembly ..............................6 Startup ..............................13 Shutdown .............................. 14 Media Loading ............................15 Configuration ............................18 DICOM Host Setup ..........................26 Software Installation ........................... 27...

  • Page 3: Components

    Components 1. Display 4. Recorder 2. Display Arm 5. Controller 3. Front Cover 6. Output Bin Virtua Reference Guide...
  • Page 4 7. Ink Carriages 10. Ink Cartridge Load Button 8. CD/DVD Recorders 11. Robotic Disc Transporter 9. Eject Ramp 12. Printer Tray 13. Input Bins 14. Controller Soft Power Button 16. Status Indicators 15. Flash card reader/USB-2 Port 17. SmartDrive USB Port 18.
  • Page 5 19. Display/exit on-screen menus 21. Contrast and Brightness Settings 20. Menu up and down 22. Power Switch 23. Voltage Selection Switches 24. Power Input Ports (VIRTUA-1-PS1 model only) 25. Hard Power Switches Virtua Reference Guide...
  • Page 6 26. VGA connector 29. Display Fuse 27. USB 2.0 connectors 30. Display Power connector 28. Ethernet connector 31. Recorder USB 2.0 Connector...

  • Page 7: Assembly

    Assembly Place Controller on solid level surface Remove cardboard insert (Remove foam piece if present) Virtua Reference Guide...
  • Page 8 Place Recorder on Controller (Note offset to avoid finger pinch) Center Recorder on Controller...
  • Page 9 Assemble Display by attaching Display Arm to the Display using the 4 thumbscrews Attach Display Arm with Thumbscrews to Controller Virtua Reference Guide...
  • Page 10 Tighten Thumbscrews with fingers Attach Display cables (VGA, USB, Power) Connect the DC Power, USB and VGA cables from the Display Arm to the Display Ports...
  • Page 11 Attach Recorder USB cable Set 115V/230V Voltage Selector Switch (Voltage Selector Switch on VIRTUA-1-PS1 model only) Virtua Reference Guide...
  • Page 12 Connect “Y” power cable (Ferrite on VIRTUA-1-PS1 model only) Install SmartDrive...
  • Page 13 Install Output Bin Install Input Bins Virtua Reference Guide...

  • Page 14: Startup

    Startup 1. Set Power Switches ON (Top power switch first) 2. Press Controller Soft Power Button 3. Wait 3 minutes for startup to complete...

  • Page 15: Shutdown

    Shutdown 1. Touch Log Out button 2. Touch Shutdown button 3. Touch Shutdown button 4. Wait 1 minute for shutdown to complete Virtua Reference Guide...

  • Page 16: Media Loading

    Media Loading 1. Press Ink Cartridge Load Button 2. Open Ink Carriage (Color Shown)
  • Page 17 3. Remove Ink Cartridge Tape 4. Install Ink Cartridge (Color shown) Virtua Reference Guide...
  • Page 18 5. Close Ink Carriage (Color shown) 6. Load discs (white side up)

  • Page 19: Configuration

    On Screen Keyboard allows character input from Display. 1. Touch characters 2. Displays typed characters 3. Press OK when done Log In 1. Touch Username field. Type “admin” 2. Touch Password field. Type “codonics” 3. Touch Log In Virtua Reference Guide...
  • Page 20 Set Network 1. Touch Setup button 2. Touch Network tab 3. Touch Static button 4. Enter IP Address 5. Enter Subnet Mask 6. Enter Gateway 7. Touch Save button...
  • Page 21 Set Date & Time 1. Touch Setup button 2. Touch Date & Time tab 3. Enter Date 4. Enter Time 5. Touch Save button Virtua Reference Guide...
  • Page 22 • Insert SmartDrive in Controller • Power-on Controller Sample file: site.default.txt [ SiteProfile ] siteProfileName = default address0 = Codonics Imaging Center address1 = 17991 Englewood Drive address2 = Suite D address3 = Middleburg Heights, OH 44130 customLabelFileLocation = defaultImagerProfile =...
  • Page 23 Set User Password 1. Touch Setup button 2. Touch User tab 3. Select User Name 4. Enter Password 5. Confirm Password 6. Set Administrator mode (optional) 7. Touch Save button Virtua Reference Guide...
  • Page 24 Record Studies 1. Touch Studies button 2. Touch Studies tab 3. Select Filter 4. Select Studies 5. Touch Record button...
  • Page 25 Record Studies (continued) 6. Touch Edit Options button Record Studies (continued) 7. Select Label 8. Select Viewer 9. Set Make Auto-Run (optional) 10. Select number of copies 11. Touch OK button Virtua Reference Guide...
  • Page 26 Record Studies (continued) 12. Touch OK button to record disc...

  • Page 27: Dicom Host Setup

    DICOM Host Setup Host settings for storing DICOM studies to Virtua. AE Title TCP Port Description AUTO Automatically record studies. MANUAL Place studies in Study List for manual recording. Virtua Reference Guide...

  • Page 28: Software Installation

    Software Installation 1. Power-off Controller. 2. Open bottom drive tray...
  • Page 29 3. Place “Operating Software” disc in bottom drive tray. 4. Close bottom drive tray. 5. Power-on Controller. 6. Wait 45 minutes for software to install. 7. Remove “Operating Software” disc from bottom drive tray. 8. Close bottom drive tray. Virtua Reference Guide...

  • Page 30: Troubleshooting

    Large jobs with many images are being processed. Multiple remote web connections are active. All registered and unregistered trademarks are the property of their respective owners. Specifications subject to change without notice. Copyright © 2005-2007 Codonics, Inc. Printed in U.S.A. Part Number 900-348-002. Rev. D.
