www.farmiforest.fi

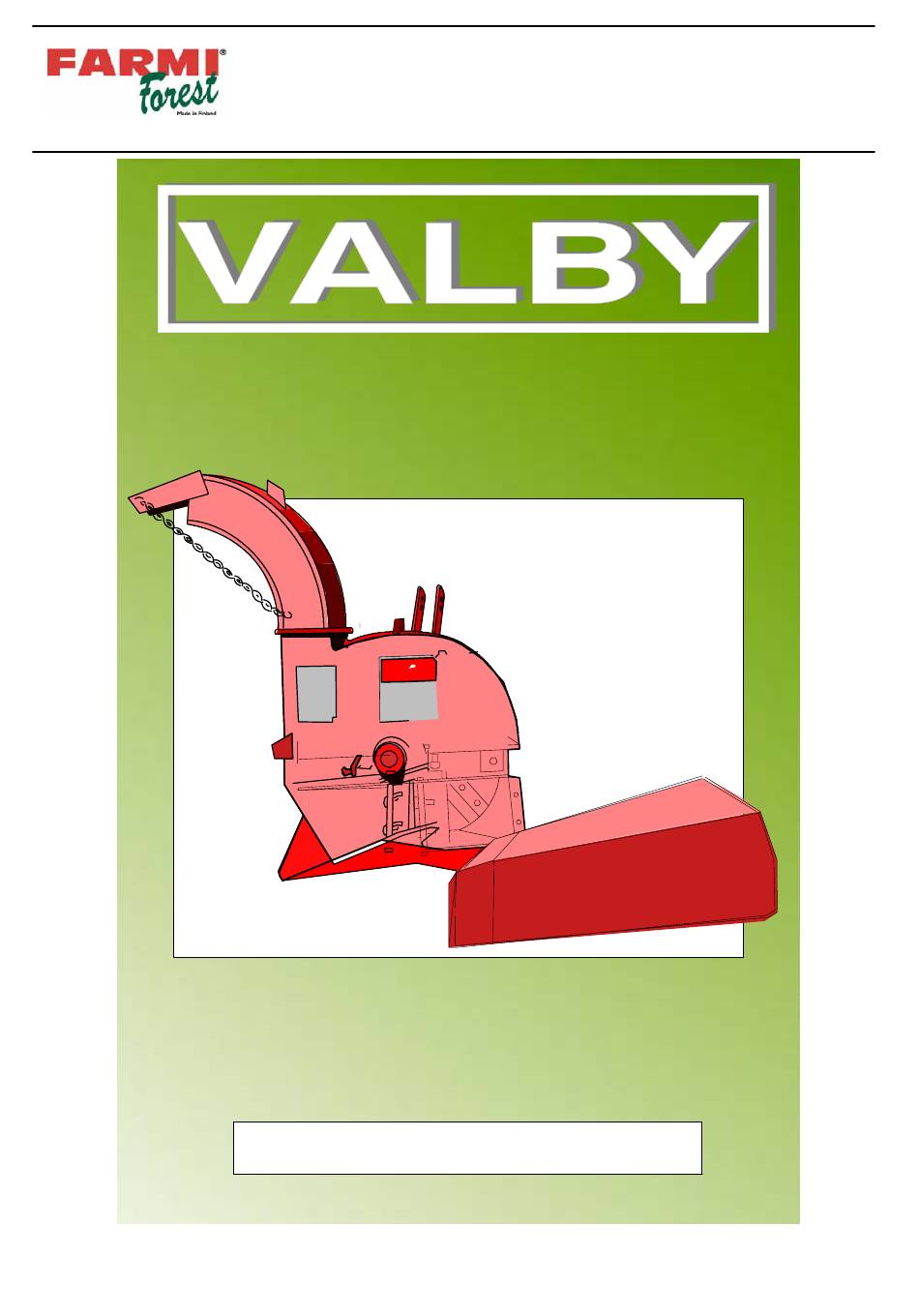

OPERATION, MAINTENANCE AND SPARE PARTS
CHIPPER CH140 L
From machine: 334 5011
03513990
It is very important to read this instruction
handbook thoroughly before using the machine!
Farmi Forest Corporation
Ahmolantie 6
FIN--- 74510 PELTOSALMI
FINLAND
Tel. +358 (0) 17 83 241
Fax. +358 (0) 17 8324 372
B ---USA ---110504 ---ER
CH140 L

Advertisement

Table of Contents
loading

Related Manuals for Farmi Forest VALBY CH140 L

Summary of Contents for Farmi Forest VALBY CH140 L

  • Page 1 OPERATION, MAINTENANCE AND SPARE PARTS CHIPPER CH140 L From machine: 334 5011 It is very important to read this instruction handbook thoroughly before using the machine! Farmi Forest Corporation Ahmolantie 6 FIN--- 74510 PELTOSALMI FINLAND Tel. +358 (0) 17 83 241...

  • Page 3: To The Owner

    CH140 L 1.TO THE OWNER---OPERATOR Thank you for purchasing a Farmi Forest Corporation product. Before we begin this manual, the people at Normet Corporation want you, the owner--operator , to know this piece of equipment can be very dangerous if safety procedures and warnings are ignored.

  • Page 4: Terms And Symbols Used In Instructions

    CH140 L 2.TERMS AND SYMBOLS USED IN INSTRUCTIONS Safety is a combination of operator common sense and alertness at all THINK times when the machine is being operated or serviced. SAFETY This message is used for general reminders of good safety practices or to direct attention to unsafe practices.

  • Page 5: Safety

    CH140 L 3.SAFETY 3.1.GENERAL SAFETY Do not operate this machine until you have read and understood the manual page by page. The owner of this machine is responsible for instructing all operators and support IMPORTANT! personnel in the operation and safety precautions of this chipper. Proper training prior to operating the chipper is obligatory.

  • Page 6: Safety Instructions For The Hydraulic Feeder And Feed Chute

    CH140 L 3.2.SAFETY INSTRUCTIONS FOR THE HYDRAULIC FEEDER AND FEED CHUTE D IMPORTANT! Always also read the general safety instructions. D IMPORTANT! Do not ever put any part of your body inside the feed chute! D Prior to operating get familiar with the function and controls of the machine. All functions must be in blameless condition.

  • Page 7: Table Of Contents

    CH140 L 1.TO THE OWNER ---OPERATOR ..........2.TERMS AND SYMBOLS USED IN INSTRUCTIONS .
  • Page 8 CH140 L 9.SAFETY MAINTENANCE AND SERVICE ........9.1.BEFORE LUBRICATION AND MAINTENANCE .

  • Page 9: Chipper Presentation

    CH140 L 4.CHIPPER PRESENTATION 4.3.MAIN COMPONENTS 4.1.FIELD OF APPLICATION 1. UPPER CHAMBER CH140 is a multi purpose chipper for processing 2. LOWER CHAMBER small---sized wood up to Ø 6,3” (160 mm). It produces 3. DISC uniform chips to be used as fuel. CH140 is a mobile, 4.

  • Page 10: Technical Data

    CH140 L 5.TECHNICAL DATA Output 5---20 m /h (177---706 ft Mean chip length 13 mm (1/2”) Max wood diameter 160 mm (4 ”) Power demand 10---40 kW (15---40 H.P .) Tractor PTO speed 540---1000 RPM Number of knives 2 pcs. Power source Tractor or hydraulic motor Mounting...

  • Page 11: Plates And Stickers For The Chipper

    CH140 L 5.2.PLATES AND STICKERS FOR THE CHIPPER Do not remove any plate or sticker placed by the IMPORTANT! manufacturer on the chipper or the accessories. Replace missing ones immediately. You can order them as a spare parts.
  • Page 12 CH140 L 1 pc 30140602 1 pc 41011750 1 pc 41014310 3 pc 40142080 1 pc 41014170 1 pc 41014140 1 pc 40141160 1 pc 41015750...
  • Page 13 CH140 L 5 pc 41014270 2 pc 41014110 1 pc 30141147 43513680 Plates and stickers for chipper CH 140 Part Order no. Description Qty..30140602 ..VALBY---sticker ........... . .

  • Page 14: Traffic On Public Roads

    CH140 L 6.TRAFFIC ON PUBLIC ROADS Always check before lifting that the lifting equipment is in order and use the marked lifting points, Prior to every procedure always IMPORTANT! whenever possible. Always use CAUTION! recall general safety proper lifting equipment and check instructions given in chapter 3.

  • Page 15: Mounting The Extension Plate

    CH140 L D Look inside feedchute to ensure that it is empty. D Make sure that all shields are in place and intact. Removal of the shields is prohibited! D Direct the discharge chute in desired position. 7.3.MOUNTING THE EXTENSION PLATE D If better stability is needed, use the extension plate.

  • Page 16: Operating The Chipper 8.1.Safety When Operating

    CH140 L 8.OPERATING THE CHIPPER 3. Check for the free rotation of the disk by turning the chipper axle by hand. Also check for any foreign object 8.1.SAFETY WHEN OPERATING in the chipper and the feed chute. Prior to any procedure also 4.

  • Page 17: Reducing The Power Required

    CH140 L If a wood jams inside the chipper, cut the Interchange cutting engine, remove the keys and wait for all counterweight knives at times to movements to stop before reaching inside the ensure that they are equally much feed chute. worn and sharpened, and the disk IMPORTANT! stays in balance.

  • Page 18: Safety Maintenance And Service

    CH140 L 9.SAFETY MAINTENANCE AND SERVICE Prior to any procedure also recall the general safety instructions in chapter 3. Use only original spare parts. IMPORTANT! Observe common safety practice. Before performing lubrication work on any equipment, consult the WARNING! manufacturer’s instruction manual and follow the recommended procedures.

  • Page 19: Before Lubrication And Maintenance

    CH140 L 9.1.BEFORE LUBRICATION AND 9.2.1.LUBRICATING THE BEARINGS MAINTENANCE The bearings are factory---greased with Shell Alvania Grease R 3. Use a similar lubricant, such as Kendall Always disengage the PTO and L427. IMPORTANT! Too much grease will cause heat, turn the tractor OFF before you which reduces lubrication.

  • Page 20: Bearings

    CH140 L 9.3. BEARINGS 9.3.1.REPLACING THE BEARINGS h=12.7 7. Remove the fastening bolts M10 (7) and the upper bearing housings (6). 8. Mark the location of the tightening cone on the shaft. 9. Lift the disk. 10.Bend the claw of the securing ring (3) out from the notch on the axle nut and open the axle nut.

  • Page 21: Adjusting The Bearing Clearance

    CH140 L 9.3.2.ADJUSTING THE BEARING CLEARANCE 1. Remove the fastening bolts (M10) (7) and the upper bearing housings (6). 2. Remove the grease from the bearing housing. 3. Lift the disk. 4. Bend the claw of the securing ring (3) out from the notch on the axle nut and open the axle nut.

  • Page 22: Changing The Splined Axle

    CH140 L 9.4.CHANGING THE SPLINED AXLE IMPORTANT! Only a qualified person is allowed to 7.Grind a 7/16” (11 mm) deep groove about 11/16”” (17 change the splined axle. mm) from the edge of the axle, fig.19. 8.Turn the axle so that it comes loose and can be 1.Disengage the PTO, cut the engine and remove the removed.

  • Page 23: Knives And Anvils

    CH140 L 9.5.KNIVES AND ANVILS ROTATING KNIVES! Wait for all movement to stop before reaching Lock bolt inside the feed chute. DANGER! The disk continues rotating by flywheel momentum after been disengaged. Use protective gloves when handling the knives. Failure to follow safety precautions could result in serious personal injury or death.

  • Page 24: Adjusting The Clearance Between The Knives And The Horizontal Anvil

    CH140 L after every 5 to 10 sharpening, when the clearance between the knife and anvil exceeds 1,5 mm or 1/17”. 11.Reassemble 9.5.2.ADJUSTING THE CLEARANCE BETWEEN THE KNIVES AND THE HORIZONTAL ANVIL Normally you can sharpen the knives 10 times before the anvil needs to be adjusted.

  • Page 25: Sharpening The Anvil

    CH140 L 9.5.3.SHARPENING THE ANVIL If you notice wear or rounding of the inner edge of the anvil, sharpen the anvil so that original angles are retained. 9.6.TIGHTENING THE BOLTS D The tightness of fasteners and the bolts in the chipper must be checked once a week. IMPORTANT! On a new machine check the tightening after one hour of use.

  • Page 26: Storing And Discarding

    CH140 L 10.STORING AND DISCARDING 11.CRIME PREVENTION D Contact local authorities and / or your retailer. 10.1. STORING THE CHIPPER D If a theft occurs, notify the law enforcement agency having jurisdiction insurance carrier D If the chipper is to be stored for a longer period, cover immediately.

  • Page 27: Discharge Pipe

    CH140 L Discharge pipe 03514630 Part Order no. Description Remarks Qty..03514630 ..Discharge pipe, complete ..43514600 ..Discharge pipe ........... .

  • Page 28: Ch140 L Chipper

    CH140 L CH140 L Chipper 56.4 56.3 56.2 56.1...
  • Page 29 CH140 L CH140 L Chipper Part Order no. Description Remarks Qty..43345020 ..Lower housing ........... .
  • Page 30 CH140 L CH140 L Chipper 56.4 56.3 56.2 56.1...
  • Page 31 CH140 L CH140 L Chipper Part Order no. Description Remarks Qty. 52060241 ..Screw ......M10x35 DIN933 .

  • Page 32: Bearing, Feeder Side

    CH140 L Bearing, feeder side Part Order no. Description Remarks Qty..54513569 ..End plate ............

  • Page 33: Bearing, Splined Axle Side

    CH140 L Bearing, splined axle side Part Order no. Description Remarks Qty..52334232 ..Seal ......Order no.

  • Page 34: F150 Mechanical Feed Chute

    CH140 L F150 Mechanical feed chute Part Order no. Description Remarks Qty..03342151 ..Feed chute ............
  • Page 35 CH140 L...
  • Page 37 If the operators manual was lost, a new manual can be obtained from importer (write address below or call 607---589---6160). NORTHEAST IMPLEMENT CORP . 476 Halsey valley Road SPENCER, NEW YORK 14883 FARMI Forest Ahmolantie 6 FIN---74 510 PELTOSALMI FINLAND...
  • Page 38 Date of delivery: ____ /____ 20____ Dealer: Dealer’s address: Dealer’s tel: Product: Serial number: Return to the manufacturer Date of delivery: ____ /____ 20____ Dealer: Dealer’s address: Dealer’s tel: Customer: Customer’s address: Customer’s tel: Product: Serial number: Notes:...
