Design Information; Models Available; Cutout & Product Dimensions; Optional Accessories - GE Monogram Installation Instructions Manual

ZDI15, ZDIS15
Models
Available in black, white and stainless steel.
Available

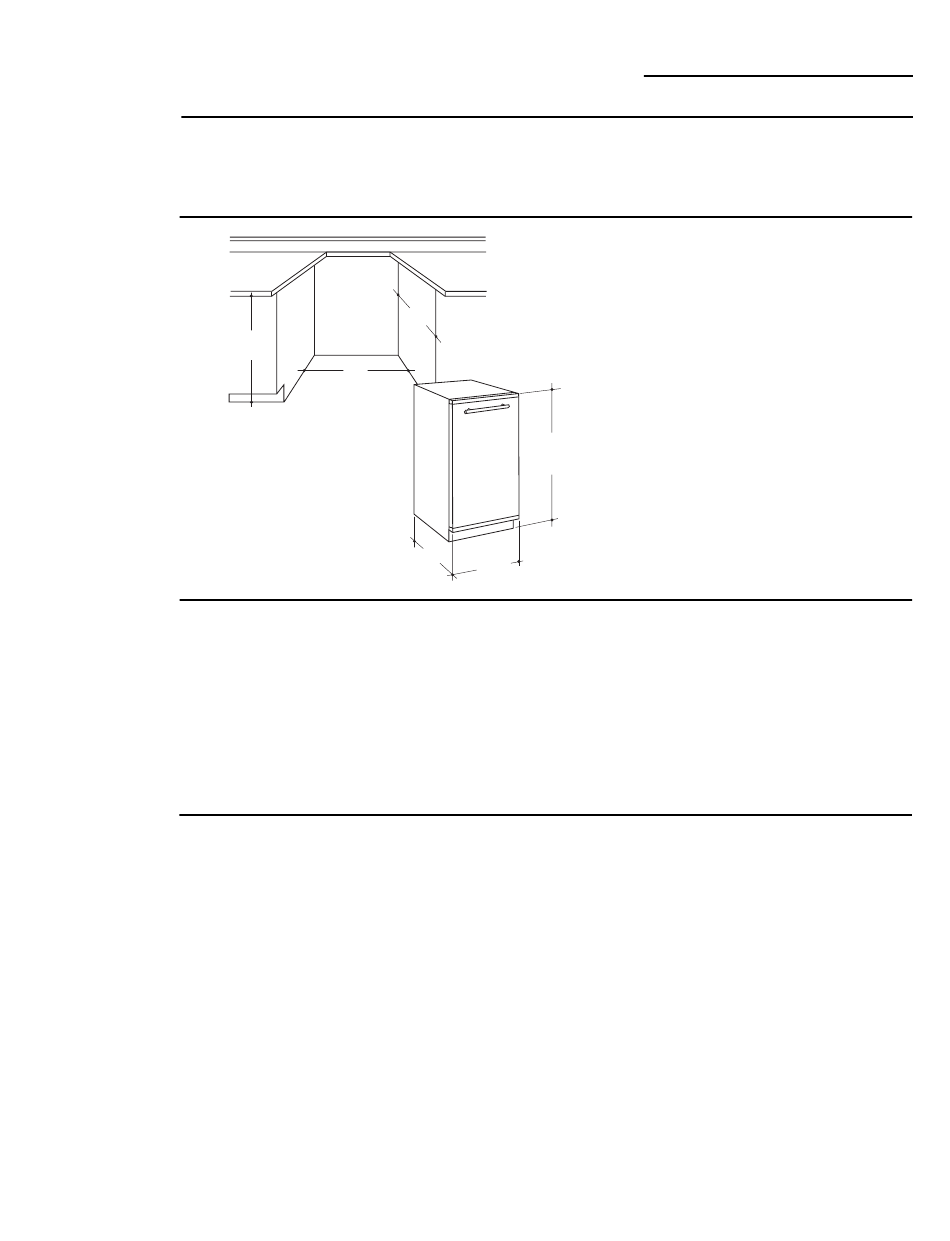

Cutout &
Product
Dimensions
ZIP75WW White and ZIP75BB Black – For the
Optional
installation of a trimless 3/4" thick custom
Accessories
panels on white and black models. (Not for
stainless steel models.) A custom handle of
your choice may be installed onto the 3/4"
panel. See installation instruction page 9.
ZPK1 – Drain Pump Kit. For use when a floor
drain is not available.
• 1/4" socket
Tools and
• 3/4" adjustable wrench
Materials
• Level
• 1/4" OD copper tubing, length to reach the installation
Required
24"
min.
34" to
34-1/2"
15"
23-5/16" to
Door Front

Design Information

The ice machine may be installed below a
countertop or used free-standing.
Cutout dimensions shown allow for a full door
swing. When installing a 3/4" thick custom
door panel, additional clearances at the sides
may be required.
Frameless Cabinets:
• If installing between frameless cabinets, a
1/2" filler strip or side panel may be required
on the hinge side. The filler strip will act as a
spacer between the door case and adjacent
cabinet and will prevent interference with
34" min.
Adjustable
icemaker door swing. The width of the
to 34-1/2"
opening must include filler or side panel
thickness.
Note: The addition of a 3/4" thick front panel will
result in a front to back depth of 24-1/16".
14-13/16"
Automatic Icemaker
3
