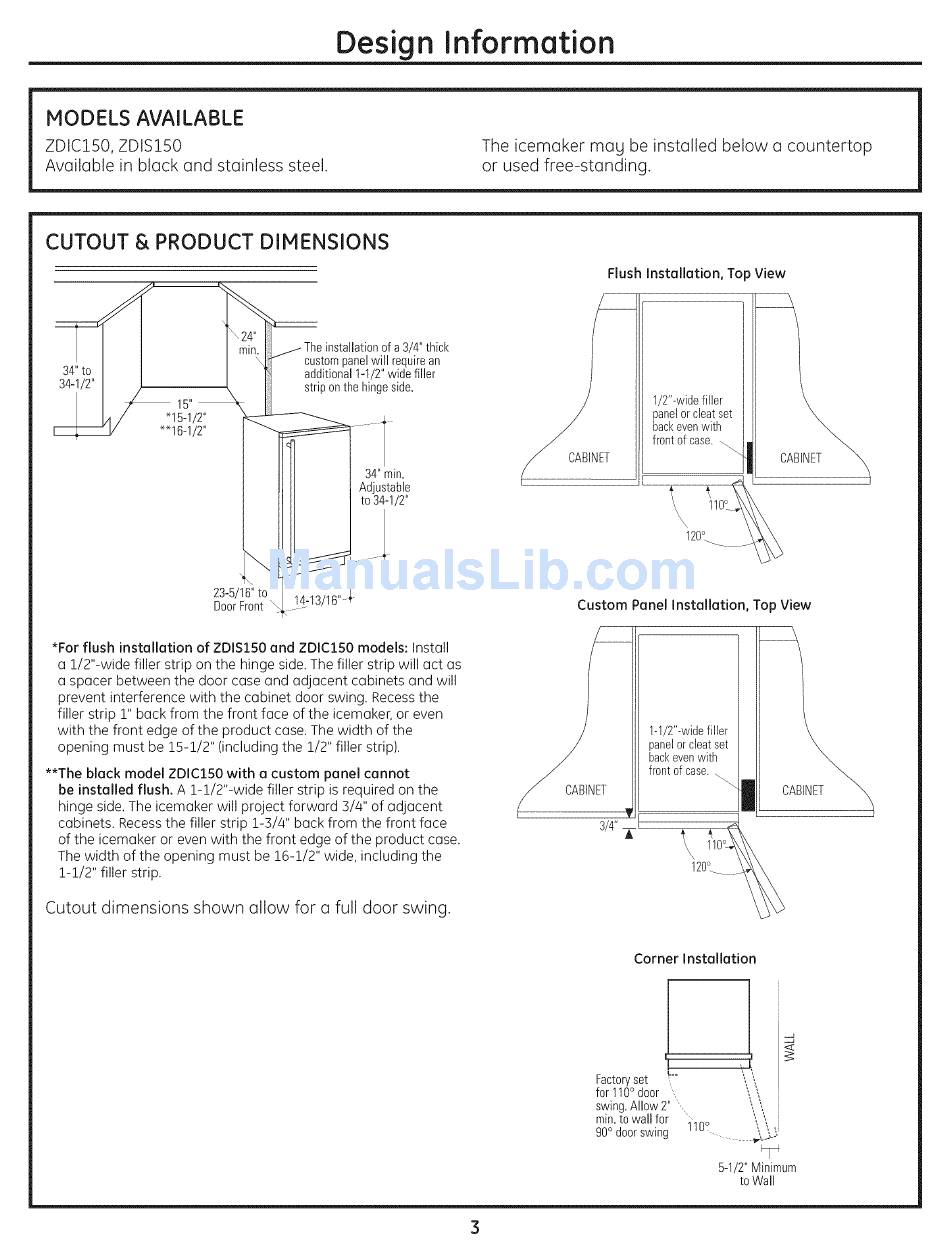

Design Information
MODELS AVAILABLE
ZDIC150, ZDIS150 The icemaker may be installed below a countertop
Available in black and stainless steel, or used free-standing.
CUTOUT & PRODUCT DIMENSIONS
34" to
34-1/2"
15 X,
"15-1/2"
*'16-1/2"
./The installation of a 3/4" thick
custompanel will requirean
additional 1-1/2"wide filler
strip on the hinge side.
34" rain.
Adjustable
to 34-1/2"
Flush Installation, Top View
1/2"-wide f iller
panel or cleat set
back even with
frontofcase.\
CABINET
23-5/16"to
DoorFront \
Custom Panel Installation Top View
*For flush installation of ZDIS150 and ZDIC150 models: Install
a !/2"-wide filler strip on the hinge side. The filler strip will act as
a spacer between the door case and adjacent cabinets and will
prevent interference with the cabinet door swing. Recess the
filler strip !" back from the front face of the icemaker, or even
with the front edge of the product case. The width of the
opening must be !5-!/2" (including the !/2" filler strip).
**The black model ZDIC150 with a custom panel cannot
be installed flush. A !-!/2"-wide filler strip is required on the
hinge side. The icemaker will project forward 3//4" of adjacent
cabinets. Recess the filler strip 1-3/4" back from the front face
of the icemaker or even with the front edge of the product case.
The width of the opening must be !6-!/2" wide, including the
!-!/2" filler strip.
Cutout dimensions shown allow for a full door swing.
3/4" --
A
1-1/2"-widefiller
panelor cleatset
backevenwith
front of case.
CABINET
Corner Installation
I
Factory set t
for110 ° door ',,
swing. A llow2" ",,
min.towallfor '",
90 ° doorswing
\\ i
o ; i
110 ', ',u
5-1/2" Minimum
to Wall
