Setting Parameters:
The editable parameters are those between 504 and 652. Proceed as follows to access
these parameters:

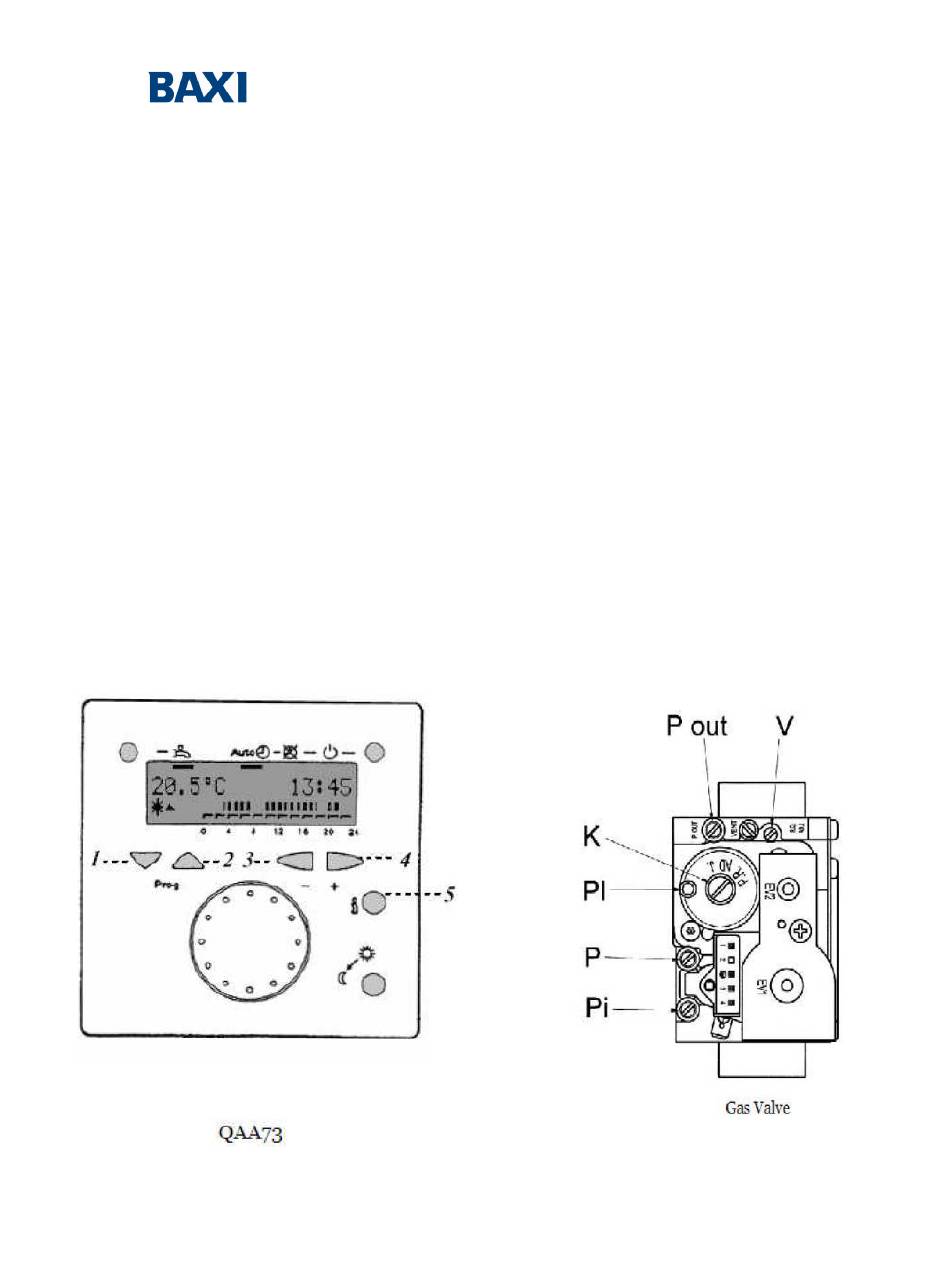

1. Simultaneously press keys 1 and 4 on the QAA73 controller for
approximately 3 seconds. The message "Initializing BMU parameters"
appears on the display.
2. Simultaneously press keys 1 and 2 for approximately 3 seconds. Parameter
504 will appear on the display.
3. Press key 1 or 2 to scroll through the list of parameters.
4. To change the value of a selected parameter, press key 3 or 4 to decrease or
increase the value respectively.
5. Press key 5 to enter the new values and exit programming of the boiler.
B
L
HT 1.650 S
AXI
UNA
ETUP
Luna HT 1.650 Setup Natural Gas
N
G
ATURAL
AS
Advertisement
Related Manuals for Baxi Luna HT 1.650
Summary of Contents for Baxi Luna HT 1.650
- Page 1 Luna HT 1.650 Setup Natural Gas Setting Parameters: The editable parameters are those between 504 and 652. Proceed as follows to access these parameters: 1. Simultaneously press keys 1 and 4 on the QAA73 controller for approximately 3 seconds. The message “Initializing BMU parameters”...
-
Page 2: Calibration Mode
Luna HT 1.650 Setup Natural Gas ALIBRATION Proceed as follows to enter “calibration mode” on the boiler control panel and calibrate the gas value: 1. Turn the control knobs 6 and (fig. 1) 7 fully counter-clockwise to their minimum positions as shown below. - Page 3 Luna HT 1.650 Setup Natural Gas Resetting the HT 1.650 for Natural Gas The following must be performed before calibrating the gas valve. 1. Turn the adjusting screw, or “V” screw (2.5 mm hex) on the gas valve all the way clockwise until the “V”...
- Page 4 Before lighting Boiler The following must be performed before calibrating the gas valve. 1. Turn the adjusting screw, or “V” screw (2.5 mm hex) Five complete revolutions clockwise. 2. On the QAA73 controller, which is connected to terminals 4 & 5 on the M2 bus terminal, set parameters 608 to 24% and parameter 611 to 2000 rpm.
- Page 5 Luna HT 1.650 Setup Propane ALIBRATION Proceed as follows to enter “calibration mode” on the boiler control panel and calibrate the gas value: 1. Turn the control knobs 6 and (fig. 1) 7 fully counter-clockwise to their minimum positions as shown below.
- Page 6 Luna HT 1.650 Setup Propane HT 1.650 S ETUP ROPANE...
-
Page 7: Advanced Parameters
DVANCED ARAMETERS Using the QAA73 temperature regulator, it is possible to enter into main board LMU34 parameters. En utilisant la commande distance QAA73 il est possible changer quelque param tres de la carte lectronique LMU 34. The editable parameters are those between 504 and 652 (parameters 650 and 652 are only reading parameters).
