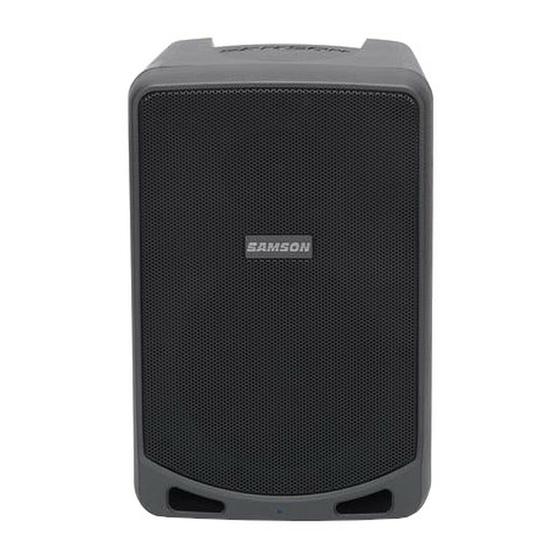

Samson EXPEDITION XP106 Owner's Manual

Portable pa with bluetooth
Hide thumbs Also See for EXPEDITION XP106:

Advertisement

Table of Contents

E PEDITION
XP106
PORTABLE PA
WITH
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPEDITION XP106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samson EXPEDITION XP106

Summary of Contents for Samson EXPEDITION XP106

  • Page 1 E PEDITION XP106 PORTABLE PA WITH Owner's Manual...
  • Page 2 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners.”...
  • Page 3 Important Safety Information AVIS RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “danger - ous voltage”...
  • Page 4 Important Safety Information Read these instructions. 13. Unplug the apparatus during lighten- ing storms or when unused for long Keep these instructions. periods of time. Heed all warnings. 14. Refer all servicing to qualified personnel. Service is required when Follow all instructions. the apparatus has been damaged in Do not use this apparatus near water.
  • Page 5 This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. Hereby, Samson Technologies Corp., declares that this XP106 and Stage XPD1 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at: http://www.samsontech.com/site_media/support/manuals/XP106_XP106W_DOC.pdf...

  • Page 6: Table Of Contents

    Table of Contents Introduction ......7 Features ......7 Control Panel Features .

  • Page 7: Introduction

    (with inputs for a microphone and line level devices), a line output for linking multiple speakers, and a Music/Speech tone switch. For added flexibility, the XP106 mixer has a USB jack for connecting the Samson Stage XPD1 digital wireless system, creating a completely cordless performance.

  • Page 8: Control Panel Features

    LEVEL (CHANNEL 2) - Used to control the level of the MP3 IN and LINE inputs. STAGE XPD1 WIRELESS* - Connect the Samson Stage XPD1 digital wireless USB receiver to this input. The wire- less receiver gets its power from the XP106, so no additional power supply is needed.

  • Page 9: Quick Start

    Quick Start Follow these steps below to quickly get started using your XP106 portable sound system. • Set the XP106's power switch to the OFF position, and fully turn all of the LEVEL controls counterclockwise to 0. • If an outlet is available, connect the included power adaptor to the DC IN of the speaker, and plug it into an AC socket.

  • Page 10: Pairing With A Bluetooth® Device

    The Bluetooth indicator will slowly flash blue. In the settings of your Bluetooth device, set it to “discover” available devices. From the Bluetooth device list, select the "Samson XP106" device. If your device asks for a passkey, enter digits 0000 (four zeros) and press OK.

  • Page 11: Charging The Battery

    24 hours. If you find that the operation time of the XP106 becomes noticeably decreased, even after fully charging, the battery should be replaced. Contact Samson customer service or your local distributor to order a replacement battery.

  • Page 12: Speaker Placement

    Speaker Placement The XP106 provides three different placement options for your specific situation. For maximum sound coverage the XP106 can be used with a standard 1 ⁄ ” speaker stand. The speaker should be raised above the heads of the listening audience.

  • Page 13: Quick Start - Stage Xpd1 Wireless System

    Quick Start - Stage XPD1 Wireless System Plug the RXD1 USB receiver into the USB jack labeled STAGE XPD1 WIRELESS. On the belt pack transmitter, open the bottom section of the microphone. Place a fresh set of AA (LR6) batteries in the transmitter battery holder, taking care to observe the polarity markings, then close the cover.
  • Page 14 Quick Start - Stage XPD1 Wireless System If the transmitter and receiver have not been previously paired, press and hold the button on the RXD1 receiver for >5 seconds, until it begins to flash. Press and hold the Power button on the belt pack transmitter >5 seconds.

  • Page 15: Stage Pxd1 Belt Pack Transmitter Controls

    Stage PXD1 Belt Pack Transmitter Controls Input Connector - Connect the input device via the mini-XLR connector. The PXD1 is supplied with either a lavalier or headset microphone. Status Indicator - This LED displays the operation mode: Amber: Normal Operation Flashing Amber: Pairing/Low Battery Power/Pair Switch - Press <5 seconds to turn the unit on or off.

  • Page 16: Using The Line Out Jack

    Using the LINE OUT Jack The XP106 LINE OUT jack allows you to connect the XP106 with any powered speaker to expand your system or link two XP106 systems together and share all inputs between the two units. You can also use the jack to receive audio from another speaker without using an input channel.

  • Page 17: Making Connections

    Making Connections MP3 Player, Portable Audio Microphone, Instrument*, Line Level Device Stage XPD1 Wireless System SIGNAL FLOW Instrument*, Keyboard, Drum Machine SIGNAL FLOW SIGNAL FLOW SIGNAL FLOW Paired Bluetooth Device LINE OUT * An active preamp is needed in order to use acoustic instru- ments with the XP106.

  • Page 18: Xp106 Specifications

    XP106 Specifications Power Output ... . . 100 watts Frequency Response ..75 Hz to 15kHz +/-3dB Mic/Instrument Input ..XLR / ¼" combo connector Line Input .

  • Page 19: Stage Xpd1 Specifications

    Stage XPD1 Specifications Simultaneous Systems ..2 Working Range ... . . 100' line of sight Working Frequency ... 2.404~2.476GHZ Modulation type .
  • Page 20 Samson Technologies 278-B Duffy Ave Hicksville, NY 11801 Phone: 1-800-3-SAMSON www.samsontech.com...
